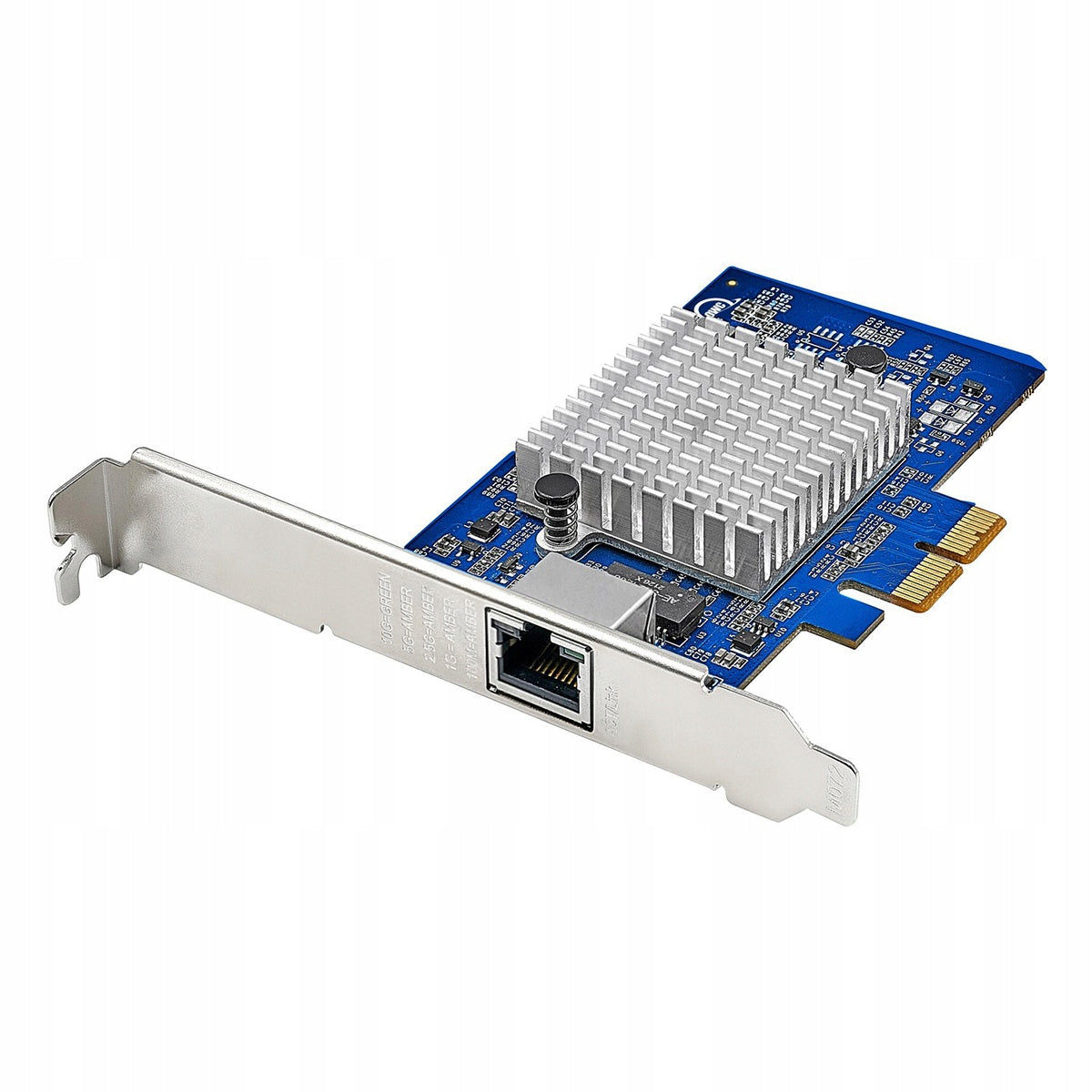

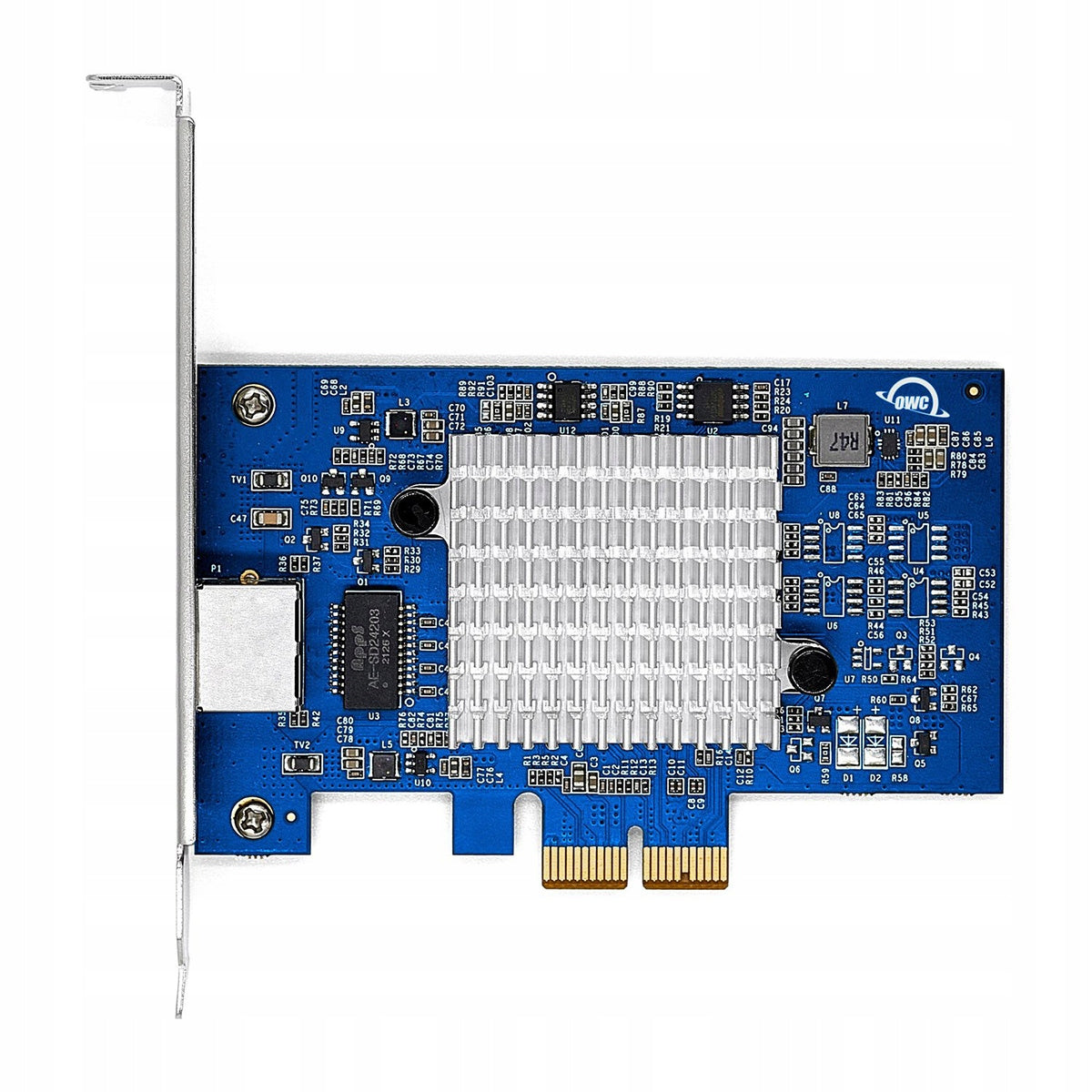

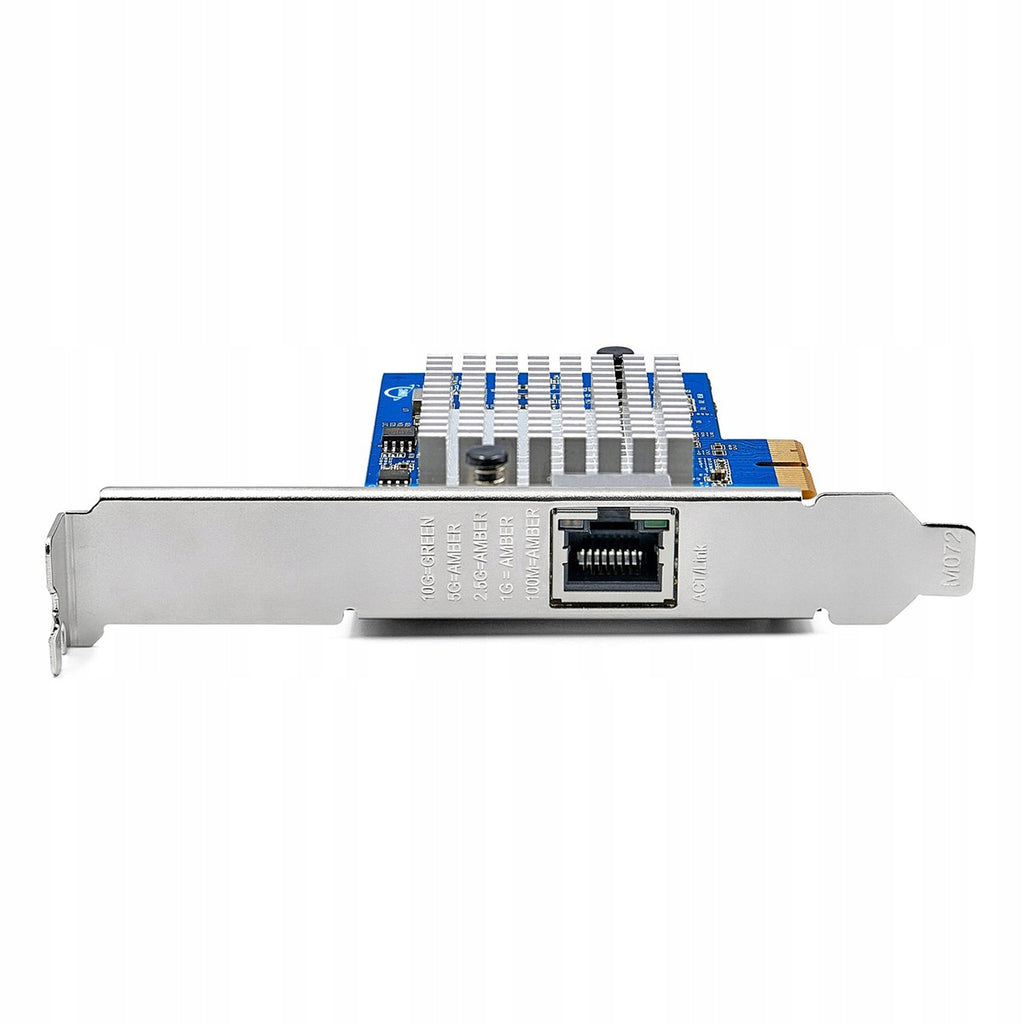

Tinklo plokštė OWC 10GbE PCIe, RJ45, suderinama su macOS, Windows, Linux, FreeBSD

Trumpai apie prekę

Prekė: Tinklo plokštė OWC 10GbE PCIe, RJ45, suderinama su macOS, Windows, Linux, FreeBSD. Kategorija: Tinklo plokštės.

• Gamintojas: OWC
• Modelis: OWCPCIE10GB

The OWC 10GbE PCIe network card allows you to download and save files at an actual, tested speed of over 900 MB/s, i.e. Up to 10 times faster than a standard 1 Gbps network card. The card complies with AVB standard and Jumbo Frame technology.

100% compatible with macOS and can be directly installed on your Apple Mac Pro

Access to high-speed Ethernet wherever you want!

• Incredible speed: more than 900 MB/s! – tested in real conditions for large file transfer speeds, video editing and live game sessions
• Use with Mac Pro or Windows computer with free PCIe slot
• Versatility: cable distance up to 100 meters with Cat6a for 10G, Cat6 for 5G and Cat5e for 2.5G
• Intelligence: Supports automatic negotiation of 10Gb/s, 5Gb/s, 2,5Gb/s, 1Gb/s and 100Mb/s Base-T Ethernet standards
• Availability: Wake-on-LAN readiness for remote access to your computer at home or at work
• AVB compatibility: ideal for use in professional audio and video applications where data stream synchronization is critical
• Cost-effectiveness: 2.5GBASE-T and 5GBASE-T (formerly NBASE-T) technology provides up to 500% higher performance compared to existing cabling
• Energy Efficiency: Supports IEEE 802.3az for low power consumption of computer bus
• Heat efficiency: ventilated aluminum heat sink housing maximizes heat dissipation

  Silence: fanless, passive cooling dedicated to noise sensitive environments

• Durability: The rubber sleeve protects during portable use
• Ease of setup: Connect the included Thunderbolt 3 cable and connect to your network without additional drivers.

Highest transfer and backward compatibility

Connecting a OWC 10G PCIe network adapter to a Mac PRO or PC equipped with a free PCIe slot dramatically increases the speed of file transfer.

Now you can access 10GBASE-T 10Gb Ethernet networks and through it to other devices, such as Network Attached Storage (NAS) systems, to transfer large media files at speeds of over 900 MB/s in real time.

The card is backward compatible with other Ethernet standards, including 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-Tx, improving project performance and collaboration in the workgroup with the fastest network connection available.

Pro Audio Video AVB Redy

It transmits large amounts of data in a short time, such as Audio and video streams require hardware that supports Audio Video Bridging (IEEE 802.1Qav, AVB).

Don’t worry... the OWC 10Gb Ethernet card can stream huge amounts of high-quality data to multiple destinations in real time with very low latency via an existing network cable.

Key Features:

• Operating System:

  Apple Mac: from macOS 12.x Monterey

  PC: from Windows 8, Windows Server 2012, Windows Server 2016

• Other Requirements:

  Maceos 12.x or later required.

  Ethernet driver required for Windows

• Interface:

  PCIe 2.0, 3.0, 4.0

  10Gb Ethernet (RJ45)

• 10GbE controller: Marvell AQC113CS
• Network speed: 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s
• Features:

  Auto-negotiation

  Jumbo frames up to 16K

  Audio Video Bridging (AVB) – IEEE 802.1Qav

  Multicast filtering

  Interrupt coalescing

  Wake-on-LAN (WoL)

  Quality of Service (QoS)

  Flow control support

  IPv4,IPv6/TCP and IPv6/UDP checksum offload

  TCP Segmentation Offload (TSO) “Large Send Offload”

  Large Receive Offload (LRO)

  Receive-Side Scaling (RSS)

  Energy-Efficient – IEEE 802.3az

Specifications
