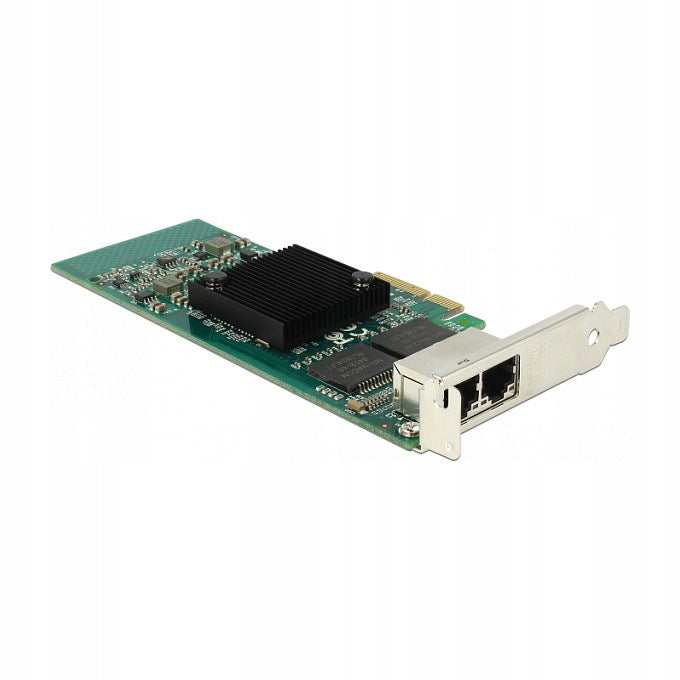

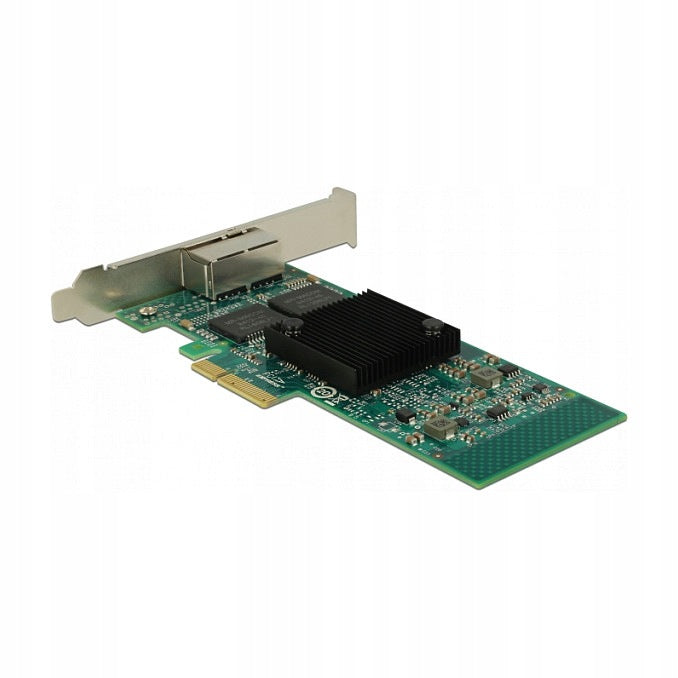

Tinklo plokštė Delock PCIe x4, 2x RJ45, Intel I350

Trumpai apie prekę

Prekė: Tinklo plokštė Delock PCIe x4, 2x RJ45, Intel I350. Kategorija: Tinklo plokštės.

• Gamintojas: Intel
• Modelis: 89945

Application and function

PCIe x4 network card designed for internal installation in desktop computers, providing a two-point Gigabit Ethernet connection using two RJ-45 connectors. It allows you to add or extend wired connectivity in systems that require stable data transfer.

Performance and connectivity

The card uses the Intel I350 controller and supports speeds up to 1000 Mbit/s on a 10/100/1000BaseT(X) port. It enables Gigabit Ethernet data transfer and supports Jumbo Frames extension up to 9000 bytes, which improves transfer efficiency for large data packets.

System compatibility

The host interface is PCI Express (PCIe 2.1 compatible), the card is designed to work in PCIe x4 or compatible slot. These operating systems supported in the sources are Windows 7, Windows 8, Windows 8.1 and Windows 10. The card supports commonly used networking standards, including IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3z.

Construction and features

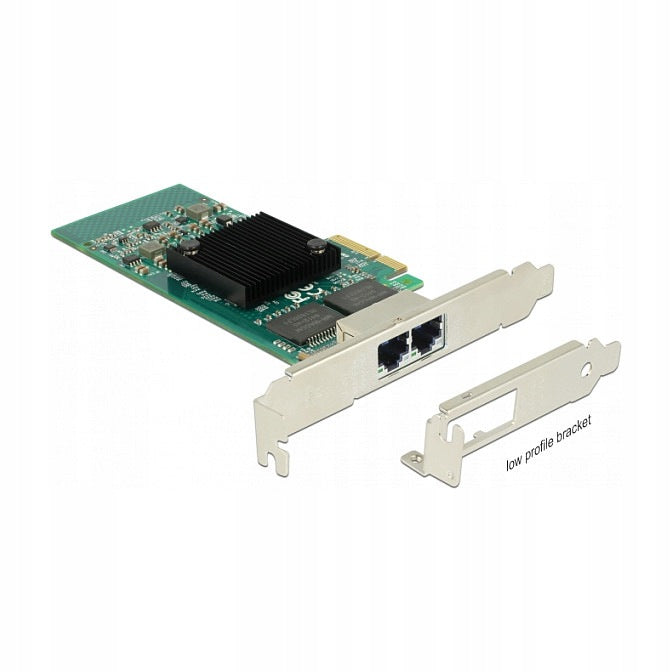

The product has an internal card design designed to be mounted in the computer housing; it is equipped with two RJ-45 ports located on the rear panel. The project focuses on stable wired network operation for office and server applications, providing basic network functions without additional external modules.

Specification

• Host Interface: PCI Express x4
• PCI version: 2.1
• LAN Controller: Intel® I350
• Wiring technology: 10/100/1000BaseT(X)
• Communication standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
