Tinklo lizdas RJ45/8P8C, cat.6A, ekranizuotas, LogiLink

Kaina:
€23,91
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Tinklo lizdas RJ45/8P8C, cat.6A, ekranizuotas, LogiLink. Kategorija: Jungikliai ir koncentratoriai.

  • Gamintojas: Logilink
  • Modelis: NP0025

Catalog No.: 42031

The supplier of plugs is the renowned German company LogiLink. The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www.stratos.pl/strony/42031.htm

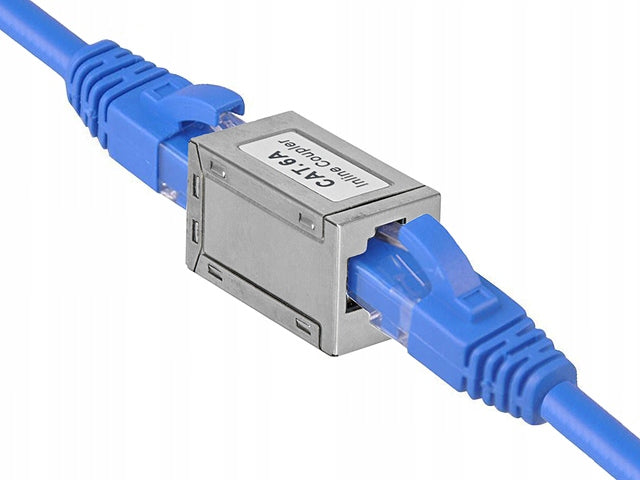

The offered connector is used to connect two STP (shielded) cables equipped with RJ45 plugs with transmission in the cat.6A standard (class EA - 500MHz) at a speed of up to 10Gb / s. Thanks to the connector, we can obtain a cable (patchcord) of a longer length. Another use of the connector is to replace the type of cable termination from male to female to connect the device terminated with an RJ45 plug.

Internal connections of the connector are made 1:1 i.e. In both sockets, pins with the same numbers are connected to each other - thanks to this, it is possible to accurately reproduce the pins of the connected wires. The internal connection diagram of the connector is presented in the image below:

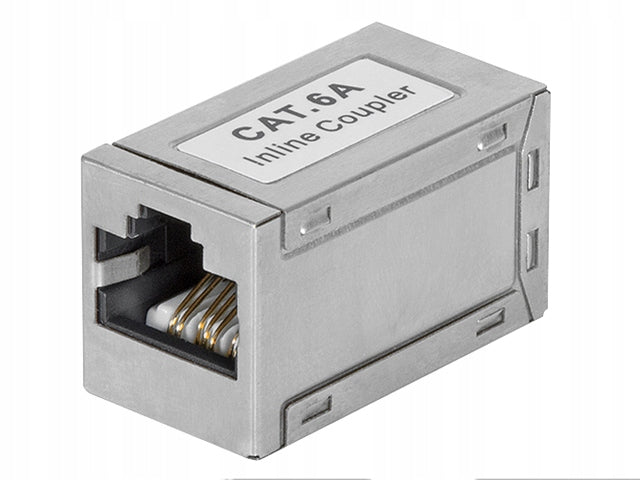

Both RJ45 sockets of the connector are fully shielded, the housing is made of nickel-plated brass sheet, thanks to which the continuity of shielding of the connected wires is maintained. The contacts are made of phosphor bronze covered with a layer of gold. A special feature of the connector are its small dimensions of only 15.8x17.8x30.5mm, which is sometimes desirable in the case of e.g. connecting wires in the installation trough. The design of the connector is presented below:

The connector meets ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) standards and meets both Gigabit Ethernet and 10 Gigabit Ethernet parameters.

  • Category: 6A (EA Class - 500MHz)
  • Material: housing - nickel plated brass sheet, contacts - gilded phosphor bronze
  • Connectors: 2x RJ45/8P8C female shielded socket
  • Internal connections: 1:1
  • Dimensions (length/width/height): 30.5/15.8/17.8mm
  • Weight: approx. 9g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer Logilink
Parametry Product weight with unit packaging 0.02 kg
Parametry Number of ports 2
Parametry EAN (GTIN) 5905247240415
Parametry Manufacturer code NP0025
Parametry Packaging status original
