Tinklo lizdas 2x RJ45 Cat.6A STP, įmontuojamas, DIGITUS

Trumpai apie prekę

Prekė: Tinklo lizdas 2x RJ45 Cat.6A STP, įmontuojamas, DIGITUS. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: DN-9007-S-1

Catalog No: 48941

The supplier of the item is the renowned German company DIGITUS. The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www.stratos.pl/strony/48941.htm

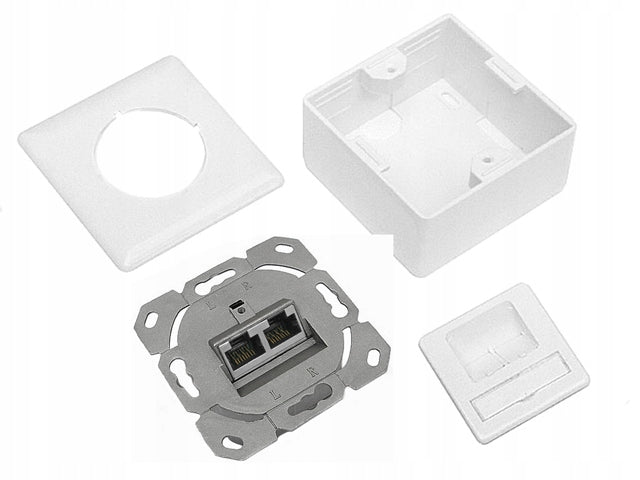

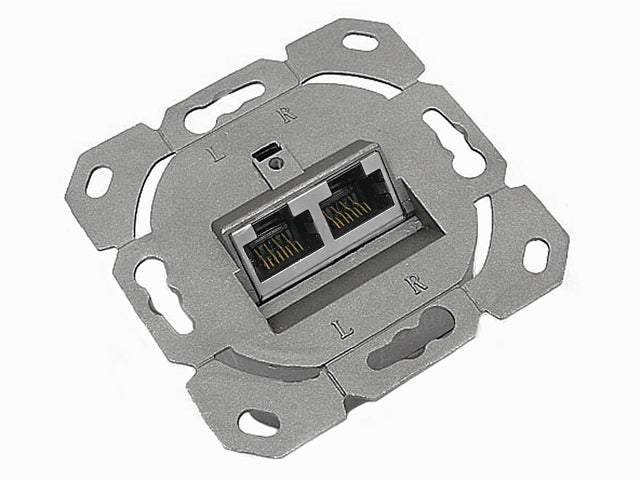

The offered item is a shielded wall socket with two in RJ45 cat.6 ports. The socket meets ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ standards and guarantees transmission at speeds up to 10Gb/s (500MHz band). Full metal socket cover and cable clamps ensure continuity of shielding. RJ45 modules are mounted at an angle of 45° and have tilting dust flaps. Embossing on the front cap is used to place a descriptive plate. The socket has a lid and a surface-mounted frame, so it is possible to mount the socket as a flush-mounted (to a typical 60mm electrical installation box) and as a surface-mounted one (using the attached frame).

The cable covers are located on both sides, so it is possible to supply wires on one side or the other. Printed color coding implemented according to the EIA/TIA 568A and 568B standards allows connection of twisted pair cables in both currently used standards.

RJ45 ports are equipped with connection contacts made according to the LSA / KRONE standard, so pressers of this standard should be used for pressing.

Attention! We offer a large selection of LSA pressers necessary for the correct connection of twisted pair to the offered RJ45 sockets. You can find in our offer by typing 'LSA pusher' in the field 'search in user objects'.

• Connectors: 2xRJ45 STP shielded female
• Housing color: white slightly falling into ivory
• Category: 6A, class EA, 10GBase-T
• Compliant with: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
• Bandwidth: 500MHz
• Contact Type: LSA/KRONE
• Contact colour coding: EIA/TIA 568A and 568B
• Socket dimensions with cap (width/height/depth): 80/80/49mm
• Mounting screw spacing: 60mm
• Frame dimensions (width/height/depth): 80/80/41mm
• Weight of the set (socket, caseback, frame): approx. 170g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
