Tinklo lizdas 2x RJ45 Cat.6 STP, įleidžiamas arba paviršinis, DIGITUS

Trumpai apie prekę

Prekė: Tinklo lizdas 2x RJ45 Cat.6 STP, įleidžiamas arba paviršinis, DIGITUS. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: DN-9006-N

Catalog No: 48949

The supplier of the item is the renowned German company DIGITUS. The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www.stratos.pl/strony/48949.htm

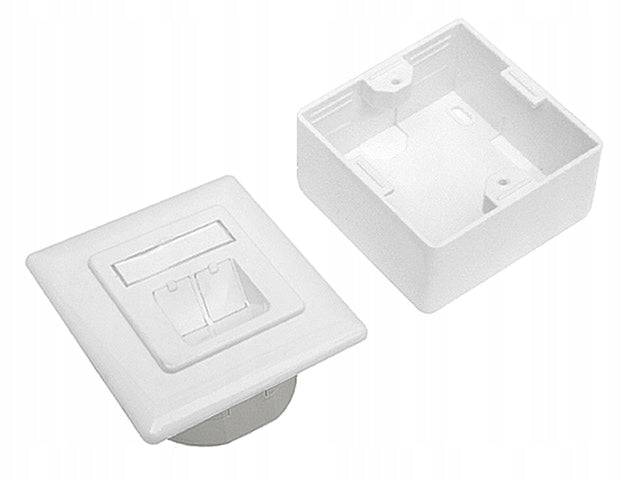

The offered item is a shielded wall socket with two in RJ45 cat.6 ports. The socket meets EIA/TIA 568 and ISO/IEC 11801 / EN 50173 standards and guarantees transmission frequency up to 250MHz. Full metal socket cover and cable clamps ensure continuity of shielding. RJ45 modules are mounted at an angle of 45° and have tilting dust flaps. Embossing on the front cover is used to place a descriptive plate. The socket has a lid and a surface-mounted frame, so it is possible to mount the socket as a flush-mounted (to a typical 60mm electrical installation box) and as a surface-mounted one (using the attached frame).

The cable covers are located on both sides, so it is possible to supply wires on one side or the other. Printed color coding implemented according to the EIA/TIA 568A and 568B standards allows connection of twisted pair cables in both currently used standards.

RJ45 ports are equipped with connection contacts made according to the LSA / KRONE standard, so pressers of this standard should be used for pressing.

Attention! We offer a large selection of LSA pressers necessary for the correct connection of twisted pair to the offered RJ45 sockets. You can find in our offer by typing 'LSA pusher' in the field 'search in user objects'.

• Connectors: 2xRJ45 STP shielded female
• Color: White
• Category: 6, EIA/TIA 568, ISO/IEC 11801 / EN 50173
• Bandwidth: 250MHz
• Contact Type: LSA/KRONE
• Contact colour coding: EIA/TIA 568A and 568B
• Socket dimensions with cap (width/height/depth): 80/80/49mm
• Mounting screw spacing: 60mm
• Frame dimensions (width/height/depth): 80/80/41mm
• Weight of the set (socket, caseback, frame): approx. 218g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
