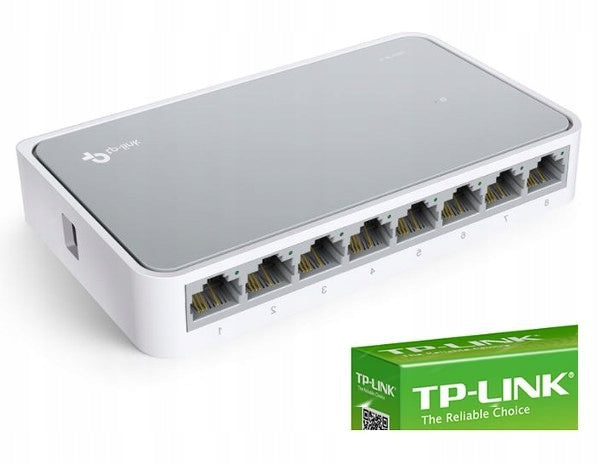

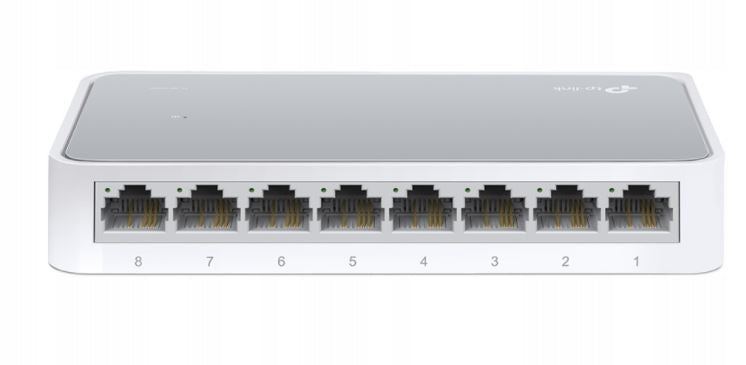

Tinklo komutatorius TP-Link TL-SF1008D, 8 prievadų, stalinis

Trumpai apie prekę

Prekė: Tinklo komutatorius TP-Link TL-SF1008D, 8 prievadų, stalinis. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 99617

DESKTOP SWITCH, 8 FAST ETHERNET PORTS

8-Port 10/100Mbps Plug & Play Switch!

It has the Auto MDI/MDIX function that allows the installer to forget about the problem of "straight" or "cross" connections.

The equipment is brand new, originally packed!

The TL-SF1008D is a Fast Ethernet network switch designed for home or office use (SOHO applications). Each of the 8 ports of the device has the function of automatic patching MDI/MDIX allowing for quick installation of the device without having to check the type of cables used. The TL-SF1008D switch is environmentally friendly, as it uses innovative technology to save up to 70%* of energy consumption.

High work efficiency

The TL-SF1008D switch has 8 RJ45 Fast Ethernet 10/100Mbps ports with automatic connection speed negotiation. Thanks to the MDI/MDIX function, there is no need for patch cables. The seamless network traffic switching architecture enables packet forwarding and filtering at full speed with maximum bandwidth. 10K jumbo frames increase the efficiency of transferring large amounts of data. The TL-SF1008D supports the bandwidth control standard for full duplex mode (IEEE 802.3x) and backpressure function for half duplex mode.

Box version - full set!

Contents of the Box

1. Original TL-SF1008D router
2. AC adapter
3. User manual in Polish

Green Technology TP-LINK

The next-generation TL-SF1008D Fast Ethernet switch uses the latest, innovative technology to increase network bandwidth with much greater energy savings. Automatically adjusts the required power consumption depending on the connection status and cable length, ensuring environmental protection. The device is compliant with the European RoHS directive, limiting the use of equipment made of environmentally hazardous materials. In addition, 70% of the product packaging is suitable for re-processing.

Extremely simple and friendly operation

Automatic switch operation thanks to the plug and play function ensures simple and hassle-free installation. The device does not require additional software. Thanks to the MDI/MDIX function, there is no need for patch cables. The automatic connection negotiation function detects the transmission speed of the connected device (10 or 100Mbps) on each port, ensuring the best performance.

• Innovative technology saves up to 70% of energy
• Support bandwidth control standard for full duplex mode (IEEE802.3x) and backpressure function for half duplex mode
• Seamless network traffic switching architecture enables packet forwarding and filtering at full speed with maximum bandwidth
• With MDI/MDIX, there is no need for patch cables
• Support for auto-learning and auto-aging MAC addresses
• Automatic negotiation of connections on ports enables better integration of devices operating at different transmission speeds: 10Mbps, 100Mbps or 1000Mbps
• No fan in the housing ensures quiet operation of the device
• Desktop enclosure, wall mount possible
• Easy installation with Plug and Play

Ports: 8 RJ45 10/100Mbps ports

Automatic connection speed negotiation and automatic patching (Auto-MDI/MDIX)

External power supply

• Input: 100~240VAC, 50/60Hz
• Output: 9VDC, 0,6AWithout Fanless
• Dimensions (WxDxH)140*87*27,5 mm (5,5*3,4*1,1 inches)

SOFTWARE FUNCTIONS

• Store and Forward
• Advanced Features Green Ethernet Technology, Energy Saving Up to 70%
• Data Flow Control (IEEE 802.3X Standard), Back Pressure, Auto-Uplink Ports

OTHER

• CertificatesCE, FCC, RoHs
• System requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7,8 MAC® OS, NetWare®, UNIX® or Linux.

Working environment:

• Permissible operating temperature: 0℃~40℃;
• Permissible storage temperature: -40℃~70℃
• Permissible air humidity: 10%~90%,
• Permissible storage humidity: 5%~90%,

Specifications
