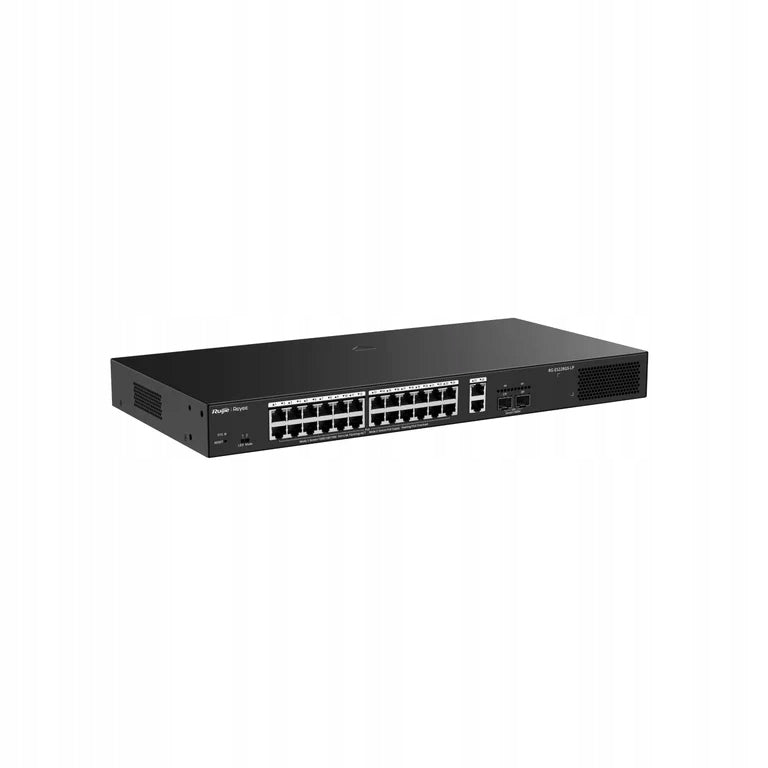

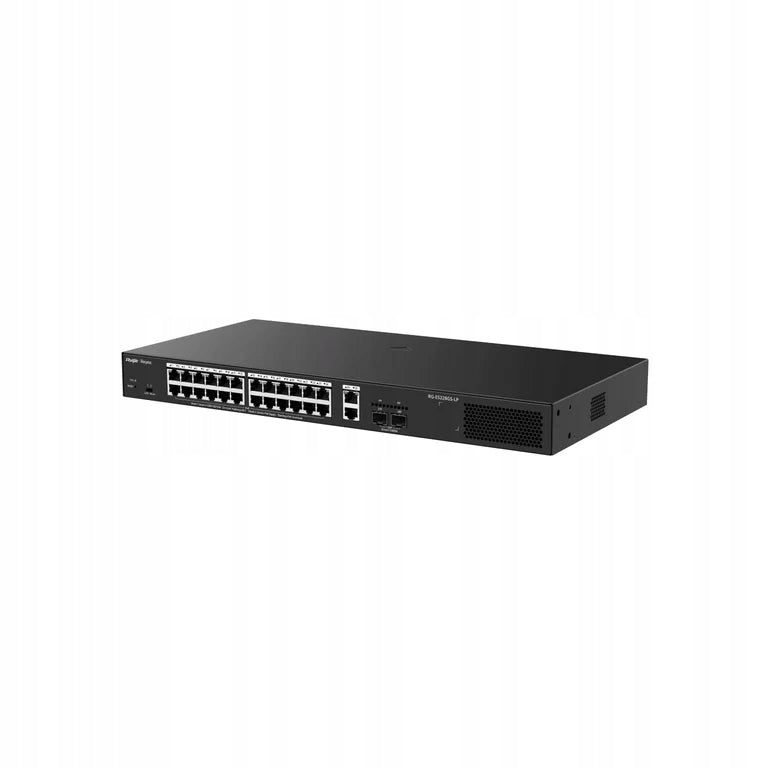

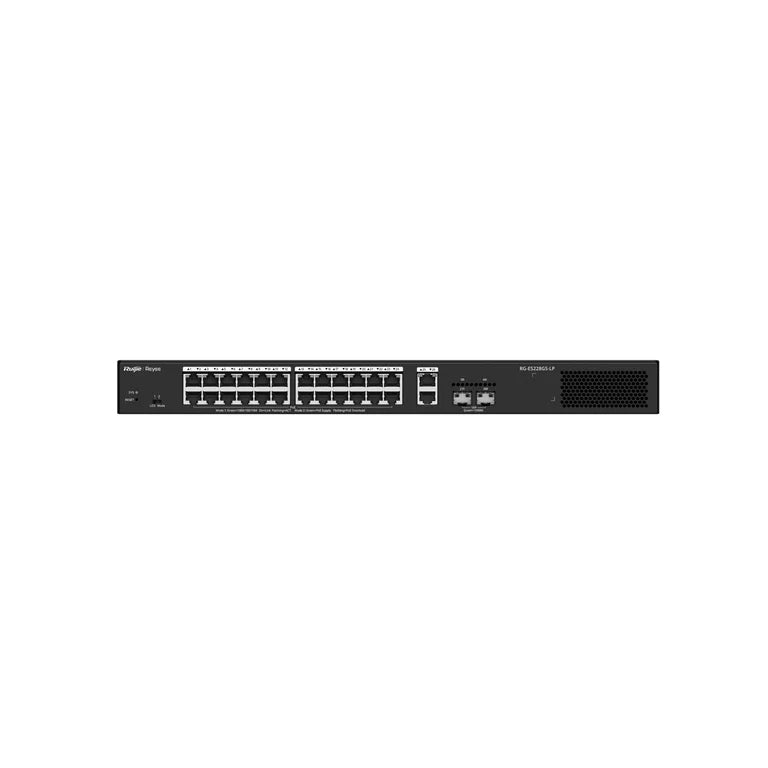

Tinklo komutatorius Ruijie Networks RG-ES228GS-LP, valdomas, L2, Gigabit

Trumpai apie prekę

Prekė: Tinklo komutatorius Ruijie Networks RG-ES228GS-LP, valdomas, L2, Gigabit. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Ruijie
• Modelis: RG-ES228GS-LP

Ruijie Networks RG-ES228GS-LP. Switch Type: Managed, Switch Layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 26. Address table size: 8000 inputs, Routing/switching throughput: 56 Gbit/s. Communication standards: IEEE 802.3af, IEEE 802.3at. PoE support. Rack Mount Capabilities, Layout: Desktop

✏ The most important technical parameters:

• Management Features - Switch Type: Managed
• Management features - Switch layer: L2
• Management Features - Website Management: Yes
• Management Features - Reset Button: Yes
• Data transfer - Routing/switching bandwidth: 56 Gbit/s
• Data transfer - Forwarding speed: 41,66 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 10000
• Multicast Features - Multicast Support: Yes
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Supported Power over Ethernet (PoE) type: Active PoE, PoE+
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 250 W
• Performance - Housing material: Metal
• Performance - Flash memory size: 8 MB
• Performance - MTBF (Mean Interval Period): 200000 h
• Network - Communication standards: IEEE 802.3af, IEEE 802.3at
• Network - 10G support: No
• Network - Port duplication: Yes
• Network - Traffic increase control: Yes
• Network - VLAN support: Yes
• Network - Number of VLANs: 16
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 26
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of SFP slots: 2
• Packaging data - Wires: AC
• Packaging data - Weight including packaging: 3,85 kg
• Design - Rack mounting options: Yes
• Design - Colour of product: Black
• Design - Number of fans: 1 went.
• Design - Layout: Desktop
• Protection - DHCP functions: DHCP snooping, DHCP client
• Design - Air flow direction: Air flow from front to back
• Working conditions - Temperature range (storage): -40 - 70 °C
• Working conditions - Temperature range (operation): 0 - 40 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Permissible relative humidity: 5 - 95%
• Working conditions - Permissible height during operation (n.p.m.): -500 - 5000 m
• Sustainability - Certificates of conformity: CB, CE
• Power - Power supply included: Yes
• Power - AC input voltage: 90 - 264 V
• Power - Power Source: AC
• Power - Input current: 6 A
• Power - AC input frequency: 47/63 Hz
• Power - Energy Saving Mode (EEE): Yes
• Weight and sizes - Product width: 440 mm
• Weight and sizes - Product depth: 214,9 mm
• Weight and sizes - Product height: 43,2 mm
• Weight and sizes - Product weight: 2,8 kg
• Contents of the package - User Manual: Yes
• Package Contents - Hook Mounting Kit: Yes
• Other functions - Noise level: 40 dB
• Classification - Manufacturer code: 6976915002818
• Classification - EAN: 6976915002818
• Classification - Product ID: 140396356
