Tinklo komutatorius Planet IGS-6329-8UP2S2X, pagal užsakymą

Trumpai apie prekę

Prekė: Tinklo komutatorius Planet IGS-6329-8UP2S2X, pagal užsakymą. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: IGS-6329-8UP2S2X

Planet IGS-6329-8UP2S2X on request

Planet

Outstanding 802.3bt PoE++ solution for harsh environments

With EN 61000-6-2 and 61000-6-4 Heavy Industrial EMC and railway EN 50121-4 certifications and IEEE 802.3bt PoE++ compliance, PLANET IGS-6329-8UP2S2X ensures uninterrupted data transmission and reliable PoE power supply, even in the event of interference from heavy industrial applications.

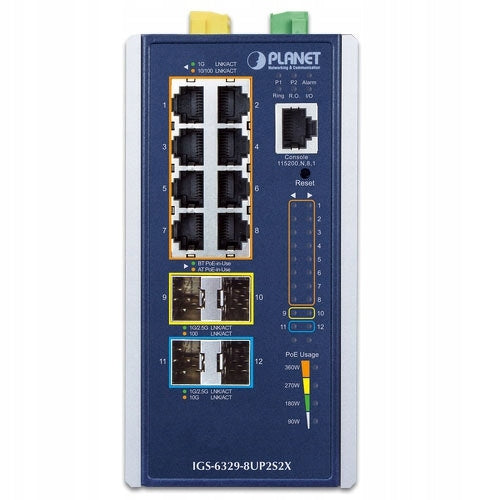

Compliant with IEEE 802.3bt Power over Ethernet Plus technology, the PLANET IGS-6329-8UP2S2X L3 Industrial Managed PoE++ Switch features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each power port up to 95W, two 100/1000/2500BASE-X SFP ports, and two 10G SFP+ ports supplied in a rugged IP30 heavy duty metal housing for stable industrial operation. It supports multiple PoE modes, including 90-watt 802.3bt Type 4 PoE++ ports, 95-watt PoH (Power over HD-BASE-T) mode, and 4-pair extortion mode, to solve the incompatibility problem of custom 4-pair PoE PD devices in the field.

With the ability to operate in a wide temperature range from -40 to 75 degrees C, the IGS-6329 PoE++ switch can be placed in almost any harsh environment. The IGS-6329 PoE++ switch also allows mounting on a DIN rail or wall for efficient use of cabinet space.

802.3bt PoE++ - 90~95-watt power supply via 4-pair UTP twisted pair cable

The IGS-6329 PoE++ series uses IEEE 802 standard. bt PoE++ and PoH technology, so it is able to deliver up to 95W of power using all four pairs of Cat5e/6 standard Ethernet cabling to deliver power and data at full speed to any PoE-compatible remote powered device (PD). It has three times the power of conventional 802.3at PoE+ and is the ideal solution to meet the growing demand for higher power consumption PD devices, such as:

• PoE PTZ high speed cameras
• Network devices
• Thin client devices
• All-in-one (AIO) touch computers, point-of-sale (POS) and information kiosks
• Remote digital signage displays
• PoE Lighting

802.3bt PoE++ and advanced management of PoE power modes

To meet the demands of different PoE stable power devices, the IGS-6329 PoE++ switch series offers five different PoE power output modes to choose from.

• 90W 802.3bt PoE++ Power Output Mode
• 95W UPOE/PoH Power Output Mode
• 60W Force Power Output Mode
• 30W PoE Final Power Mode
• 30W Mid-span PoE Power Output Mode

Convenient and intelligent ONVIF devices with detection

PLANET has developed a new feature - ONVIF Support - designed specifically to work with IP video surveillance systems. From the graphical interface of the IGS-6329 series PoE++ switch, it only takes one click to search and display all ONVIF devices using a web application.

Additionally, customers can upload floor plans to the switch, allowing them to locate surveillance devices for easier control and planning. What’s more, customers can get real-time information about surveillance and online/offline status, as well as allow you to control the restart of PoE cameras from the GUI.

Intelligent checking of the status of powered devices

The IGS-6329 PoE++ series can be configured to monitor the status of a connected PD device in real time through a ping action. When the PD stops working and responding, the IGS-6329 PoE++ Series will recalibrate the power of the PoE port and get the PD back up and running. In addition, it significantly increases reliability, as the PoE port resets PD power, thereby reducing the administrator's management burden.

PoE Schedule for Energy Saving

In line with the energy-saving trend around the world and contributing to the protection of the environment on Earth, the IGS-6329 PoE++ series can effectively control the power supply, in addition to the ability to deliver high power in watts. The built-in "PoE schedule" feature allows you to turn PoE power on or off for each PoE port at specific time intervals, and it's a powerful feature that helps SMBs or enterprises save energy and money.

Scheduled energy recycling

The IGS-6329 PoE++ allows each of the connected PoE IP cameras or wireless PoE access points to restart at a specific time each week. This reduces the likelihood of an IP camera or access point failing due to buffer overflow.

Support for routing at Layer 3

The IGS-6329 series allows an administrator to conveniently increase network performance by manually configuring Layer 3 IPv4/IPv6 VLAN static routing, automatic configuration of RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings. RIP can use the number of hops as a routing metric and prevent routing loops by entering a limit on the number of hops allowed in the path from source to destination. OSPF is an internal dynamic routing protocol for autonomous systems based on the state of the link. The protocol creates a link state database by exchanging link states between Layer 3 switches and then uses the Shortest Path First algorithm to generate a route table based on that database.

Redundant ring, fast recovery for critical web applications

The IGS-6329 series supports redundant ring technology and features a strong, fast self-healing capability to prevent interruptions and intrusions from outside. It includes advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) and a redundant power system in the customer’s industrial automation network to increase system reliability and uptime in harsh factory conditions. In a simple Ring network, the recovery time of a data link can be as long as 10 ms.

A network with cybersecurity helps minimize security risks

The IGS-6329 series has enhanced cybersecurity to protect against cyberthreats and cyberattacks. It supports SSHv2, TLSv1.2 and SNMPv3 protocols providing strong protection against advanced threats. The cybersecurity feature in the IGS-6329 series serves as a key data point and offers more than 95-watt PoE output for critical customer devices in the business network, protecting switch management and increasing mission-critical network security without the additional cost and effort of implementation.

Modbus TCP provides flexible network connectivity for factory automation

With support for Modbus TCP/IP protocol, the IGS-6329 series can easily integrate with SCADA systems, HMI systems and other factory floor data acquisition systems. It enables administrators to remotely monitor information about the operation of the industrial Ethernet switch, port information, communication status, and DI and DO status, so you can easily achieve improved monitoring and maintenance of the entire factory.

Time protocol 1588 for industrial computer networks

The IGS-6329 series is ideal for telecommunications and Carrier Ethernet applications, supporting the delivery of MEF services and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

SMTP/SNMP Trap Event Alert

The IGS-6329 series has an event alert function that helps diagnose malfunctions due to a network connection rupture or restart response.

Effective alarms for better protection

The IGS-6329 series supports an error alarm function that can alert users when something is wrong with the switches. With this ideal feature, users won’t have to waste time looking for where to problem. This will help save time and human resources.

Digital input and output for external alarms

The IGS-6329 series supports digital inputs and outputs on its front panel. An external alarm allows users to use the digital input to detect and record the status of external devices (e.g. door intrusion sensor) and sending alarms to administrators. The digital output can be used to alert administrators if the IGS-6329 Series port shows a down link, link up, or power failure.

Solid Layer 2 functions

The IGS-6329 series can be programmed for advanced Layer 2 switch management features such as dynamic port aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Thanks to the aggregation of supporting ports, the IGS-6329 series enables you to work in a fast trunk group with multiple ports and also supports failover.

Efficient management

For efficient management, the IGS-6329 series is equipped with a console, web interface and SNMP management interface.

The built-in web-based management interface offers easy-to-use, platform-agnostic management and configuration.

Text management can be accessed through Telnet and the console port.

For standard monitoring and management software, the device offers an SNMPv3 connection that encrypts packet contents during each session to ensure secure remote management.

Powerful network security

The IGS-6329 series offers a comprehensive list of access controls (ACLs) from Layer 2 to Layer 4 to ensure security at the network edge. It can be used to restrict network access by rejecting packets based on source and destination IP addresses, TCP/UDP ports, or defined common network applications. The protection mechanism also includes authentication of users and devices 802.1X Port-based and MAC-based. Thanks to the private VLAN function, communication between edge ports may be prevented to ensure user privacy.

Advanced IP network protection

The IGS-6329 series also features DHCP Snooping, IP Source Guard and Dynamic ARP Inspection, which protect against IP snooping attacks and reject ARP packets with an invalid MAC address. Network administrators can now build highly secure enterprise networks with significantly less time and effort than before.

Flexible and extensible 10Gb Ethernet solution

10Gb/s Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the IGS-6329-8UP2S2X supports different speeds of 10GBASE-SR/LR, 1000BASE-SX/LX or 2500BASE-X. With 2 10Gbps Ethernet ports and an additional 2 1G/2.5Gbps Ethernet ports, the administrator can flexibly select the appropriate SFP/SFP+ transceiver depending on the distance or transmission speed required for efficient expansion. IGS-6329-8UP2S2X provides wide bandwidth and high processing efficiency.

Intelligent mechanism for diagnosing SFP

The IGS-6329 series supports SFP-DDM (digital diagnostic monitor) function, which greatly facilitates the network administrator to monitor in real time the parameters of SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

• Redundant Power Supply: No
• Managed: Yes
• Main Port Type: RJ45
• Main Port Bandwidth: Gigabit Ethernet
• PoE Support: Yes
• PoE Power Budget: 360 W
• Number of PoE Ports: 8
• Quantity in Bulk Package: 10
• Height: 15.2 cm
• Width: 7.6 cm
• Depth: 13.5 cm
• Weight: 1.152 kg
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolskaPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	8
Parametry	EAN (GTIN)	4711605286381
Parametry	Manufacturer code	IGS-6329-8UP2S2X
