Tinklo komutatorius Planet GS-5220-8UP2T2X

Trumpai apie prekę

Prekė: Tinklo komutatorius Planet GS-5220-8UP2T2X. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GS-5220-8UP2T2X

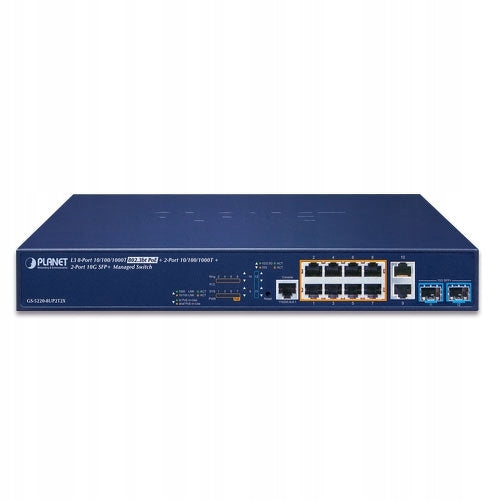

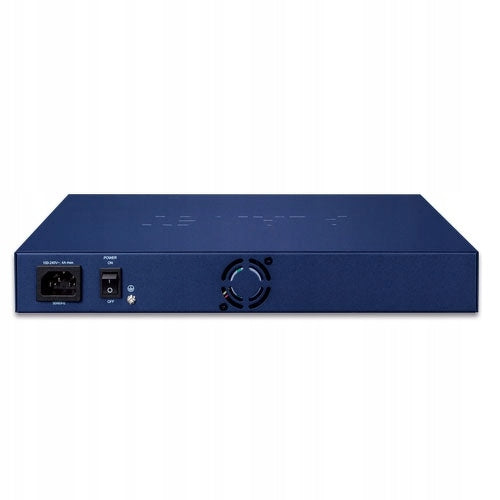

Planet GS-5220-8UP2T2X Custom made

Planet

Excellent managed 802.3bt PoE++ switch with L2+/L4 switching and security

The managed Layer 3 gigabit switch PLANET GS-5220-8UP2T2X supports IPv4 and IPv6 protocols and OSPFv2 dynamic and static Layer 3 routing, and also offers 8 10/100/1000BASE-T ports with 95-watt 802.3bt PoE++ power supply, 2 additional gigabit copper ports and 2 additional 1/2,5/10 Gigabit BASE-X fiber optic sockets. Each of the eight gigabit ports provides 95 watts of power, with a total power budget of up to 240 watts for the different types of PoE applications used. It provides a fast, secure and cost-effective Power over Ethernet networking solution for IP security surveillance for small businesses and enterprises.

95W power via 4-pair UTP twisted pair

Adopting IEEE 802.3bt standard, instead of delivering power through 2-pair UTP twisted pair - whether end-span (pins 1, 2, 3 and 6) or mid-span (pins 4, 5, 7 and 8), the GS-5220-8UP2TX 802.3bt PoE++ switch provides the ability to deliver up to 95 watts of power using all four pairs of standard cat wiring. 5e/6. In the new 4-pair system, two PSE controllers will be used to power both data pairs and backup pairs. It can offer more PoE applications, such as:

• PoE Lighting
• PoE PTZ high speed camera
• Any network device that needs higher PoE power for normal operation
• Thin-client
• AIO (All-in-One) touchscreen computer
• Digital Signage Remote Display

Redundant ring, fast recovery for critical web applications

The GS-5220-8UP2T2X supports redundant ring technology and features a strong, fast self-healing capability to prevent interruptions and external intrusions. The device uses advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) and Spanning Tree Protocol (802.1w RSTP) technology in the customer’s network to increase system reliability and uptime in harsh environments. In a simple Ring network, the recovery time can be less than 10ms to quickly restore the network to normal operation.

Cybersecurity networking solution to minimize security risks

The cybersecurity feature, which requires virtually no effort or cost, includes switch management protection and enhanced security for mission-critical networks. SSH and TLS are used to provide strong protection against advanced threats.

Flexible and extensible 10Gb Ethernet solution

10G Ethernet is a big leap in the evolution of Ethernet. Each of the 10G SFP+ slots in the GS-5220-8UP2T2X supports triple speed and 10GBASE-SR/LR or 2500BASE-X and 1000BASE-SX/LX. With the ability to connect 2-port, 10G Ethernet, an administrator can now flexibly select the appropriate SFP/SFP+ transceiver depending on the transmission distance or transmission speed required for efficient network expansion. The GS-5220-8UP2T2X delivers wide bandwidth and powerful processing performance.

Built-in unique PoE features for monitoring management

As a managed PoE switch for surveillance networks, the GS-5220-8UP2T2X has the following intelligent PoE management features:

• PD Alive Check
• Scheduled power recycling
• PoE Schedule
• Monitoring PoE usage
• PoE extension

Intelligent status checking of powered devices

The GS-5220-8UP2T2X can be configured to monitor the status of a connected PD device in real time through a ping action. When the device stops working and does not get a response, the GS-5220-8UP2T2X will resume powering the PoE port and restore the device. This greatly increases network reliability by resetting the power source through the PoE port, which reduces the administrator load.

Scheduled power recycling

The GS-5220-8UP2T2X allows each of the connected PDs to restart at a specific time each week. This reduces the likelihood of PD failure as a result of buffer overflow.

PoE Schedule for Energy Savings

In addition to its use in IP monitoring, the GS-5220-8UP2T2X can be used to build any PoE network, including VoIP and wireless LAN. In line with the energy saving trend around the world and contributing to the protection of the environment on Earth, the GS-5220-8UP2T2X can effectively control the power supply, in addition to the ability to deliver high power. The "PoE schedule" feature helps you turn PoE power on or off for each PoE port at specific intervals, and it's a powerful feature that helps SMBs and enterprises save energy and budget.

Monitoring PoE usage

The GS-5220-8UP2T2X enables an administrator to monitor the power utilization status of connected PD devices in real time through a power utilization graph in a web-based management interface. In this way, it significantly increases the efficiency of facility management.

802.3bt PoE++ Power and Ethernet Data Transmission Distance Extension

In "Extend" operation mode, the GS-5220-8UP2T2X operates in 10Mbps duplex mode on each port, but can support 95-watt PoE output power over a distance of up to 250 meters, overcoming the 100m limit for Ethernet UTP cable. With this brand new feature, the GS-5220-8UP2T2X provides an additional solution for 802.3at/af PoE distance extension, thus saving Ethernet cable installation costs.

SMTP/SNMP Trap Event Alert

Although most NVR or camera management software offers an SMTP email alert function, the GS-5220-8UP2T2X additionally provides an event alert function to help diagnose an incorrect device due to network connection interruption, PoE power loss, or response to restart by PD Alive Check process.

Convenient and intelligent ONVIF devices with detection function

PLANET has developed a new, great feature - ONVIF Support - which has been designed specifically to work with IP monitoring systems. From the GS-5220-8UP2T2X graphical interface, it only takes one click to search and show all ONVIF devices through the web application. In addition, you can upload floor images to the switch and remotely monitor what is happening on the production line. Moreover, you can get real-time surveillance information and online/offline status, as well as control the PoE restart from the GUI.

IPv6 Network Solution

With IPv6/IPv4 support and an easy and user-friendly management interface, the GS-5220-8UP2T2X is the best choice for IP surveillance, VoIP and wireless service providers to connect to an IPv6 network. It also helps small and medium-sized enterprises enter the IPv6 era with the lowest capital expenditure and without the need to replace network devices, even if internet service providers create an edge IPv6 FTTx network.

Support for Layer 3 routing

The GS-5220-8UP2T2X enables an administrator to conveniently increase network efficiency by manually configuring IPv4/IPv6 VLAN Layer 3 static routing and automatically configuring OSPFv2 (Open Shortest Path First) settings. OSPF is an internal dynamic routing protocol for a standalone system based on the state of the link. The protocol creates a link state database by exchanging link states between Layer 3 switches and then uses the Shortest Path First algorithm to generate a route table based on that database.

Solid Layer 2 features

The GS-5220-8UP2T2X can be programmed for advanced switch management such as dynamic port aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The GS-5220-8UP2T2X enables high-speed trunk connectivity across multiple ports. Supporting 6 trunk groups, it allows up to 8 ports per trunk, and also supports fail-over connections.

Powerful security

The GS-5220-8UP2T2X offers a comprehensive list of access controls (ACLs) from Layer 2 to Layer 4 to enforce edge security. It can be used to restrict network access by rejecting packets based on source and destination IP addresses, TCP/UDP port numbers, or defined common network applications. Its protection mechanism also includes 802.1x Port-based and MAC-based user and device authentication. With private VLAN functionality, you can prevent communication between edge ports to ensure user privacy.

 

Increased safety and traffic control

The GS-5220-8UP2T2X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection features that prevent IP snooping attacks and reject ARP packets with an invalid MAC address. A network administrator can now build highly secure corporate networks with significantly less time and effort than before.

Secure user-friendly management

For efficient management, the GS-5220-8UP2T2X is equipped with console, web and SNMP management interfaces. With its built-in web-based management interface, the GS-5220-8UP2T2X offers easy-to-use, platform-agnostic management and configuration. The GS-5220-8UP2T2X supports SNMP and can be managed by any management software based on the standard SNMP v1 and v2 protocols. In order to reduce product learning time, the GS-5220-8UP2T2X offers Cisco commands via Telnet or the console port, so that the customer does not have to learn new commands from these switches. In addition, the GS-5220-8UP2T2X enables secure remote management with support for SSHv2, TLSv1.2 and SNMPv3 connections that can encrypt packet contents during each session.

Intelligent SFP diagnostic mechanism

The GS-5220-8UP2T2X supports SFP-DDM (Digital Diagnostic Monitor) functionality, which makes it much easier for the network administrator to monitor in real time the parameters of SFP transceivers such as optics output power, optics input power, temperature, laser bias current and transceiver supply voltage.

• Redundant Power Supply: No
• Management: Yes
• Main Port Type: RJ45
• Main Port Bandwidth: Gigabit Ethernet
• PoE Support: Yes
• PoE Power Budget: 240 W
• Number of PoE Ports: 8
• Quantity per Master Pack: 6
• Height: 4.4 cm
• Width: 33.02 cm
• Depth: 20 cm
• Weight: 2.1 kg
• Manufacturer Details: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Details: Konsorcjum FEN Sp. z o.o.PolskaPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	8
Parametry	EAN (GTIN)	4711605283663
Parametry	Manufacturer code	GS-5220-8UP2T2X
