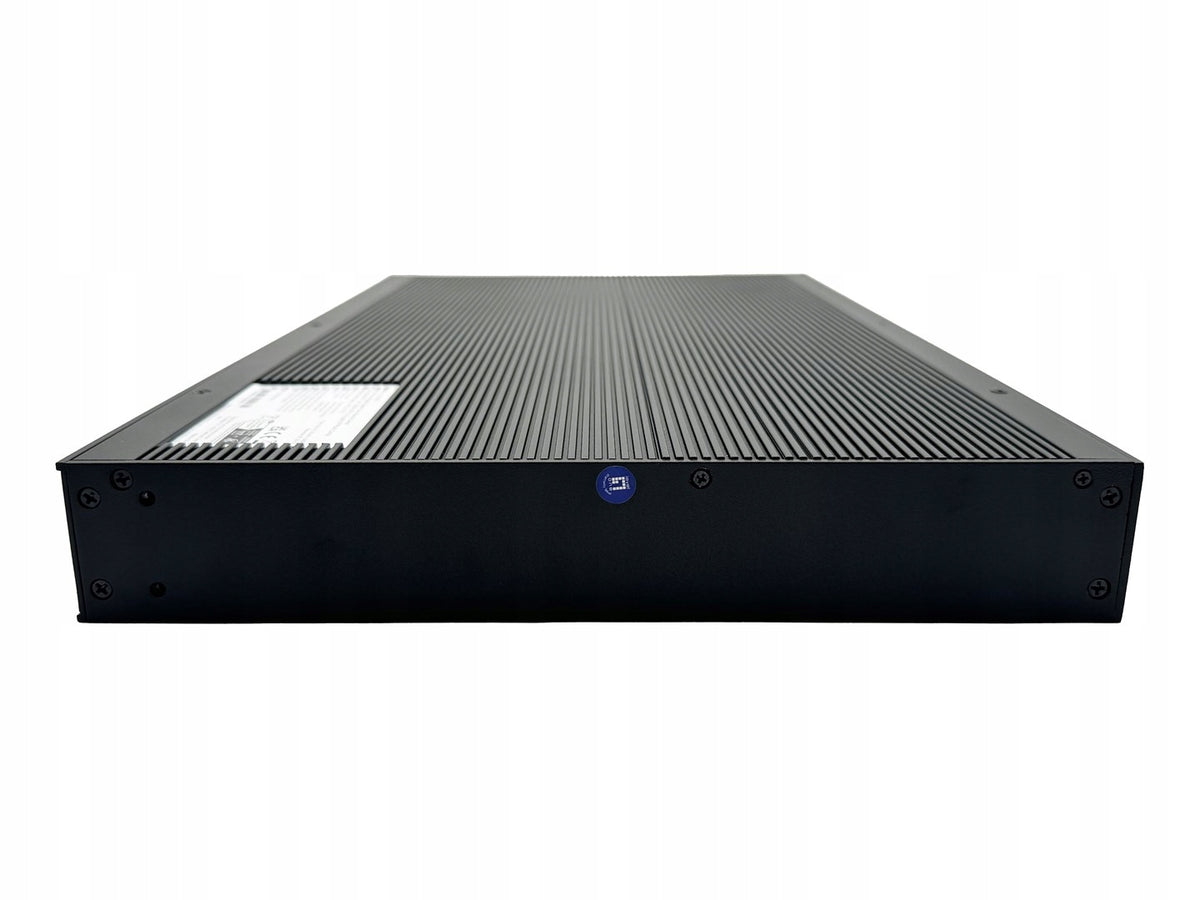

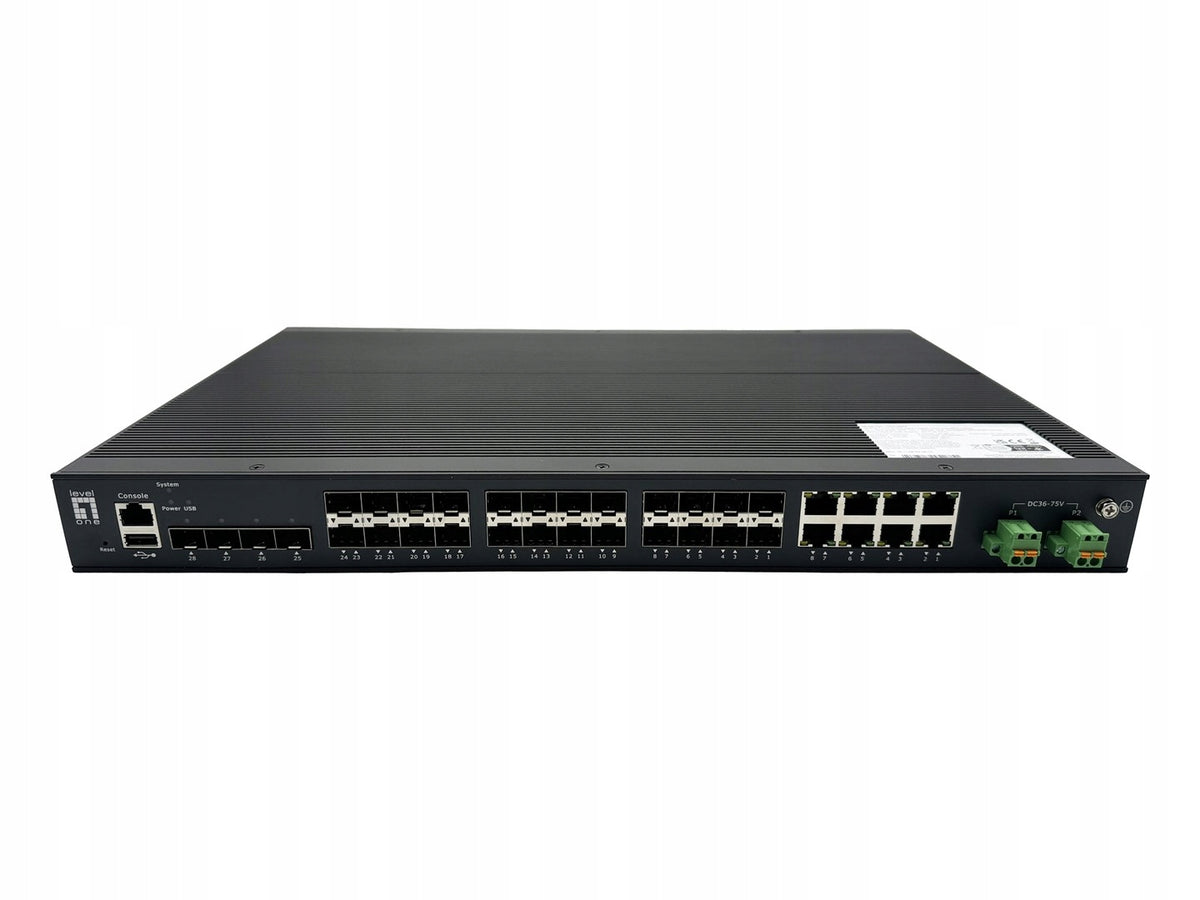

Tinklo komutatorius LevelOne IGU-2872, valdomas, L2+, juodas

Trumpai apie prekę

Prekė: Tinklo komutatorius LevelOne IGU-2872, valdomas, L2+, juodas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: LevelOne
• Modelis: 492317

Technical details

• Gross pallet length: 80 cm
• Gross width of pallet: 120 cm
• Bulk boxes (external) per pallet (air): 14 pcs.

Design

• Rack Mount Capabilities: Yes
• Degree of protection IP: IP40
• LEDs: USB, System, Power Supply
• Product Color: Black

Power

• Protection against sudden voltage increase: Yes, 6 kV
• Backup Power Supply (RPS) Support: Yes
• Power Supply Included: Yes
• Power consumption (max): 36 W
• Power Source: AC
• AC input frequency: 50/60 Hz
• AC input voltage: 100 - 240 V
• DC Input Voltage: 36 - 75 V

Weight and sizes

• Product height: 280 mm
• Product depth: 45 mm
• Product Width: 440 mm
• Product weight: 4, 14 kg

Protection

• Authentication: MAC-based authentication, Port-based authentication
• Access Control List (ACL): Yes
• MAC Address Filtering: Yes
• Encryption / security: SSH, HTTPS
• Package Filtering: Y
• MAC Address Entries: Dynamic MAC Address Entries, Static MAC Address Entries
• Queue Planning Algorithms: Weighted Round Robin (WRR)

Features of management

• Switch Type: Managed
• System Events Report: Yes
• Switch Layer: L2+
• Service Quality (QoS): Yes

Working conditions

• Temperature range (storage): -40 - 85 °C
• Temperature range (operation): -40 - 80 °C
• Relative humidity range: 10 - 90%
• Permissible relative humidity: 5 - 95%

Network

• 10G Support: No
• Frequency Limit: Yes
• Copper Ethernet cabling technology: 100BASE-TX, 1000BASE-T, 100BASE-X, 10BASE-T
• VLAN Support: Yes
• Traffic Increase Control: Yes
• Flow Control Support: Yes
• Port Channel System: Yes
• Port duplication: Yes
• Communication standards: IEEE 802. 1s, IEEE 802. 1Q, IEEE 802. 3ab, IEEE 802. 1D, IEEE 802. 1ab, IEEE 802. 3z, IEEE 802. 3u, IEEE 802. 1x, IEEE 802. 3x, IEEE 802. 3
• Virtual LAN functions: MAC address-based VLAN, VLAN mapping, Stacked VLAN, Protocol-based VLAN
• Ethernet Ring Protection Switching (ERPS): Yes
• Spanning Tree Protocol: Yes

Efficiency

• MTBF (Mean Interval Period): 200000 h
• No Windmill: Yes

Packaging data

• Package Depth: 390 mm
• Weight with packaging: 5, 29 kg
• Strip Included: Yes

Contents of the pack

• Hook Mounting Kit: Yes
• Cables: AC, LAN (RJ-45)
• Quick Start Guide: Yes

Certificates

• Certificates of conformity: CE, UKCA, Federal Communications Commission (FCC), RoHS

Protocols

• IP Source Protection (IPSG): Yes
• IPv4 and IPv6 functions: IPv4/IPv6 access-control list (ACL)

Ports and interfaces

• Basic RJ-45 Ethernet Switching Ports Type: No
• Console Port: RJ-45
• Number of SFP Module Slots: 20
• Number of SFP Combo Ports: 8
• Number of USB ports 2. 0: 1

Logistics data

• Length of main box (external): 400 mm
• Gross weight of main housing (external): 22, 5 kg
• Harmonised System Code (HS): 851762
• Bulk box width (external): 535 mm
• Products in main box (external): 4 pcs.
• Height of reference box (external): 408 mm
• Country of Origin: China

Data transmission

• Address table size: 16000 inputs
• Packet buffer memory: 12 MB
• Compatible with Jumbo Frames: Yes
• Routing/switching throughput: 68 Gbit/s
• Jumbo Frames extension: 10000
• Forwarding speed: 101, 1 Mpps

Power over Ethernet (PoE)

• PoE Support: No

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	LevelOne
Parametry	Product weight with unit packaging	5.29 kg
Parametry	Number of ports	14
Parametry	EAN (GTIN)	4015867238608
Parametry	Manufacturer code	492317
