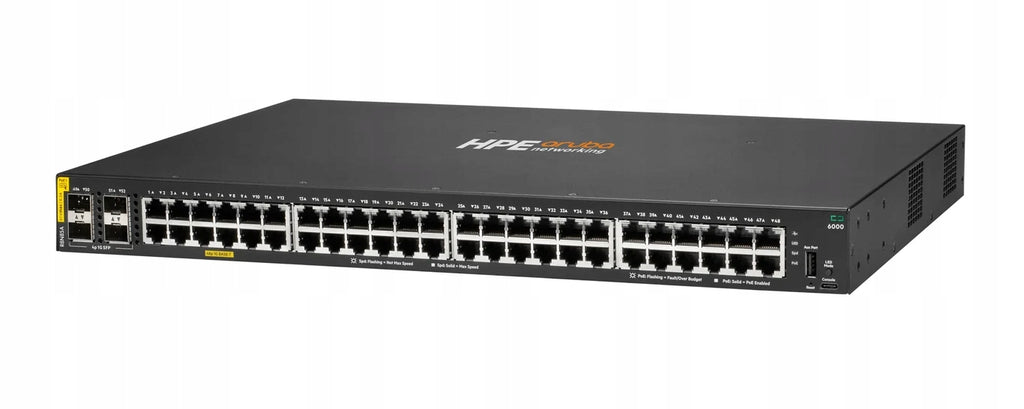

Tinklo komutatorius HPE Aruba CX 6000, 48 PoE prievadai, 4 SFP, 370W

Trumpai apie prekę

Prekė: Tinklo komutatorius HPE Aruba CX 6000, 48 PoE prievadai, 4 SFP, 370W. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: HP
• Modelis: R8N85A

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch Switch Type: Managed, Switch Layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 48, Console Port: Micro-USB. Address table size: 8192 inputs, Routing/switching throughput: 104 Gbit/s. Communication standards: IEEE 802.3af, IEEE 802.3at. PoE support. Rack Mount Capabilities, Layout: 1U

✏ The most important technical parameters:

• Data transfer - Routing/switching bandwidth: 104 Gbit/s
• Data transfer - Bandwidth: 77,3 Mpps
• Data transfer - Address table size: 8192 inputs
• Data transfer - Latency (1 Gbps): 1,9 µs
• Data transfer - Static route: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Packet buffer memory: 12,38 MB
• Multicast Features - Multicast Support: Yes
• Design - Layout: 1U
• Construction - Rack mounting options: Yes
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 370 W
• Network - 10G support: No
• Network - Communication standards: IEEE 802.3af, IEEE 802.3at
• Network - Automatic MDI/MDI-X: Yes
• Network - Port duplication: Yes
• Network - Flow control support: Yes
• Network - Connection aggregator: Yes
• Network - Spanning tree protocol: Yes
• Network - VLAN support: Yes
• Processor - Processor model: ARM Cortex-A9
• Protection - DHCP functions: DHCP client
• Protection - Access Control List (ACL): Yes
• Protection - IGMP snooping: Yes
• Protection - Authentication: MAC-based authentication
• Performance - Flash memory size: 16384 MB
• Performance - Built-in processor: Yes
• Performance - Processor clock speed: 1016 MHz
• Performance - Latency: 1 Gbps: 1.9 μSec
• Performance - Memory Type: DDR3-SDRAM
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 48
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of SFP slots: 4
• Ports and interfaces - Console port: Micro-USB
• Working conditions - Relative humidity range: 15 - 95%
• Working conditions - Temperature range (storage): -40 - 70 °C
• Working conditions - Permissible relative humidity: 15 - 90%
• Weight and sizes - Product weight: 5 kg
• Weight and sizes - Product height: 305 mm
• Weight and sizes - Product width: 44 mm
• Weight and sizes - Product depth: 442 mm
• Management Features - Switch Type: Managed
• Management features - Switch layer: L2
• Management Features - Managed in the Cloud: Yes
• Management Features - Website Management: Yes
• Power Supply - Power Supply Included: Yes
• Management Features - Service Quality Support (QoS): Yes
• Protocols - IPv4 and IPv6 functions: IPv4/IPv6 access-control list (ACL)
• Protocols - IPv4 FIB: 256
• Protocols - IPv6 FIB entries: 128
• Power - AC input frequency: 50 - 60 Hz
• Power - AC input voltage: 200 - 240 V
• Power - Power consumption: Max. Power (w/o PoE): 45W Max Power (w/ PoE): 480W
• Power - Power Source: AC
• Logistics data - Harmonised system code (HS): 85176990
• Technical details - Internal storage capacity: 4096 MB
• Technical details - Temperature range (operation): 0 - 45 °C
• Other Features - Other Connections: 48 x 10/100/1000BASE-T ports 4 x 1 G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
• Other Features - Memory & Processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
• Other functions - Management features: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
• Other functions - Weight (imperial): 5,02 kg (11.1 lbs)
• Classification - Manufacturer code: R8N85A
• Classification - EAN: 0190017559797
• Classification - Product ID: 94376912
