Tinklo komutatorius DAHUA SG4020LP, 16 jungčių, PoE, SFP

Trumpai apie prekę

Prekė: Tinklo komutatorius DAHUA SG4020LP, 16 jungčių, PoE, SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Dahua
• Modelis: SG4020LP

POE Switch SG4020LP 16 PORT SFP DAHUA

DAHUA

LAN Ports: 16 x RJ45 10/100/1000 Base-T (2 x Hi-PoE /PoE (802.3bt) + 14 x PoE (802.3af/at) ),2 x RJ45 10/100/1000 Base-T - Uplink, 2 x SFP 1000 Base-X -Uplink ; Transmission rate:10 / 100 / 1000 Mbps : 16 LAN & PoE ports, 10 / 100 /1000 Mbps : 2 RJ45 ports (Uplink),1000 Mbps : 2 SFP ports (Uplink) ; Maximum total power:190 W ; Selected features: Switch is managed via the web and via the cloud (DoLynk Care application) ;

• Weight: 3.2260
• Length: 545
• Width: 345
• Height: 95

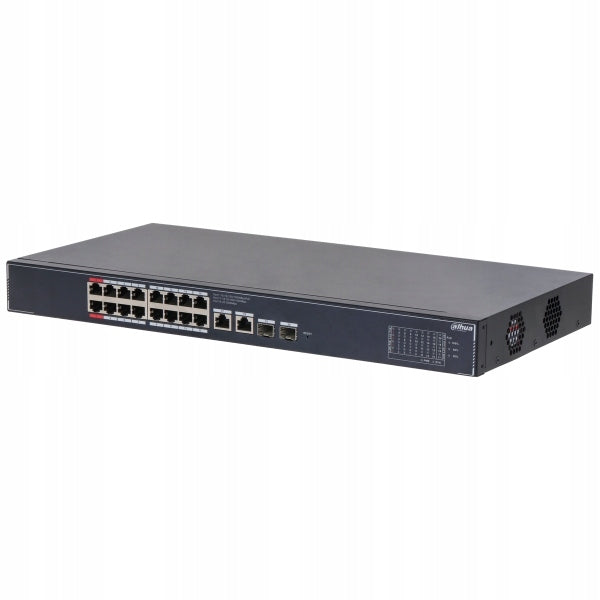

SG4020LP is a 20-port cloud-managed switch with 16 PoE ports and 2 RJ-45 uplink ports and 2 SFP ports. It's ideal for CCTV installations and network expansion in small to medium-sized businesses. Two red-marked ports provide up to 90W, while the remaining ports offer up to 30W. The total PoE budget is 190W. Features like Long Distance PoE (up to 250m), PoE Watchdog, and support for IEEE802.3af/at/bt and Hi-PoE ensure stable power for cameras and access points. Local and DoLynk Care app management, a metal casing, and functions like link aggregation and STP simplify network installation and maintenance.

Note: An SFP module is required for the SFP port and is available separately.

LAN Ports: 16 x RJ45 10/100/1000 Base-T (2 x Hi-PoE / PoE (802.3bt) + 14 x PoE (802.3af/at)), 2 x RJ45 10/100/1000 Base-T - Uplink, 2 x SFP 1000 Base-X - Uplink. Management: Default IP Address: 192.168.1.110. Default Administrator Login / Password: admin / -

Set the administrator password upon first use.

LED Indicators: Link, PoE, Power, System, 50% PoE, 80% PoE, 100% PoE. Transmission Speed: 10 / 100 / 1000 Mb/s: 16 LAN & PoE Ports, 10 / 100 / 1000 Mb/s: 2 RJ45 Ports (Uplink), 1000 Mb/s: 2 SFP Ports (Uplink). Maximum Output Power: 90W / port Hi-PoE / PoE 802.3bt - Ports 1, 2. 30W / port PoE 802.3af/at - Ports 3...16. Maximum Total Power: 190W. MAC Address Table: 8k. Operating Modes: Long Distance PoE On: 250m, 10 Mb/s @ UTP Cat. 5e, 6. Selected Features: The switch is manageable via web interface and cloud (DoLynk Care app). PoE Power Mode: Device supports 8-pin power - wires: 1-2(+), 3-6(-), 4-5(+), 7-8(-). Surge and potential difference protection between devices. PoE Loop Protection. LLDP Protocol Compliance. Spanning Tree STP/RSTP. Port Based VLAN. Flow Control (802.3x). DHCP Client. RESET Button. Rack Mountable 19". Protections: Surge Protection (common/differential): 4 / 2 kV. Electrostatic Discharge Protection - Contact/Air (ESD/EMP): 6 / 8 kV. Casing: Metal. Power Supply: 100...240V AC @ 47...63 Hz. Power Consumption: max. 212W. Operating Temperature: -10°C ... 55°C. Weight: 2.32 kg. Dimensions: 440 x 220 x 44 mm, RACK 19", 1U. Manufacturer / Brand: DAHUA.
