Tinklo kartotuvas Hikvision DS3E0505P-E/R, 5 jungtys, PoE, 60W

Trumpai apie prekę

Prekė: Tinklo kartotuvas Hikvision DS3E0505P-E/R, 5 jungtys, PoE, 60W. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: S-3E0505P-E/M

Hikvision DS 3E0505P E R PoE Gigabit Repeater 5 Ports 60W

HIKVISION

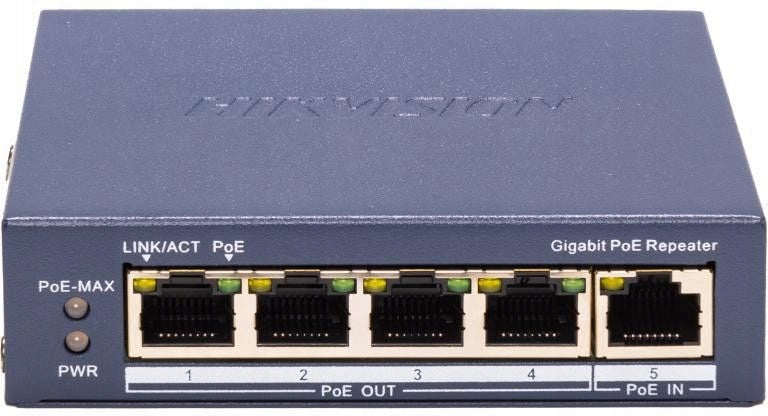

PoE Repeater Hikvision DS 3E0505P E/R

The Hikvision DS 3E0505P E/R PoE Repeater is a gigabit network device equipped with 5 RJ45 10/100/1000 Mbps ports, enabling the extension of data transmission and PoE power supply without the use of an additional AC adapter.

The most important features

• 5 ports Gigabit Ethernet PoE RJ45 (1 PoE input, 4 PoE outputs)
• IEEE 802.3af/at/bt compliant PoE IN input port
• IEEE 802.3af/at compliant PoE OUT output ports
• Total PoE power budget of 60 W (up to 30 W per single port)
• 6 kV surge protection for PoE ports
• Store-and-forward mode
• Metal, durable housing
• Fanless design for quiet operation
• Can be mounted on a wall or desk

Technical specification

• Model: DS 3E0505P E/R
• Number of ports: 4 × PoE Gigabit (output), 1 × PoE Gigabit (input)
• PoE Standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt (input) / IEEE 802.3af, IEEE 802.3at (output)
• PoE power budget: 60 W
• Maximum power per port: 30 W
• Switching performance: 10 Gbps
• Package forwarding speed: 7,44 Mp/s
• MAC address table: 2 K
• Cache: 1 Mb
• Overvoltage protection: 6 kV
• Housing material: Metal
• Assembly: For desk, for wall
• Working temperature: 0 °C to 40 °C
• Working humidity: 5% to 95% (non-condensing)
• Dimensions: 105,00 mm × 27,6 mm × 83,1 mm
• Net weight: 0,25 kg
