Tinklo kabelis Cat.6A, ekranizuotas, RJ45-RJ45, 5 m, baltas

Trumpai apie prekę

Prekė: Tinklo kabelis Cat.6A, ekranizuotas, RJ45-RJ45, 5 m, baltas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Logilink
• Modelis: CQ3071S

Catalog No.: 31696

The connection is supplied by the renowned German company LogiLink, a data sheet, a hyperlink to the manufacturer’s website and a detailed specification is available at: www.stratos.pl/strony/31696.htm

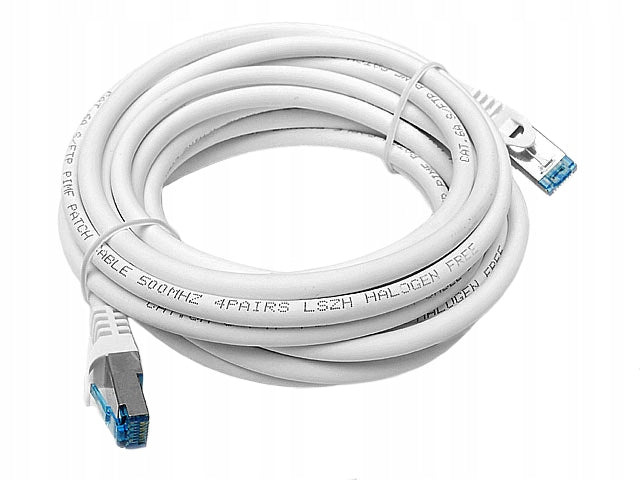

The offered patch cord is a shielded RJ45-RJ45 category 6A Ethernet connection in a 1:1 connection. The cable is made of 4-pair copper twisted pair 4x2xAWG26/7 in SFTP (Shielded-Foiled Twisted Pair) / PIMF (Paired, Individually Metal Foiled) technology, i.e. each pair in an individual foil screen and additionally the whole in a mesh screen. The coat is made of LSZH (Low Smoke Zero Halogen). Flooded RJ45 plugs gold plated with 2μm thickness (on a 4μm nickel base) are connected according to the EIA/TIA 568B standard. The special shape of the flooded cover of small size allows use in patch panels with high density of packing ports.

abel complies with ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2, meets the cat 6A standard (EA class - 500MHz band) and is dedicated to 10/100/1000/10000Mbbps networks, i.e. guarantees work in Fast Ethernet (100Mbps), Gigabit Ethernet (1000Mbps) and 10 Gigabit Ethernet (10000Mbps).

Ethernet cables come in two types: straight connection cable (Patch Cables 1:1) or Crossover Cables. 1:1 straight cable is the basic connection used in computer networks. It is used to connect computers and other network devices (switches, hubs, routers, network printers, etc. ) for Ethernet computer networks, patch cable is used less often, it is mainly used for direct connection between two computers equipped with network cards bypassing the router and switch. The cable offered is a cable in a simple 1:1 connection, but on our other auctions we sell crossover adapters that convert any 1:1 straight cable into a patch cable. You can search for it by typing 'adapter crossover' in the items we sell.

Attention! The offered patch cord is double shielded and contains 8 conductors made of copper conductor (AWG26 cable or 0.50mm). On the market there are patch cords shielded with one common screen made of F/UTP film, which are also called shielded, but compared to PIMF technology (screening each pair separately and an additional screen of the whole) they have much worse transmission parameters and do not guarantee work in 10Gigabit networks. We guarantee compliance of our patch cords with the parameters presented in the description.

• Category: 6A Class EA
• Bandwidth: 500MHz, 10/100/1000/10000Mbps
• Color: White

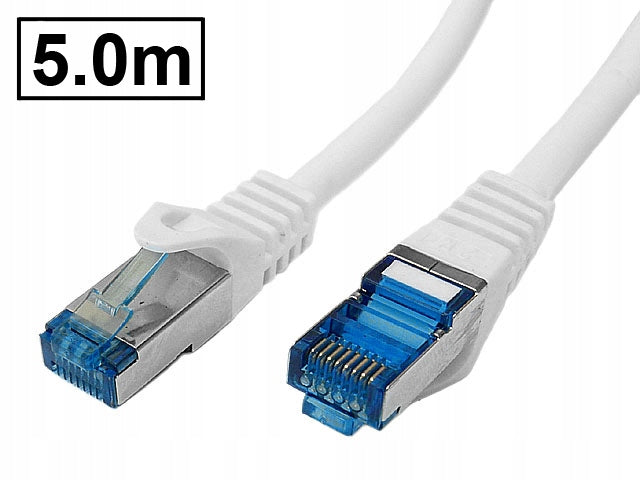

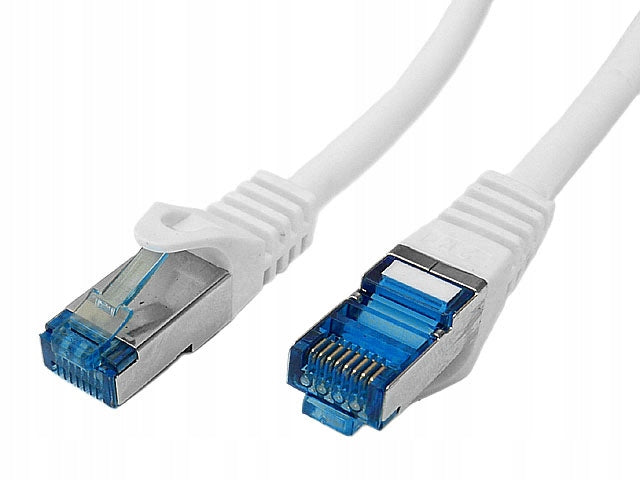

• Plugs: RJ45 flooded, gold plated contacts, gold thickness 2μm (50μin) to 4μm (100μin) nickel
• Cable: 4x2xAWG 26/7 copper conductors, SFTP/PIMF foil and aluminum mesh screens, PE insulation, LSOH outer sheath, diameter approx. 5.5mm
• Length: 5.0m
• Weight: approx. 160g

Specifications and detailed parameters are available at www.stratos.pl/specyfikacje/31694.pdf

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
