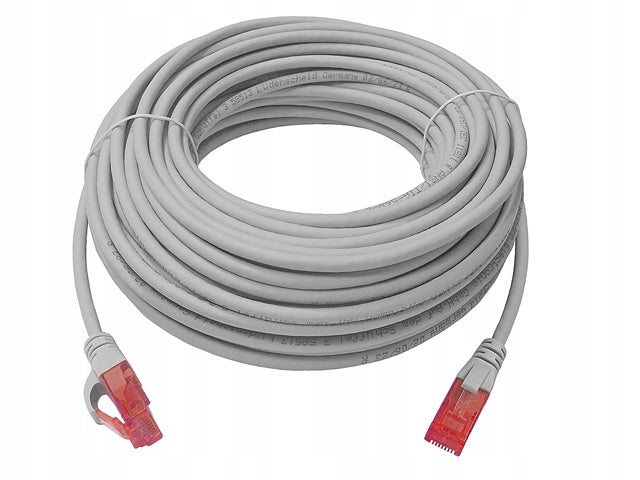

Tinklo kabelis Cat.6 UTP RJ45, 20 m, pilkas, varinis, AWG26

Trumpai apie prekę

Prekė: Tinklo kabelis Cat.6 UTP RJ45, 20 m, pilkas, varinis, AWG26. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: DK-1617-200-1

Catalog No.: 31600

The connection is supplied by the renowned German company DIGITUS, a data sheet, a hyperlink to the manufacturer’s website and a detailed specification is available at: www.stratos.pl/strony/31600.htm

The offered patch cord is an unshielded RJ45-RJ45 category 6 Ethernet connection in a 1:1 connection. The cable is made of 4-pair copper twisted pair 4x2xAWG 26/7. The coat is made of LSZH (Low Smoke Zero Halogen). Flooded RJ45 plugs gold plated with 3μm thickness (on a 60μm nickel base) are connected according to the EIA/TIA 568B standard. The special shape of the flooded cover of small size allows use in patch panels with high density of packing ports.

The cable complies with ISO/IEC 11801, EN50173-1, EN60603-7-4 and TIA/EIA 568.2-D standards, meets the cat 6 standard (class E - band 250MHz), allows PoE+ power transmission and is dedicated to 10/100/1000Mbps networks, i.e. guarantees operation in Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) networks.

Ethernet cables come in two types: straight connection cable (Patch Cables 1:1) or Crossover Cables. 1:1 straight cable is the basic connection used in computer networks. It is used to connect computers and other network devices (switches, hubs, routers, network printers, etc. ) for Ethernet computer networks, patch cable is used less often, it is mainly used for direct connection between two computers equipped with network cards bypassing the router and switch. The cable offered is a cable in a simple 1:1 connection, but on our other auctions we sell crossover adapters that convert any 1:1 straight cable into a patch cable. You can search for it by typing 'adapter crossover' in the items we sell.

Attention! The offered patch cord contains 8 conductors made of copper conductor (AWG26/7 cable or 0.50mm). Patch cords made of thinner copper conductors, aluminum or steel conductors are found on the market that do not guarantee 1Gb / s transmission and when trying to power PoE generate large voltage drops associated with high resistance of conductors (with a long length of patch cord, this may interfere with or even prevent the operation of the connected device). We guarantee compliance of our patch cords with the parameters presented in the description.

• Category: 6 (Class E)
• Bandwidth: 250MHz, 10/100/1000Mbps
• Color: Grey

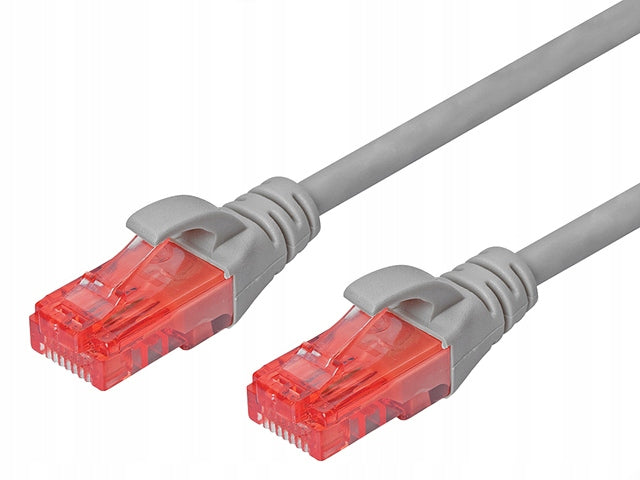

• Plugs: RJ45 flooded, gold plated contacts, gold thickness 3μm per 60μm nickel
• Cable: unshielded UTP, copper conductors 4x2xAWG26/7, PE insulation, LSZH outer sheath, diameter approx. 4.8mm
• Length: 20.0m
• Weight: approx. 460g

Specifications and detailed parameters are available at www.stratos.pl/specyfikacje/31590D.pdf

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
