Tinklo jungiklis ULTIPOWER 0094af, 9xFE, 4xPoE

Trumpai apie prekę

Prekė: Tinklo jungiklis ULTIPOWER 0094af, 9xFE, 4xPoE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 0094AF

Product code: 0094AF

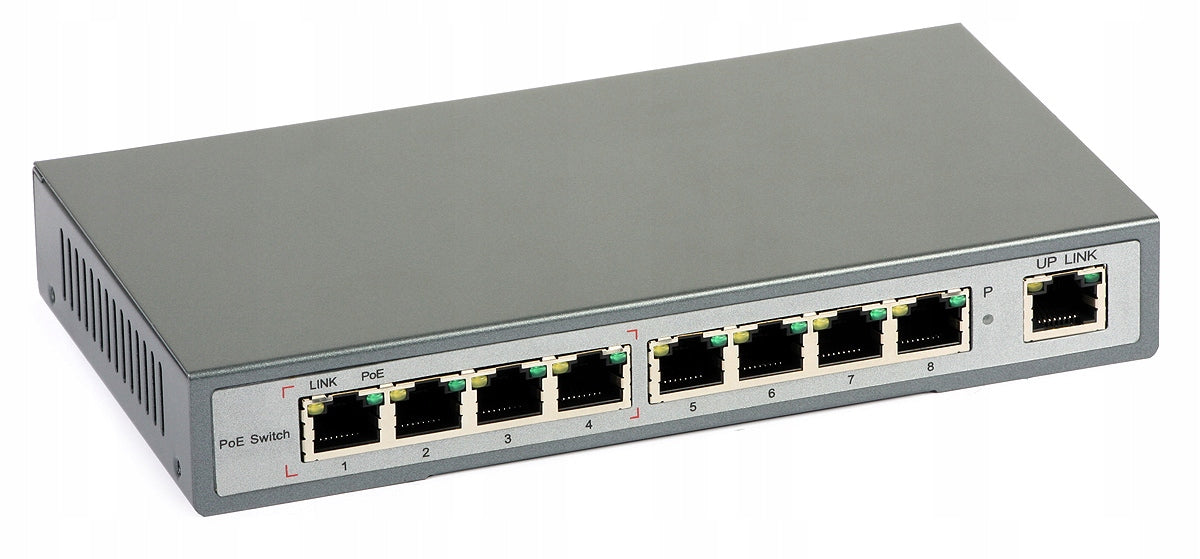

The PoE switch ULTIPOWER 0094af is a desktop device that ensures smooth network transmission. It allows you to make connections with speeds of 10 and 100Mb / s. It has 9 RJ45 ports supporting automatic connection speed negotiation. 4 of them support Power over Ethernet (PoE). The switch automatically detects PD devices compliant with IEEE 802.3af standard and supplies them with power. This allows you to extend the network coverage in places where there is no access to sockets or power lines, and where there is a need to place access points, IP cameras, IP phones, etc.

Distinguishing features:

• 9 10/100 Mbps ports
• 4 PoE ports, data transfer and device power supply using one cable,
• Installation or configuration of the device is not required,
• PoE power supply up to 15.4W for each PoE port
• Support for PoE powered devices, operating in accordance with the IEEE802.3af standard
• Support for auto-learning and auto-aging of MAC addresses
• LED diodes informing about the connection status and speed, its activity and power supply

802.3af and 802.3at

The most popular PoE 802.3af standard is used e.g. in IP cameras. It enables powering devices with voltage from 44 to 57 [V] with a maximum power of 15.4 [W]. The 802.3at standard enables powering devices with an input voltage of 50 - 57 [V] and a power not exceeding 25.5 [W]. Examples of devices powered by the 802.3at standard are: printers, rotating IP rotary cameras and switches.

Technical specifications:

• Name ULTIPOWER 0094af
• Standards and protocols IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA / CD, TCP / IP
• Forwarding speed 10BASE-T: 14880pps / port 100BASE-TX: 148800pps / port
• Store-and-Forward transmission method
• Ports 9 10 / 100Mbps RJ45 ports (auto-negotiation of connection speed, auto MDI / MDIX crossover) including 4 PoE ports
• 10Base-T network cabling: UTP Cat. 3, 4 or 5 (up to 100m) STP EIA / TIA-568 cable 100Ω (up to 100m) 100Base-Tx: UTP cat. 5 or 5e (up to 100m) STP EIA / TIA-568 100Ω cable (up to 100m)
• LED indicators for Power, Link / Act, 100M, PoE Status
• CE certificates
• Dimensions [mm] 190x107x30
• Working environment Admissible operating temperature: 0 ... 40 ℃ Admissible storage temperature: -40 ... 70 ℃ Admissible air humidity: 10 ... 90%, non-condensing Admissible storage humidity: 5 ... 90%, non-condensing
• Power supply AC 230 V / DC 48-57 V 2.5A
• Other Compatibility with PoE (PD) devices operating in the IEEE 802.3af standard Supports auto-learning and auto-aging of MAC addresses Supports bandwidth control standard for full duplex mode (IEEE802.3x) and back pressure function for half duplex mode

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Product weight with unit packaging	1 kg
Parametry	Number of ports	9
Parametry	EAN (GTIN)	5907634598413
Parametry	Manufacturer code	0094AF
