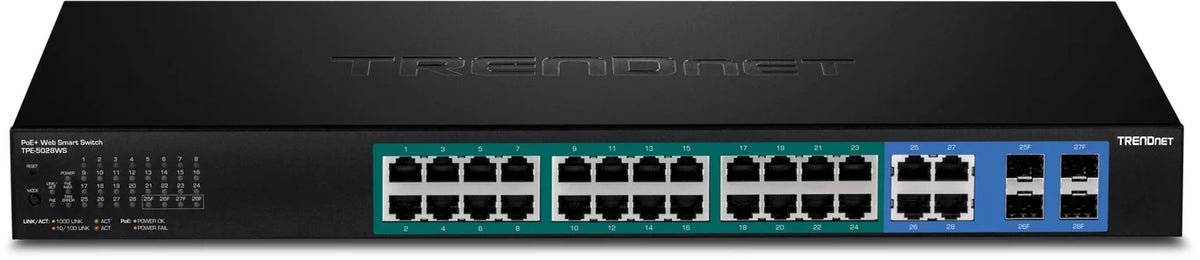

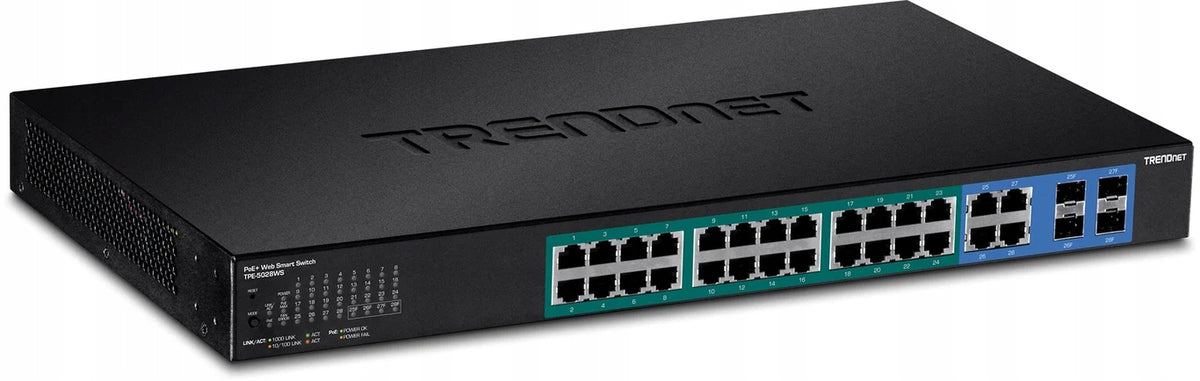

Tinklo jungiklis Trendnet TPE-5028WS, valdomas, Gigabit Ethernet

Trumpai apie prekę

Prekė: Tinklo jungiklis Trendnet TPE-5028WS, valdomas, Gigabit Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Trendnet
• Modelis: 3752683

Trendnet TPE-5028WS. Switch Type: Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24. Full duplex. Address table size: 8000 inputs, Routing/switching throughput: 56 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE... Power connector: DC-in jack. PoE support. Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Construction - Housing Material: Low-density linear polyethylene (LLDPE)
• Construction - Product Color: Black
• Construction - Form Factor: 1U
• Data Transfer - Routing/Switching Capacity: 56 Gbit/s
• Data Transfer - Forwarding Rate: 41.7 Mpps
• Data Transfer - Address Table Size: 8000 entries
• Data Transfer - Jumbo Frames Support: Yes
• Data Transfer - Jumbo Frames Extension: 10000
• Data Transfer - Packet Buffer Memory: 4.1 MB
• Multicast Features - Multicast Support: Yes
• Multicast Features - Multicast MAC Address Table: 256 entries
• Power over Ethernet (PoE) - Power over Ethernet Plus (PoE+) Ports Quantity: 24
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) Budget: 370 W
• Network - Port Mirroring: Yes
• Network - Link Aggregation: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Head-of-Line (HOL) Blocking: Yes
• Network - VLAN Support: Yes
• Network - Virtual LAN Features: Private VLAN, VLAN Identifier (VLAN ID), Voice VLAN, Tagged VLAN
• Ports & Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 24
• Ports & Interfaces - Basic Switching Ethernet RJ-45 Ports Type: Gigabit Ethernet (10/100/1000)
• Ports & Interfaces - SFP Combo Ports Quantity: 4
• Ports & Interfaces - Power Connector: DC-in jack
• Operating Conditions - Operating Temperature Range: -5 - 50 °C
• Operating Conditions - Relative Humidity Range: 0 - 95%
• Features - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Features - PoE Support: Yes
• Features - Full Duplex: Yes
• Features - Noise Level: 52 dB
• Features - LED Indicators: Yes
• Features - MTBF (Mean Time Between Failures): 277,604 h
• Features - Certifications: CE, FCC
• Cooling - Fan(s) Quantity: 2 fans
• Power - AC Input Voltage: 100 - 240 V
• Power - AC Input Frequency: 50 - 60 Hz
• Power - Maximum Power Consumption: 446 W
• Power - Power Consumption: 30 W
• Protection - Encryption/Security: HTTPS, SNMP, SSL/TLS
• Protection - MAC Address Filtering: Yes
• Protection - IGMP Snooping: Yes
• Protection - Access Control List (ACL): Yes
• Weight & Dimensions - Product Width: 440 mm
• Weight & Dimensions - Product Depth: 250 mm
• Weight & Dimensions - Product Height: 44 mm
• Weight & Dimensions - Product Weight: 3.92 kg
• Management Features - Switch Type: Managed
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - MIB Support: IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB
• Technical Details - Rack Mounting Capability: Yes
• Technical Details - Web-based Management: Yes
• Other Features - Operating System: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
• Package Contents - Hook Mounting Kit: Yes
• Package Contents - Cables: AC Power
• Package Contents - Driver CD: Yes
• Package Contents - Quick Start Guide: Yes
• Logistics Data - Harmonized System (HS) Code: 85176990
• Classification - Manufacturer Code: TPE-5028WS
• Classification - EAN: 0710931161182
• Classification - Product ID: 38146358
