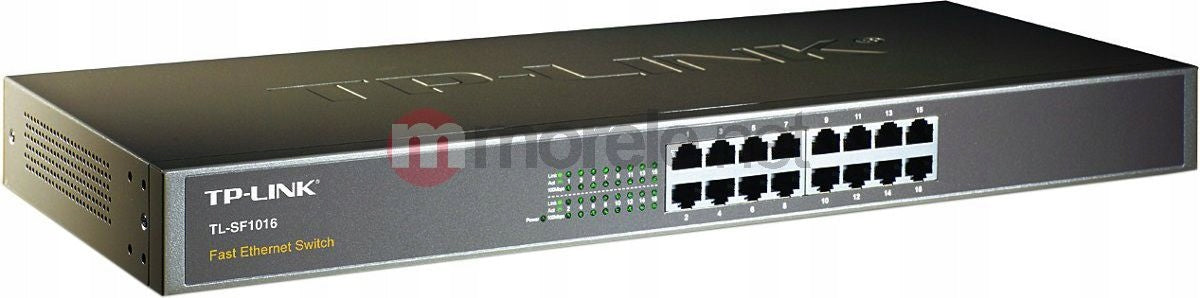

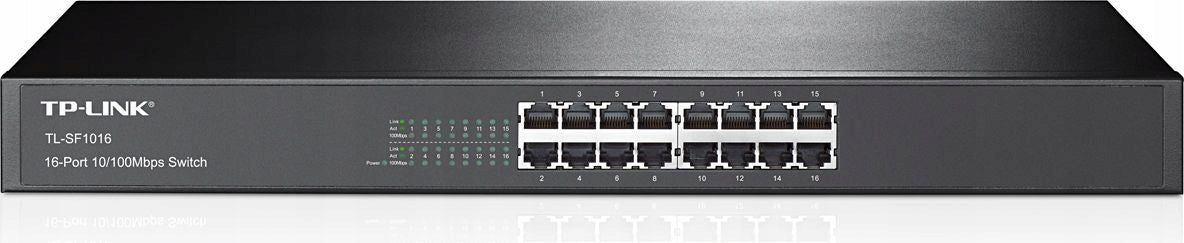

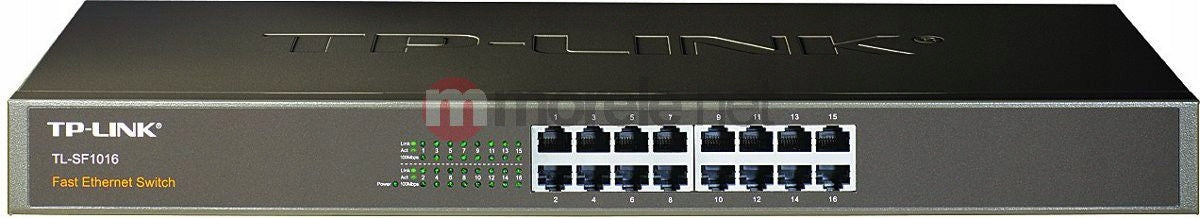

Tinklo jungiklis TP-Link TLSF1016

Trumpai apie prekę

Prekė: Tinklo jungiklis TP-Link TLSF1016. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SF1016

Switch TPLink TLSF1016

• MAC address table size: 8k
• Bus speed: 3.2Gbps
• Memory buffer: 2 MB
• Throughput: 2.4 Mpps
• Housing type: Rack
• Height [mm]: 44
• Width [mm]: 440
• Depth [mm]: 180
• Switch Layer: 2
• Manageable: No
• Port architecture: Fast Ethernet
• PoE/PoE+ connectors: No
• Number of connectors 10/100/1000: None
• Number of 10/100 connectors: 16
• Number of SFP connectors: None
• Number of connectors 100/1000/10000: None
• Weight [g]: No data available
• Total number of ports: 16
• ID: 284176

Product application

The 16-port Fast Ethernet TL-SF1016 switch is designed for users with high demands on the quality of network connections. The device is easy to use and does not have complex management functions. It is equipped with 16 10 / 100Mb / s ports. The TL-SF1016 switch is an inexpensive device that guarantees high work efficiency. It is a good choice for network administrators looking for the best solutions at the lowest possible prices.

Simple operation

The switch's automatic plug-and-play operation ensures a simple and hassle-free installation. The device does not require additional software. Thanks to the MDI/MDIX function, there is no need for crossover cables or uplink ports. The auto-negotiation function detects the transmission speed of the connected device (10 or 100Mb / s) on each port, ensuring the best work efficiency. The desktop type housing allows the device to be placed in places where there is not much free space. A safe and convenient solution is also to place the switch in the cabinet. LEDs inform about the status of the device and the detection of major transmission errors.

High work efficiency

The possibility of mounting in a rack, metal housing, safe, internal power supply and attractive price make the switch the best solution for applications in networks connecting up to 16 users. The seamless network traffic switching architecture of TL-SF10016 enables full-speed packet forwarding and filtering with maximum bandwidth. 10K jumbo frames increase the efficiency of transferring large amounts of data.
