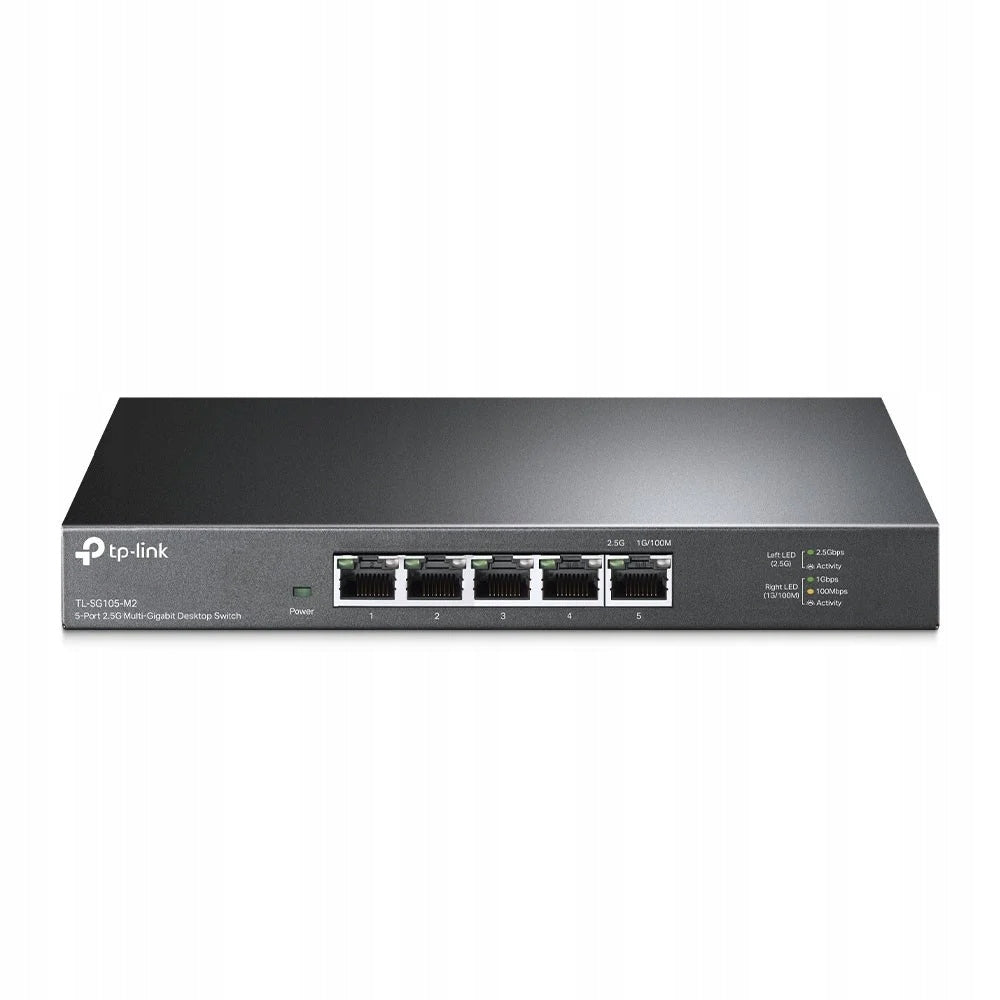

Tinklo jungiklis TP-Link TL-SG105-M2, 2.5G Ethernet, nevaldomas

Trumpai apie prekę

Prekė: Tinklo jungiklis TP-Link TL-SG105-M2, 2.5G Ethernet, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SG105-M2

EAN: 6935364052898

SKU: TL-SG105-M2

> Not managed

> Basic RJ-45 switching Number of Ethernet ports: 5

> Address table size: 16000 inputs Routing/switching throughput: 25 Gbit/s

> DC Power Supply Included

The TP-Link TL-SG105-M2 switch is an unmanaged 5-port desktop switch that is designed to meet the needs of high-speed data transfer in modern homes and small offices. Each of the five RJ-45 Ethernet ports supports speeds of 100 Mbps, 1 Gbps and 2.5 Gbps, which provides flexible connectivity options and the ability to handle bandwidth-intensive tasks without the risk of network congestion. With a switching capacity of 25 Gbit/s, this device enables fast data transfer and smooth, high-definition content streaming across multiple devices.

The TP-Link TL-SG105-M2 switch features a MAC address board that can hold up to 16 000 entries, ensuring efficient network management and fast response times to network requests. This device meets a range of network standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x and IEEE 802.3z, which guarantees its compatibility with a wide range of network protocols and increases its suitability in a variety of network environments.

Comprehensive and robust, the TP-Link TL-SG105-M2 is designed for durability and long-lasting performance, making it a valuable component in any configuration requiring reliable, high-speed internet connections. With its multi-gigabit technology, this switch stands out from the competition, offering users exceptional performance and connection stability.

Logistics data

• Harmonised system code (HS): 85176990

Weight and sizes

• Product height: 26 mm

• Product width: 209 mm

• Product depth: 126 mm

Power

• Power source: DC

• Input current: 1 A

• Power supply included: Yes

• Maximum power consumption: 12.1100

• Voltage: 12 V

Data transmission

• Package buffer memory: 1.5 MB

• Jumbo Frames extension: 10000

• Compatible with Jumbo Frames: Yes

• Store-and-forward: Yes

• Address table size: 16000 inputs

• Routing/switching throughput: 25 Gbit/s

• Transfer speed: 18,6 Mpps

Certificates

• Certificates: CE, FCC ,RoHS

Contents of the pack

• Wires: LAN (RJ-45)

• Short instruction manual: Yes

Packaging data

• Weight with packaging: 870 g

• Wires: LAN (RJ-45)

• Packaging height: 70 mm

• Packaging depth: 315 mm

• Package width: 240 mm

• Short instruction manual: Yes

Working conditions

• Temperature range (operation): 0 - 40

• Heat emission: 41.32 BTU/h

• Relative humidity range: 10 - 90

• Temperature range (storage): -40 - 70

• Relative humidity permitted: 5 - 90

Design

• Certificates: CE, FCC ,RoHS

• LEDs: Yes

• Stackable product: No

• Product color: Black

• Frame mounting options: No

Network

• Automatic MDI/MDI-X: Yes

• Auto-Negotiation: Yes

• Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

• Data transfer speed over Ethernet LAN: 10,100,1000 Mbit/s

• Support 10G: No

Ports and interfaces

• Number of SFP slots: 1

• Number of ports 2,5G Ethernet (copper): 5

• Basic RJ-45 Ethernet Switching Ports Type: 2.5G Ethernet (100/1000/2500)

• Basic RJ-45 switching Number of Ethernet ports: 5

Power over Ethernet (PoE)

• PoE support: No

Features of management

• Switch: L2

• Switch type: Not managed

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	0.87 kg
Parametry	Number of ports	5
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	6935364052898
Parametry	Manufacturer code	TL-SG105-M2
