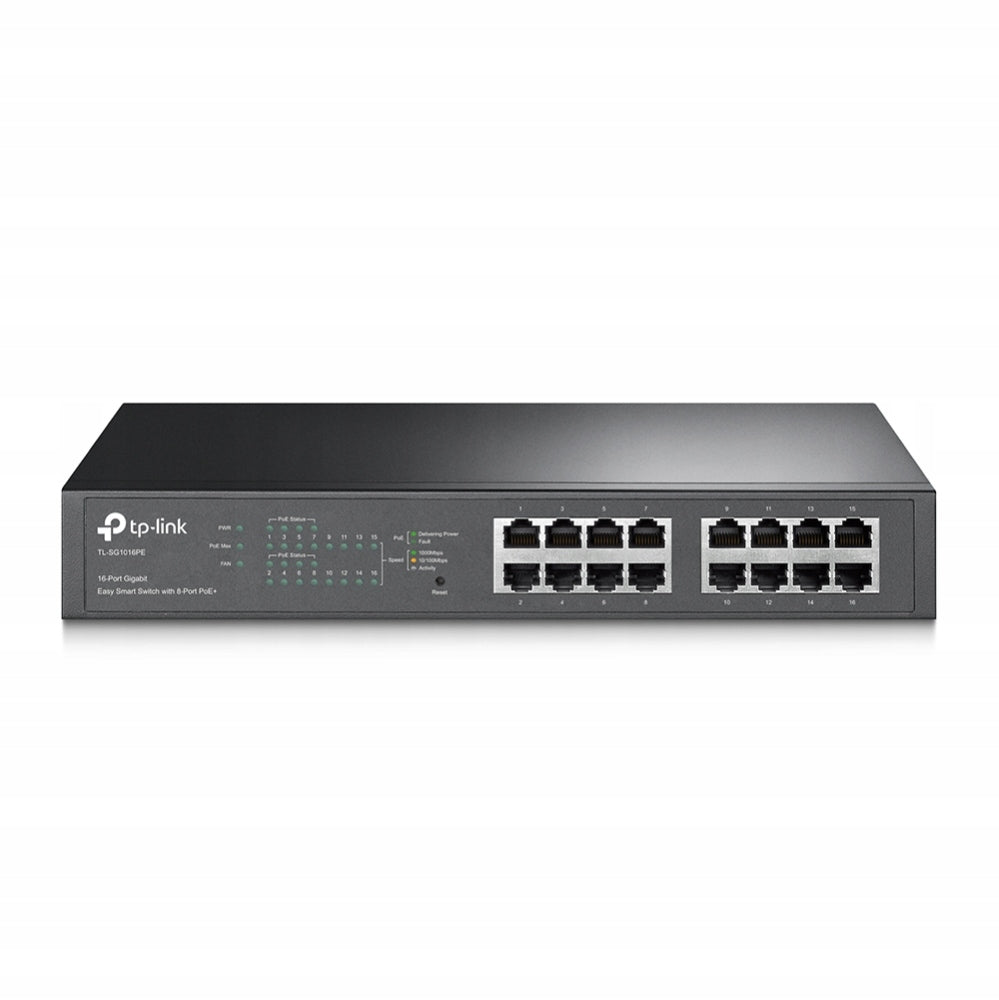

Tinklo jungiklis TP-LINK TL-SG1016PE, 16x1GbE, 8xPoE+

Trumpai apie prekę

Prekė: Tinklo jungiklis TP-LINK TL-SG1016PE, 16x1GbE, 8xPoE+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SG1016PE

Switch TP-LINK TL-SG1016PE 16x1GbE (8xPoE+)

P/N : TL-SG1016PE

Key Features :

• Sixteen RJ45 10/100/1000 Mbps ports.
• Eight PoE+-enabled ports, power and data transfer with a single cable.
• Total PoE power supply of 150 W* (up to 30 W per port).
• Compatible with IEEE 802.3af/at devices for greater coverage of your home and office network.
• Automatic restart of PoE devices that do not respond or with which the connection has been interrupted (PoE Auto Recovery function).
• Quick plug and play installation.
• Easy management through a website or configuration tool.

Application of the product

TL-SG1016PE is a 16-port switch for countertop or rack mounting with eight ports supporting the PoE+ standard. It provides the ability to quickly expand the network thanks to data transfer and power supply via a single Ethernet cable. With a total power output of 150W (up to 30W per port), the TL-SG1016PE can power high-power devices such as wireless access points, IP cameras and IP phones. In addition, the TL-SG1016PE switch is an environmentally friendly solution, as the use of energy-saving technology allows for much less power consumption.

Product action

Eight RJ45 ports of the switch support PoE+ power supply. These ports automatically detect and power PoE devices operating in IEEE 802.3af/at standards. This means that power and data are transmitted via a single cable, so the network coverage can be brought wherever electrical outlets are located or wiring is conducted and devices such as access points, IP cameras or IP phones are connected.

Overload control

The TL-SG1016PE has a port prioritization feature that is used to protect the system if the total PoE power is exceeded. If the ports use a power equal to or greater than 150 W, the port with the lowest priority is cut off from the power supply so that the other devices can continue to operate.

Port Prioritization

Prioritization (port 1>port 2>port 3>port 4>port 5>port 6>port 7>port 8): This feature helps protect your system in case of overload. For example, when ports 1, 2, 3, 4 and 6 use 30W (maximum power per port), the total power consumption will be at 150W (PoE max LED will glow green when power consumption is >=150W). If an additional 20W device is connected to port 5 of the switch, the system will cut off the power to port 6 so that the system does not become overloaded. As a result, ports 1, 2, 3 and 4 will consume a total of 120W, port 5 - 20W, and port 6 power will be turned off.

Ease of use

The TL-SG1016PE switch is easy to use and install. It does not require multi-step configuration. The countertop or rack mount enclosure and incredible performance and performance make the TL-SG1016PE switch a great choice for both home and small office.

*Total PoE power is estimated from tests carried out under laboratory conditions. The actual power of the PoE may differ from the specified value due to client device limitations and external environmental factors.

HARDWARE FEATURES

Standards and protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Ports

16 RJ45 10/100/1000 Mbps ports

Autonegotiation/AUTO-MDI/MDIX

Network wiring

10BASE-T: UTP cat. cables 3, 4, 5 (max. 100 m)

EIA/TIA-568 100Ω STP (max. 100m)

100BASE-TX: UTP cat. 5, 5e (max. 100 m)

EIA/TIA-568 100Ω STP (max. 100m)

1000BASE-T: UTP cables cat. 5, 5e, 6 or higher (max. 100 m)

EIA/TIA-568 100Ω STP (max. 100 m)

Fanless

No, 1 fan

Physical security

Yes

PoE ports (RJ45)

Standard: 802.3at

PoE ports: 1- 8 ports

PoE energy expenditure: 150 W

Dimensions (S x G x W)

294×180×44 mm (11.6×7.1×1.7 inch)

Installation

Countertop/ rack mount

Max energy consumption

8,07 W (110 V/ 60 Hz without connected PoE powered devices)

177,67 W (110 V/60 Hz with PoE powered devices with 150 W power)

Amount of heat generated

27,52 BTU/h (without connected PoE powered devices)

605,85 BTU/h (with PoE powered devices with 150 W power)

EFFICIENCY

• Switching performance: 32 Gbps
• Package redirection speed: 23,8 Mbps
• MAC address table: 8K
• Package buffer: 4,1 Mbit
• Jumbo frames: 10 KB

SOFTWARE FUNCTIONS

Quality of Service

Support for port/queue 802.1p/DSCP-based prioritization

Support for 4 priority queues

Transmission speed limiting function

Storm Control function

Features of Layer 2 switch

IGMP Snooping V1 / V2 / V3

Static link aggregation

Port mirroring

Diagnostics of cable condition

Prevention of loops

PoE Auto Recovery

VLANs

Simultaneous support up to 32 VLANs (from 4 thousand. VLAN identifiers)

MTU / Port / Tag VLAN

Management

GUI web interface

Easy Smart Configuration Utility

Method of transmission

Store-And-Forward

OTHER

Certificates

FCC, CE, RoHS

Content of the package

TL-SG1016PE

Power cable

User manual

CD

Rubber feet

Mounting elements

System requirements

Microsoft® Windows® to run the configuration tool

Working environment

Permissible operating temperature: 0℃~50℃ (32℉~122℉);

Permissible storage temperature: -40℃~70℃ (-40℉~158℉);

Permissible air humidity: 10%~90%, non-condensing

Permissible storage humidity: 5%~90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Product weight with unit packaging	2.33 kg
Parametry	Number of ports	16
Parametry	Number of LAN (RJ-45) ports	16
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	0845973098865
Parametry	Manufacturer code	TL-SG1016PE
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
