Tinklo jungiklis Renkforce RF-3394868, 8 jungtys

Trumpai apie prekę

Prekė: Tinklo jungiklis Renkforce RF-3394868, 8 jungtys. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Renkforce
• Modelis: 4053199553020

Manufacturer: Renkforce / Product number: 1697434 / Product weight: 0.52kg / EAN: 4053199553020

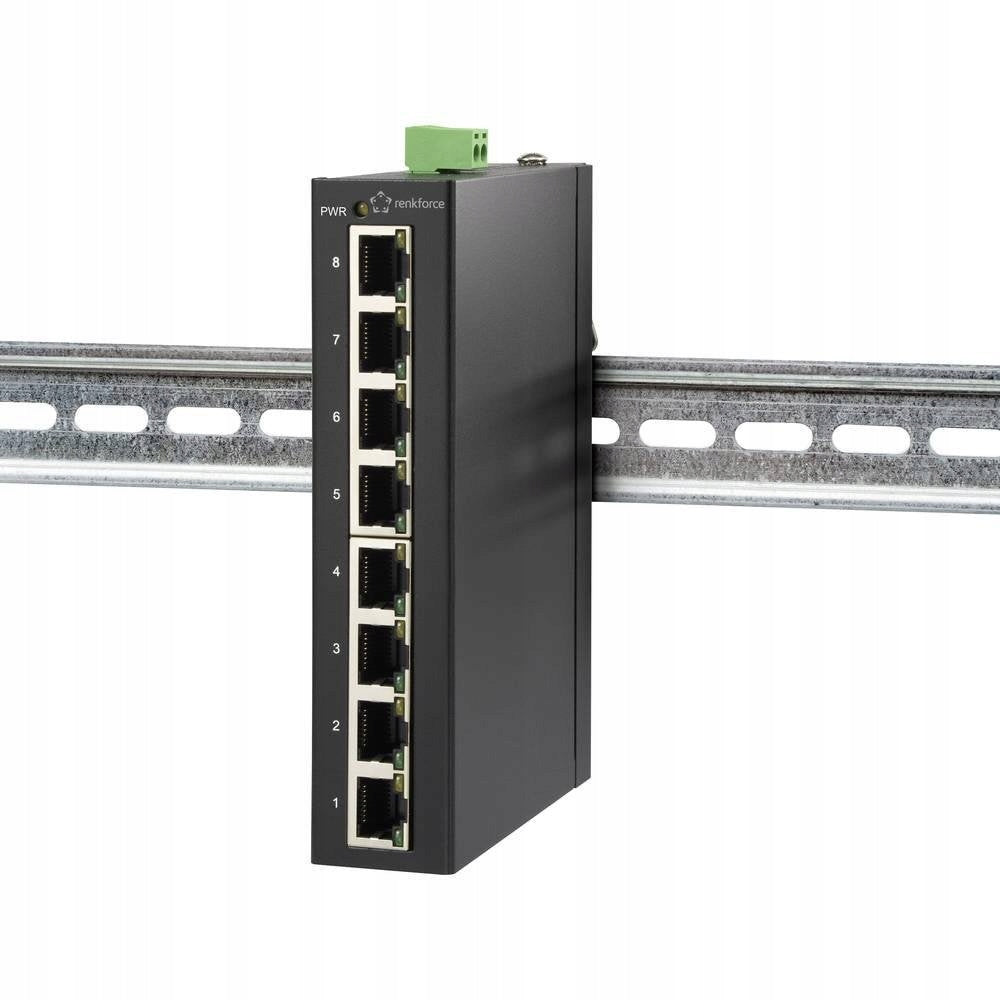

8-Port Fast Ethernet Switch renkforce for DIN Rail

This network switch is optimized for industrial use. The aluminum housing with IP-30 degree of protection is suitable for mounting on DIN rail. If necessary, each of the 5 ports can trigger an alarm in case of a link error. Power supply can also be monitored. Configuration via DP switch. Attention! The description of this product has been translated automatically.

Special features

• For wall and DIN rail mounting
• Protection class IP 30
• Wide Input Range 12~56V DC
• LAN transfer rate: 100 Mbps

Characteristic

• Maximum current consumption 6 W
• Input Power 12~56V DC Terminal Block (2 Pin 5mm)
• Operating temperature: -40 to 75 °C
• LED Indicator: Link/Act, Speed
• Flow-Control: IEEE802.3x
• Auto-MDI/MDI-X
• Store and Forward
• Full and Half-Duplex
• Protection class IP 30
• Wide Input Range 12~56V DC
• DIN rail mounting
• Standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
• Cache: 448 kbits
• EMI FCC Class A Part 15, VCCI Class A.
• EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT),
• EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
• Shock IEC60068-2-27
• Freefall IEC60068-2-32
• Vibration IEC60068-2-6

Technical data

• Certificate of resistance: IP30
• Product depth: 106 mm
• Number of Ethernet Ports: 8
• Maximum ambient temperature: 75 °C
• Minimum ambient temperature: -40 °C
• Operating voltage: 12 V/DC
• Power Consumption: 1 A
• Basic functionality: Unmanaged switch
• Product Width: 142 mm
• LAN transmission rate: 100 MBit/s
• Port Type: RJ45
• Weight: 315 g
• Product height: 31 mm

Scope of delivery

• 8-Port Network Switch, Quick Start Guide
