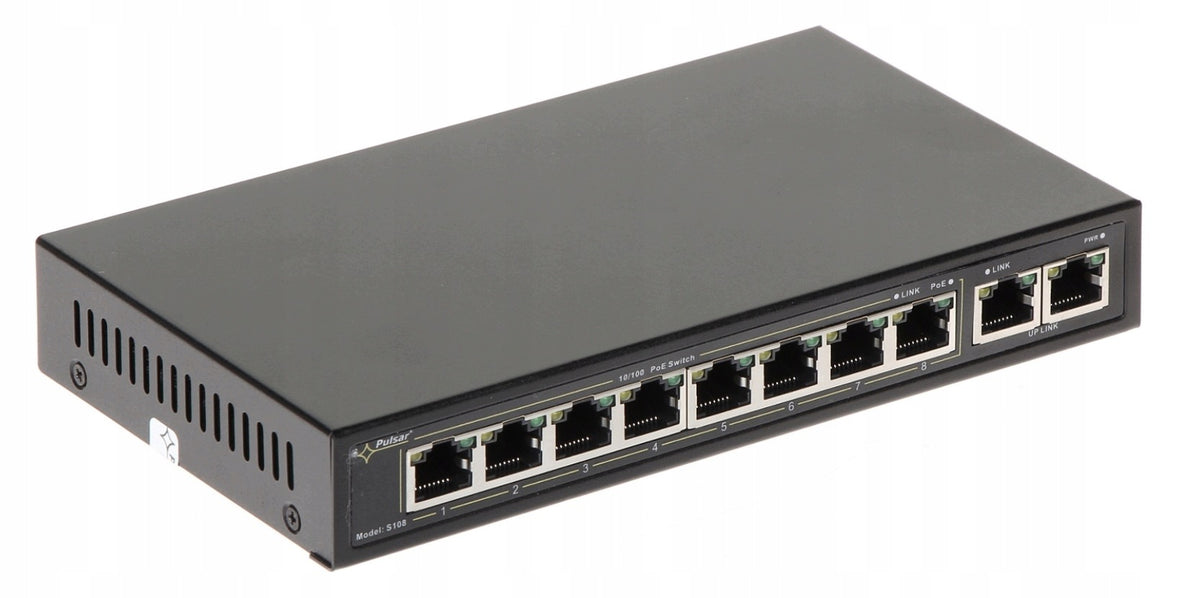

Tinklo jungiklis Pulsar S-108, 8 PoE prievadai

Trumpai apie prekę

Prekė: Tinklo jungiklis Pulsar S-108, 8 PoE prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: 569540810

Description

S108 is a 10-port PoE switch designed to power IP cameras operating in the IEEE 802.3af/at standard. Switch on ports 1 to 8 has the function of automatic detection of devices powered in the PoE standard. Two ports marked UPLINK are used to connect further network devices. On the front panel there is an indication of the operating status of the device realized on LEDs.

Product characteristics:

• 2 uplink ports 10/100 Mbps
• 8 PoE ports 10/100 Mbps
• 30W for each PoE port, support IEEE802.3af/at compliant devices
• Total power for PoE 96W
• Support for auto-learning and auto-aging addresses
• MAC (1K size chart)

• Optical signaling Desktop power supply PSD 480250
• 48VDC/2,5A/120W max. included
• Additional Mounting Hardware for Rack Cabinet

Specification

• Ports: 10 ports 10/100Mbps (8 x PoE + 2 x UPLINK 10/100Mbps)
• with automatic connection speed negotiation, Auto MDI/MDIX automatic patching)
• Power Supply: IEEE 802.3af/at PoE (1÷8), 48VDC/30W for each port *
• Protocols, Standards: IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP
• Redirect speed: 10BASE-T: 14880pps/port, 100BASE-TX: 148800pps/port
• Bandwidth: 1,6Gbps
• Transmission Method: Store-and-Forward, Optical
• Indication of work

• Power supply of the switch;
• Link/Act;
• PoE Status
• Power supply 90 ÷ 264VAC 50÷60Hz / 2,5A 230VAC
• desktop power supply PSD 480250 48VDC / 2,5A/120W max.
• Operating conditions Temperature -10°C ÷ 45°C,
• Relative humidity 5% - 90%, non-condensing
• Dimensions (W x H x D) 220 x 44 x 150 [mm]
• Additional mounting accessories in the rack
• Net / gross weight 1,27/1,50kg
• Protection class
• EN 60950-1:2007 II (second)
• Storage temperature -20°C ÷ 60°C
