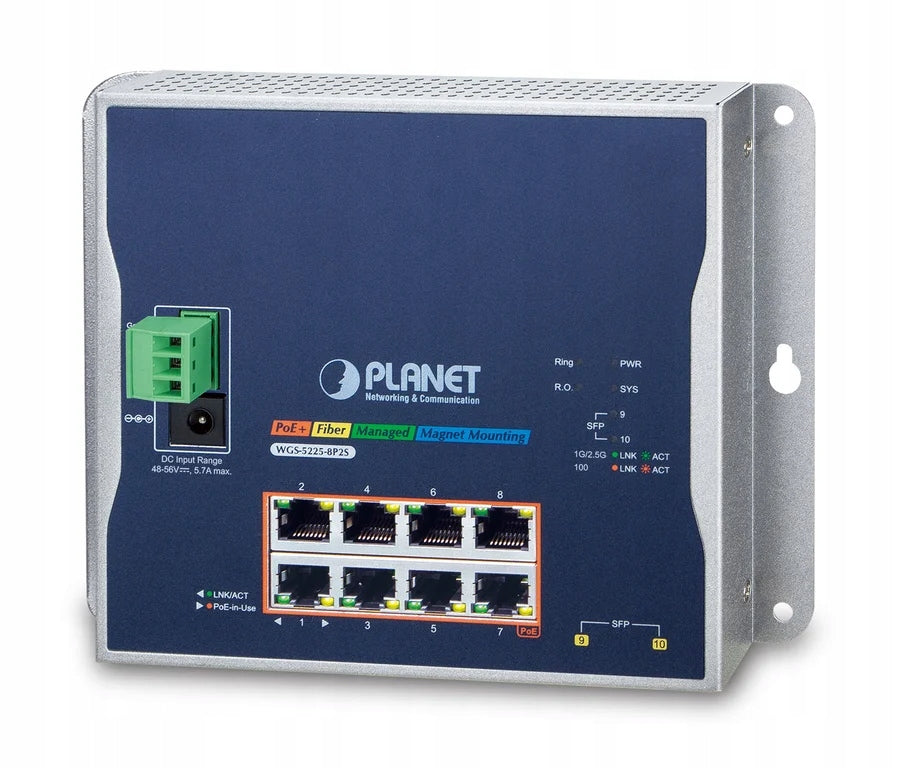

Tinklo jungiklis PLANET WGS-5225-8P2S, valdomas, Gigabit Ethernet, L2+/L4

Trumpai apie prekę

Prekė: Tinklo jungiklis PLANET WGS-5225-8P2S, valdomas, Gigabit Ethernet, L2+/L4. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: WGS-5225-8P2S

PLANET BY-5225-8P2S. Switch type: Managed, Multilayer switch: L2+/L4. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 8. Full duplex. Address table size: 8000 inputs, Routing/switching throughput: 20 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE... DC input voltage: 48 - 56 V. PoE support. Wall Mount / Ceiling Projection

✏ The most important technical parameters:

• Light - Fiber Ethernet cabling technology: 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
• Data transfer - Routing/switching bandwidth: 20 Gbit/s
• Data transfer - Bandwidth: 14,88 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Number of queues: 8
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9000
• Data transfer - Packet buffer memory: 4 MB
• Multicast Features - Multicast Support: Yes
• Power over Ethernet (PoE) - PoE Support: Yes
• Power over Ethernet (PoE) - Number of Fast Ethernet (PoE) ports: 8
• Power supply via Ethernet (PoE) - Power supply via Ethernet (PoE) power supply per port: 36 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 240 W
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 8
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Fiber optic connector: SFP
• Ports and interfaces - Number of SFP slots: 2
• Network - 10G support: No
• Network - Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3 at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
• Network - Static route: Yes
• Network - Port duplication: Yes
• Network - Full duplex: Yes
• Network - IP forwarding: Yes
• Network - Routing position: 32
• Network - Flow control support: Yes
• Network - Connection aggregator: Yes
• Network - Frequency limit: Yes
• Network - Automatic MDI/MDI-X: Yes
• Network - Spanning tree protocol: Yes
• Network - Auto-Negotiation: Yes
• Network - VLAN support: Yes
• Network - Virtual LAN Features: Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN
• Network - Number of VLANs: 4094
• Protection - Encryption / security: SNMPv3, SSH, SSL/TLS
• Protection - DHCP functions: DHCP snooping, DHCP relay
• Protection - Access Control List (ACL): Yes
• Protection - IGMP snooping: Yes
• Protection - supports SSH/SSL: Yes
• Protection - protection against entering the loop: Yes
• Protection - BPDU filtering / Protection: Yes
• Performance - Telnet: Yes
• Performance - Certificates: FCC, CE
• Features - Heat emission: 859,1 BTU/h
• Features - Device Software Updates: Yes
• Working conditions - Temperature range (operation): -40 - 75 °C
• Working conditions - Temperature range (storage): -40 - 85 °C
• Working conditions - Relative humidity range: 5 - 95%
• Working conditions - Permissible relative humidity: 5 - 95%
• Design - Colour of product: Black
• Design - LEDs: Yes
• Construction - Wall mounting / ceiling projection: Yes
• Construction - Housing material: Metal
• Construction - DIN mounting on rail: Yes
• Power - Maximum power consumption: 250,4 W
• Power - DC input voltage: 48 - 56 V
• Power - Protection against sudden voltage increase: 6 kV
• Packaging data - Strip included: Yes
• Management Features - Switch Type: Managed
• Management features - Switch layer: L2+/L4
• Management Features - Service Quality Support (QoS): Yes
• Management Features - Website Management: Yes
• Management Features - Traffic Classification: Yes
• Management Features - ARP Inspection: Yes
• Management Features - Reset Button: Yes
• Strength - IP rating: IP30
• Logistics data - Harmonised system code (HS): 85176990
• Weight and sizes - Product width: 180 mm
• Weight and sizes - Product depth: 140 mm
• Weight and sizes - Product height: 24,4 mm
• Weight and sizes - Product weight: 686 g
• Classification - Manufacturer code: WGS-5225-8P2S
• Classification - EAN: 4711605283281
• Classification - Product ID: 52134920
