Tinklo jungiklis Planet LRP-1622CS pagal užsakymą

Trumpai apie prekę

Prekė: Tinklo jungiklis Planet LRP-1622CS pagal užsakymą. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: LRP-1622CS

Planet LRP-1622CS on request

Planet

PLANET Long Reach PoE Solution enables all enterprises and network service providers to create IP infrastructure in a remote location,where devices powered in accordance with the 802.3af/at PoE standard can receive both data and power via PLANET switches and PLANET LRP extension cords and injectors over a long distance,but not limited to a normal 100 meters.

Long Range Intelligent PoE Switch in Coaxial Cable Based Network

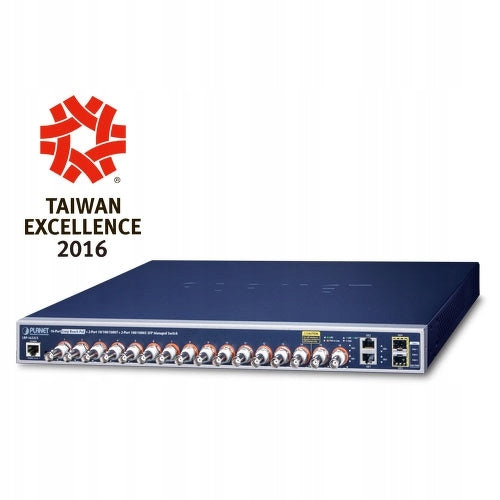

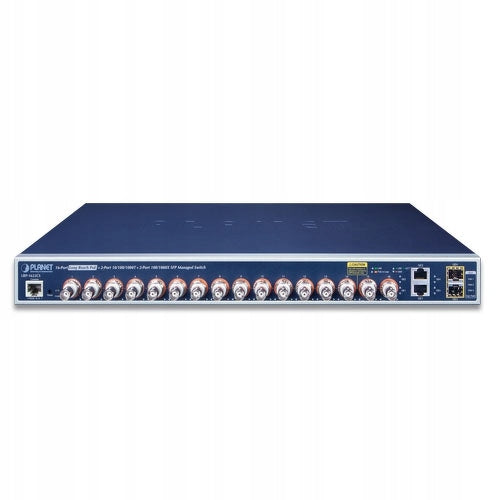

PLANET LRP-1622CS, a brand new long-range multi-channel PoE switch, allows you to extend Ethernet and PoE networks up to 1 kilometer through existing coaxial cables to multiple PoE-compatible devices. It provides dual IPv6/IPv4 stack management and built-in L2/L4 Gigabit Switching engine along with 16 BNC ports with Long Reach PoE Injector function, 2 gigabit copper ports and 2 additional 100/1000BASE-X SFP fiber optic slots. Each of the 16 BNC ports provides 36 watts of power with a total power budget of up to 440 watts. As an advanced PoE switch, the LRP-1622CS has intelligent PoE features to increase the availability of critical applications. It provides a fast, secure and cost-effective PoE networking solution to upgrade your existing coaxial cable infrastructure from analogue to HD IP surveillance system.

Long Range Multi-Channel Power Over Ethernet

To support enterprises in easily building a multi-channel and centrally controlled Long Reach PoE system, the LRP-1622CS works with Long Reach PoE Extenders, the LRP-101CE, through its 16 Long Reach PoE injector BNC ports for all connected LRP Extenders. Each of the BNC ports provides data and power transmission over a distance of up to 1000m over a coaxial cable to an LRP extender, and another 100m over an Ethernet cable to remote PoE IP cameras, wireless PoE access points or 802.3af/at PoE-compliant access control systems.

Centralized energy management

With a centrally managed 440-watt PoE budget, the LRP-1622CS eliminates the need for additional power in a remote location while allowing power from a single source to both LRP extenders and long-range PoE-powered devices. Long-range PoE capabilities help reduce installation time and deployment costs for network devices as a result of freeing yourself from the limitations associated with the location of electrical outlets.

Multi-node chain connection

The PLANET Long Reach PoE solution allows you to easily build a power system for centrally controlled IP cameras in high-availability network infrastructure. With the BNC T connector, users can expand small networks as needed by providing four nodes per port. The LRP-1622CS with 16 BNC Long Reach PoE ports is ideal for 64 IP cameras.

Multi-node chain connection

The PLANET Long Reach PoE solution can easily build a power system for centrally controlled IP cameras in high-availability network infrastructure. With the BNC T connector, users can expand small networks by providing four nodes per port as needed, making the LRP-1622CS with 16 BNC Long Reach PoE ports an ideal support for up to 64 IP cameras.

Built-in unique PoE features to manage powered devices

As a managed PoE switch for monitoring networks, wireless networks and VoIP, the LRP-1622CS has the following special PoE management features to achieve a highly efficient Long Reach network:

• PD Alive Check
• Scheduled power recycling
• PoE Schedule
• Monitoring PoE usage
• Protection against excessive PoE temperature

Intelligent status checking of powered devices

The LRP-1622CS can be configured to monitor the status of a connected PD (Powered Device) in real time through a ping action. When the PD stops working and responding, the LRP-1622CS will resume powering the PoE port and restore the PD to operation. This greatly increases network reliability by resetting the PoE port power source and reduces the administrator load.

Scheduled power recycling

The LRP-1622CS allows any of the connected PoE IP cameras or wireless PoE access points via the LRP-101CE Long Reach PoE Extender to restart at a specific time each week. This reduces the chance of an IP camera or wireless access point failing due to buffer overflow.

PoE Schedule for Energy Saving

In line with the energy saving trend around the world and contributing to environmental protection, the LRP-1622CS can effectively control the power supply, in addition to being able to supply high power. The "PoE schedule" feature helps you turn PoE power on or off for each PoE port at specific intervals, and it's a powerful feature that helps SMBs or enterprises save energy and money. It also increases security by turning off the power to PD devices that should not be used during off-business hours.

Monitoring PoE usage

The LRP-1622CS enables an administrator to monitor the power consumption status of connected PD devices in real time through a graph of power consumption in the network management interface. In this way, it significantly increases the efficiency of facility management.

PoE Over Temperature Protection System

Over-temperature protection LRP-1622CS offers safe and stable PoE performance by limiting the output power to avoid destructive failure caused by unexpected overheating.

Environmentally friendly, intelligent fan design for quiet operation

The LRP-1622CS features a 19-inch metal housing, quiet design and efficient ventilation system. It supports Smart Fan technology, which automatically controls the speed of the built-in fan to reduce noise and maintain the proper temperature of the PoE switch for optimal power output. The LRP-1622CS is able to operate reliably, stably and quietly in any environment without affecting its performance.

IPv6/IPv4 Dual Stack

Supporting both IPv6 and IPv4 protocols, the LRP-1622CS helps small and medium-sized enterprises enter the IPv6 era with the lowest investment, as network devices do not need to be replaced or renovated when creating an IPv6 FTTx edge network.

Solid Layer 2 features

The LRP-1622CS can be programmed for advanced switch management features such as dynamic port aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping and MLD Snooping. Thanks to the aggregation of links, the LRP-1622CS allows you to connect a fast drink with multiple ports, such as 8Gbps fat pipe and also supports fail-over. In addition, Link Layer Discovery Protocol (LLDP) is a Layer 2 protocol that helps you discover basic information about neighboring devices in your local broadcast domain.

Efficient traffic control

The LRP-1622CS is equipped with robust QoS capabilities and efficient traffic management to enhance services for business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control, bandwidth control per port, DSCP QoS IP priority and remarking. This ensures the best performance for VoIP transmissions and video streams, and enables enterprises to take full advantage of limited network resources.

Powerful security

PLANET LRP-1622CS offers a comprehensive IPv4/IPv6 Layer 2 to Layer 4 access control (ACL) list to enforce security at the edge. It can be used to restrict network access by rejecting packets based on source and destination IP addresses, TCP/UDP ports, or defined common network applications. The protection mechanism also includes authentication of users and devices based on port 802.1X, which can be implemented with RADIUS to ensure port-level security and block illegal users. With Protected Port, you can prevent communication between edge ports to guarantee user privacy. In addition, Port Security allows you to limit the number of network devices on a given port.

Advanced network security

The LRP-1622CS also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection features that prevent IP snooping attacks and reject ARP packets with an invalid MAC address. Network administrators can now build highly secured enterprise networks with much less time and effort than before.

Advanced network security

The LRP-1622CS also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection features that prevent IP snooping attacks and reject ARP packets with an invalid MAC address. Network administrators can now build highly secured enterprise networks with much less time and effort than before.

Friendly and secure management

For efficient management, the LRP-1622CS is equipped with console, Web, Telnet and SNMP management interfaces. With its built-in Web-based management interface, the LRP-1622CS offers an easy-to-use, platform-independent management and configuration facility. With support for the Simple Network Management Protocol (SNMP), the switch can be managed using any standard management software. For text management, you can access the switch through Telnet and the console port. In addition, the LRP-1622CS offers secure remote management by supporting SSH, SSL and SNMP v3 connections that encrypt packet contents during each session.

Flexibility and solution for long-distance expansion

The LRP-1622CS features two gigabit TP interfaces supporting 10/100/1000BASE-T RJ45, which can be connected to network devices such as NVR, Video Streaming Server or NAS for easy monitoring management. Or through other two dual SFP fiber optic sockets, it can connect to 100BASE-FX/1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber optic transceiver to uplink to backbone switch and long distance monitoring center. The distance can be increased from 550 meters to 2 kilometers (multimode fiber) and to 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM). The LRP-1622CS is well suited for enterprise data center and distribution applications.

Intelligent SFP diagnostic mechanism

The LRP-1622CS also supports SFP-DDM (Digital Diagnostic Monitor) function, which allows the network administrator to easily monitor SFP parameters in real time, such as optics output power, optics input power, temperature, laser bias current and transceiver supply voltage.

Long-range PoE IP monitoring solution

The LRP-1622CS provides robust Long Reach PoE features to prevent network interruptions and extend data and power transmission via coaxial cable up to 1 km, working with the LRP-101CE Long Reach PoE Extender. It uses PLANET’s new Long Reach PoE technology for the client’s IP surveillance network to increase the transmission distance of the system but reduce installation cost. Using Long Reach Power over Ethernet features in the LRP-1622CS, the LRP-101CE can directly connect to any IEEE 802.3at/af end node, such as IP cameras. In addition, the power management of the IP camera system can be centrally controlled by LRP-1622CS.

Highly scalable solution for robot automation system

The LRP-1622CS provides greater flexibility in network infrastructure while reducing costs. Providing 16 Fast Ethernet Long Reach PoE coaxial ports, two Gigabit TP ports and two Gigabit SFP slots, the LRP-1622CS easily Of course, the Long Reach PoE system also gives you the flexibility to expand your network of small areas with the BNC Tee Connector to share four nodes per port as needed.

• Main Port Type: RJ45
• Device Type: Media Converter
• Managed: Yes
• Application: Data Transfer
• Number of PoE Ports: 16
• PoE Power Budget: 19.8 W
• PoE Support: Yes
• Main Port Bandwidth: Gigabit Ethernet
• Quantity per Package: 2 units
• Color: Blue
• Height: 4.4 cm
• Width: 44.4 cm
• Depth: 30.1 cm
• Weight: 4.43 kg
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolskaPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	40
Parametry	EAN (GTIN)	4711605281294
Parametry	Manufacturer code	LRP-1622CS
