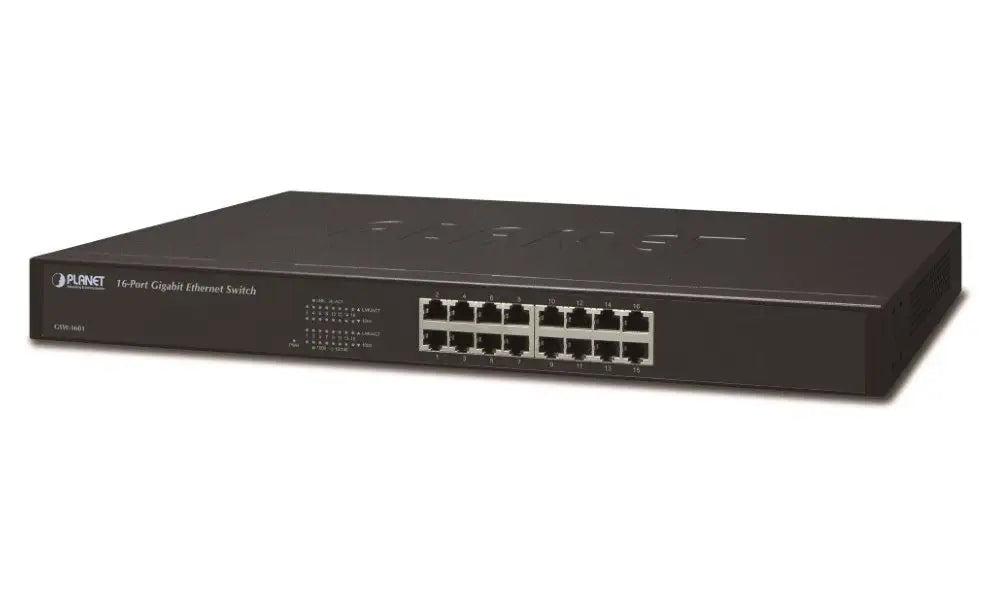

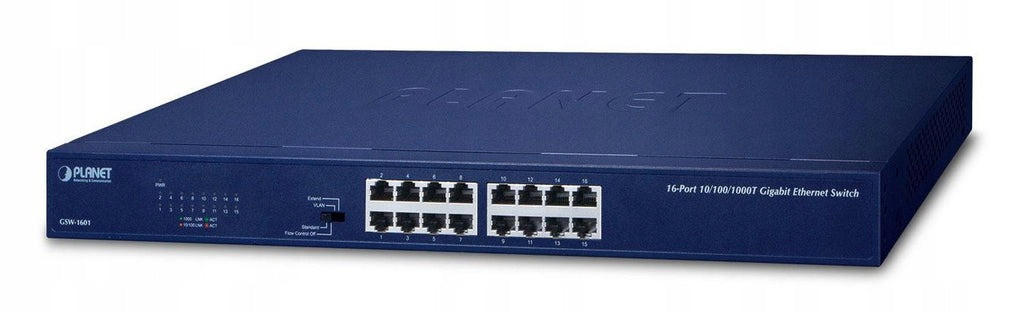

Tinklo jungiklis Planet GSW-1601, 16 prievadų, 1 Gb/s

Trumpai apie prekę

Prekė: Tinklo jungiklis Planet GSW-1601, 16 prievadų, 1 Gb/s. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GSW-1601

Producer: Planet

Construction

• Layout: 1U
• LEDs: Yes
• Stackable Product: No
• Product Color: Blue

Power

• AC Input Frequency: 50 - 60 Hz
• AC input voltage: 100 - 240 V
• Power Supply Included: No
• Power Consumption: 13 W

Weight and sizes

• Product Width: 440 mm
• Product weight: 1,8 kg
• Product depth: 208 mm
• Product height: 44 mm

Protection

• MAC Address Filtering: Yes

Management features

• Switch Type: Not Managed

Working conditions

• Permissible relative humidity: 5 - 95%
• Temperature range (operation): 0 - 50 °C
• Relative humidity range: 5 - 95%
• Temperature range (storage): -10 - 70 °C

Network

• Communication standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.3u, IEEE 802.3
• Full duplex: Yes
• Automatic MDI/MDI-X: Yes
• 10G Support: No
• Flow Control Support: Yes

Ports and interfaces

• Basic RJ-45 switching Number of Ethernet ports: 16
• Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Power Connector: DC-in jack
• Number of Gigabit Ethernet Ports: 16

Other functions

• Package Transmission Speed: 23.8Mp/s

Data transfer

• Data transfer rate: 10/100/1000Mbps
• Maximum data transfer rate: 1 Gbit/s
• Store-and-forward: Yes
• Compatible with Jumbo Frames: Yes
• Routing/switching bandwidth: 32 Gbit/s
• Address table size: 8000 inputs

Power over Ethernet (PoE)

• PoE Support: No

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Product weight with unit packaging	2.46 kg
Parametry	Number of ports	16
Parametry	EAN (GTIN)	4711213686269
Parametry	Manufacturer code	GSW-1601
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
