Tinklo jungiklis Planet GSD-803, 8 prievadų, 10/100/1000Mbps Gigabit

Trumpai apie prekę

Prekė: Tinklo jungiklis Planet GSD-803, 8 prievadų, 10/100/1000Mbps Gigabit. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GSD-803

Planet 8-P 10/100/1000Mbps Gigabit, GSD-803

Planet

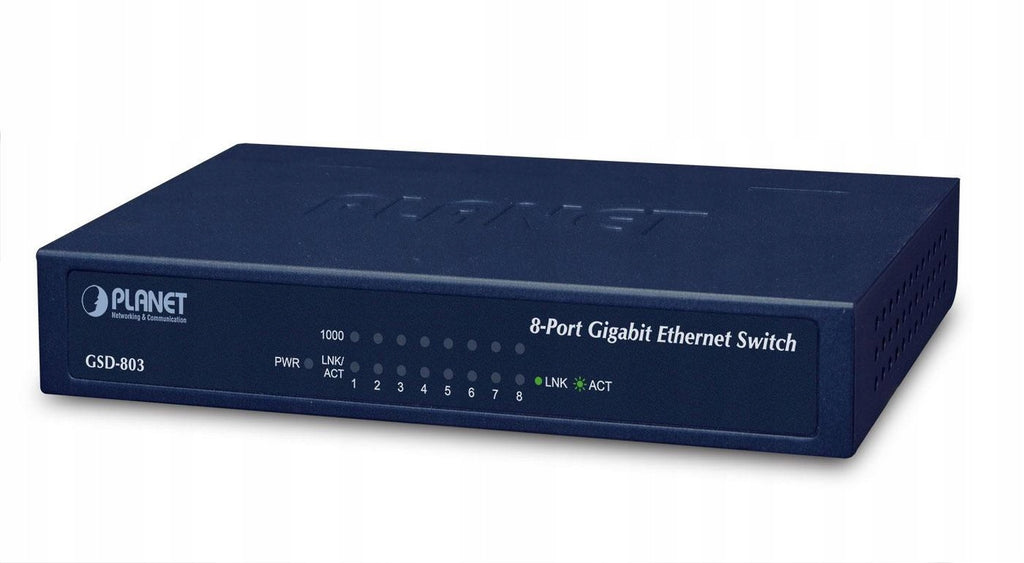

Planet 8-P 10/100/1000Mbps Gigabit Ethernet Switch (External Power) - Metal Case

• Length: 15,50
• Width: 14,80
• Height: 2,60
• EAN: 4711213682407
• Manufacturer: Planet
• Manufacturer code: GSD-803
• Country of origin: TW

8-Port Gigabit Ethernet Switch 10/100/1000Mbps

Energy Saving and High-Performance Gigabit Solution

PLANET Green Networking Switch-GSD-803 is an ideal solution that aligns with the global trend of energy saving. The GSD-803 is an 8-port Gigabit Ethernet switch that combines energy-saving benefits with Gigabit performance. It is specifically designed for home, SOHO, and enterprise network applications.

Energy Saving

The GSD-803 incorporates two advanced Green Networking technologies and can save up to 40% of energy while maintaining high performance.

(1) Port Sleep Mode Energy Saving

Port sleep mode energy saving exceeds IEEE specifications by automatically reducing power consumption for any given port when it is not connected. With the port sleep mode energy-saving technology, the GSD-803 automatically adjusts the power consumption of ports that are shut down or not connected to a network device.

(2) Intelligent Power Adjustment by Cable Length

Intelligent power adjustment, another adopted technology, is a smart algorithm that actively determines the appropriate power level based on cable length. When the GSD-803 is connected to an Ethernet cable shorter than 20 meters, the device can achieve maximum energy savings because the GSD-803 automatically detects the Ethernet cable length and reduces power consumption. The connected device can significantly reduce total power consumption, making a substantial contribution to energy saving.

Guiding Home, SOHO, and Workgroups to the Next Generation of High-Speed Networks

The GSD-803 is designed in a modern, compact metal housing, making it easy to deploy high-speed Gigabit networks in home or SOHO applications. Providing a 16Gbps switching fabric, the GSD-803 is capable of handling extremely large amounts of data in a secure topology linking to backbone or high-capacity servers. The GSD-803 offers an 8K MAC address table and gigabit-speed packet transfer without risk of packet loss. The device's high data throughput makes it ideal for most Gigabit environments, especially for networks that are to be upgraded to a Gigabit environment.

Plug & Play

All GSD-803 RJ-45 copper interfaces support 10/100/1000Mbps auto-negotiation for optimal speed detection via RJ-45 Category 5, 5e, or 6 cables. They support the standard Auto MDI/MDI-X feature, which can detect the connection type to any Ethernet device without the need for special crossover or straight-through cables.

Specifications for GSD-803

Certifications

FCC Part 15 Class B, CE Certification

Data Transmission

Jumbo Frames 9000 Support for Jumbo Frames Yes MAC Address Table 4000 entries Store and Forward Yes Switching capacity 16 Gbps Forwarding rate 11.9 Mpps

Design

FCC Part 15 Class B, CE Certification LED indicators Activity/Link/Power Product color Blue Wall-mountable Yes

Logistics Data

Harmonized System (HS) code 85176990

Network

10G support No Auto MDI/MDI-X Yes Flow control support Yes Full duplex Yes Half duplex Yes Network standards IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x

Operating Conditions

Heat dissipation 16 BTU/h Operating humidity (H-H) 5 - 95 % Operating temperature (T-T) 0 - 50 °C Storage humidity (H-H) 5 - 95 % Storage temperature (T-T) -10 - 70 °C

Package Dimensions (verified)

Verified depth 14.8 cm Verified gross weight 0.55 kg Verified height 8.7 cm Verified width 20.3 cm

Performance

Harmonized System (HS) code 85176990

Ports and Interfaces

Number of basic RJ-45 Ethernet ports 8 Type of basic RJ-45 Ethernet ports Gigabit Ethernet (10/100/1000) Number of installed SFP modules 0 Number of installed SFP+ modules 0 Power connector DC-in jack

Power

AC input voltage 5 V DC input voltage 5 V Input current 1 A Typical power consumption 3.4 W Power adapter included No

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Product Dimensions

Net weight (Product, kg) 0.36 kg Product depth 8.6 cm Product height 2.6 cm Product width 15.5 cm Brand Name Planet

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	8
Parametry	EAN (GTIN)	4711213682407
Parametry	Manufacturer code	GSD-803
