Tinklo jungiklis Planet GS-6311-48P6X

Trumpai apie prekę

Prekė: Tinklo jungiklis Planet GS-6311-48P6X. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GS-6311-48P6X

Planet GS-6311-48P6X Custom made

Planet

Resistant PoE, 10 Gbps and Layer 3 routing solution for enterprise networks

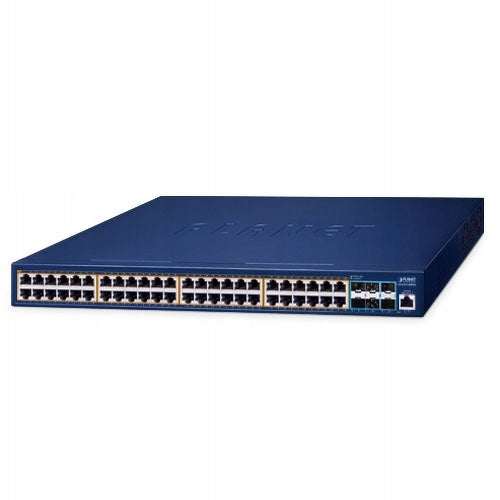

PLANET GS-6311-48P6X is a brand new managed Layer 3 gigabit switch with 10 Gbps uplink support for different types of web applications and flexible deployment. It is equipped with 48 10/100/1000BASE-T copper ports supporting the 802.3at PoE+ injector function, a total PoE power budget of up to 600W and 6 additional 1G/10GBASE-X SFP+ fiber optic ports, which are flexibly designed to increase the connection distance. It provides a fast, secure and cost-effective Power over Ethernet networking solution for IP security surveillance for small businesses and enterprises.

The GS-6311-48P6X delivers high performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 10 Gbps interfaces and a 216 Gbps switching structure, the GS-6311-48P6X can handle very large amounts of data in a secure topology that connects to an enterprise backbone network or high-capacity servers. Powerful multicast routing and network security features make the GS-6311-48P6X provide effective data traffic control for ISPs and enterprise VoIP, video streaming and multicast applications.

Centralized power management for Gigabit Ethernet PoE networks

To meet the needs of PoE network applications with higher power requirements with Gigabit transmission. The GS-6311-48P6X has 48 ports 10/100/1000BASE-T Gigabit IEEE 802.3at PoE+ with up to 30W. It perfectly meets the power requirements of VoIP PoE phones and all kinds of PoE IP cameras such as IR, PTZ, high-speed cameras and even box IP cameras with built-in fan and heater.

The GS-6311-48P6X’s PoE capabilities also help reduce the cost of deploying network devices as a result of freeing yourself from the limitations associated with the location of power outlets. Power and data switching is integrated into a single device, delivered via a single cable and centrally managed. This eliminates the cost of additional AC cabling and reduces installation time.

Intelligently check the activity of the powered device

The GS-6311-48P6X can be configured to monitor the status of a connected PD device (powered device) in real time using the ping function. When the PD device stops working and responding, the GS-6311-48P6X will resume powering the PoE port and get the PD back up and running. This will significantly increase network reliability by resetting the PD device's power source through the PoE port and reduce the administrator's management burden.

PoE Schedule for Energy Savings

In addition to its use in IP monitoring, the GS-6311-48P6X is certainly suitable for building any PoE network, including VoIP and wireless LAN. In line with the energy saving trend around the world and contributing to the protection of the environment on Earth, the GS-6311 PoE series can effectively control the power supply, in addition to the ability to deliver high power. The "PoE Schedule" feature helps you turn PoE power on or off for each PoE port at specific intervals, and it's a powerful feature that helps small and medium-sized businesses or enterprises save energy and budget.

High performance 10 Gbps Ethernet network

The six SFP+ ports built into the GS-6311-48P6X boast a high-performance switch architecture that is capable of providing non-blocking switch structure and bandwidth up to 216 Gbps, greatly simplifying LAN upgrade tasks to meet growing bandwidth requirements. Each SFP+ port supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, which means that an administrator can now flexibly select the appropriate SFP/SFP+ transceiver depending on the transmission distance or transmission speed required for efficient network expansion.

Redundant ring, fast recovery for critical network applications

The GS-6311-48P6X supports redundant ring technology and has a strong, fast self-healing capability to prevent interruptions and external intrusions. It includes advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) in the client network to increase system reliability and runtime in harsh environments. On some simple Ring networks, the recovery time may be less than 10 ms to quickly restore the network to normal operation.

Support for Layer 3 routing

The GS-6311-48P6X enables an administrator to conveniently increase network performance by manually configuring Layer 3 static routing, automatic RIP (Routing Information Protocol) or Open Shortest Path First (OSPF) configuration.

• The RIP protocol can use the number of hops as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in the path from source to destination.
• OSPF is an internal dynamic routing protocol for a standalone system based on the state of the link. The protocol creates a database for the link state by exchanging link states between Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Strong multicast

The GS-6311-48P6X supports multiple multicast functions. In Layer 2 it has IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping functions. In multicast protocols, Layer 3 supports IGMPv1/v2/v3. With Multicast VLAN Register (MVR), receiver/multicast broadcaster control and detection of illegal multicast sources, the GS-6311-48P6X is perfect for any robust network.

Full IPv6 support

The GS-6311-48P6X provides IPv6 management and secure enterprise-level features such as SSH, ACL, WRR and RADIUS authentication. In doing so, it helps enterprises enter the IPv6 era with the lowest investment. In addition, you don't need to replace network devices when you build an IPv6 FTTx edge network.

Solid Layer 2 features

The GS-6311-48P6X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree protocol, bandwidth control and IGMP snooping. The switch provides VLAN functions with 802.1Q, Q-in-Q, voice VLAN and GVRP protocol tags. Supporting port aggregation, the GS-6311-48P6X enables high-speed trunking combined with multiple ports. Allows up to 64 groups for trunking with up to 8 ports for each group.

Excellent motion control from Layer 2 to Layer 4

The GS-6311-48P6X is equipped with powerful traffic management and WRR features to enhance the services offered by telecommunications. WRR features include Layer 4 traffic classifiers and bandwidth constraints, which are particularly useful for multi-tenant entities, business units, Telco or network service applications. It also enables enterprises to take full advantage of limited network resources and guarantees the best VoIP and video conferencing.

Powerful network security

The GS-6311-48P6X offers a comprehensive list of access controls (ACLs) from Layer 2 to Layer 4 to enforce security at the network edge. It can be used to restrict network access by rejecting packets based on source and destination IP addresses, TCP/UDP ports, or defined common network applications. The protection mechanism also includes port-based 802.1x user and device authentication, MAC and Web-based, which can be deployed with RADIUS to ensure port-level security and block illegal users.

Advanced IP network protection

The GS-6311-48P6X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection features that prevent IP snooping attacks and reject ARP packets with an invalid MAC address. Network administrators can now build highly secure enterprise networks with much less time and effort than before.

Efficient and secure management

For efficient management, the GS-6311-48P6X is equipped with console, network and SNMP management interfaces.

• With its built-in Web-based management interface, the GS-6311-48P6X offers easy-to-use, platform-agnostic management and configuration features.
• Text management can be accessed through Telnet and the console port. To reduce product learning time, the GS-6311-48P6X offers Cisco-like commands, and the customer doesn't need to learn new commands from these switches
• For standard monitoring and management software, it offers an SNMPv3 connection that encrypts packet contents during each session for secure remote management. In addition, the GS-6311-48P6X offers secure remote management by supporting an SSHv2 connection that encrypts packet content during each session.

Intelligent SFP diagnostic mechanism

The GS-6311-48P6X supports SFP-DDM (Digital Diagnostic Monitor) function, which greatly helps the network administrator to easily monitor the parameters of SFP and SFP+ transceivers in real time, such as optical output power, optical input power, temperature, laser polarization current and transceiver supply voltage.

• Quantity in bulk package: 2 pcs
• Height: 4.45 cm
• Width: 44 cm
• Depth: 33 cm
• Weight: 5.3 kg
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolandPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	48
Parametry	EAN (GTIN)	4711605287272
Parametry	Manufacturer code	GS-6311-48P6X
