Tinklo jungiklis Mikrotik CRS318-16P-2S+OUT, 16x GbE, 2x SFP+

Trumpai apie prekę

Prekė: Tinklo jungiklis Mikrotik CRS318-16P-2S+OUT, 16x GbE, 2x SFP+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: MikroTik
• Modelis: CRS318-16P-2S+OUT

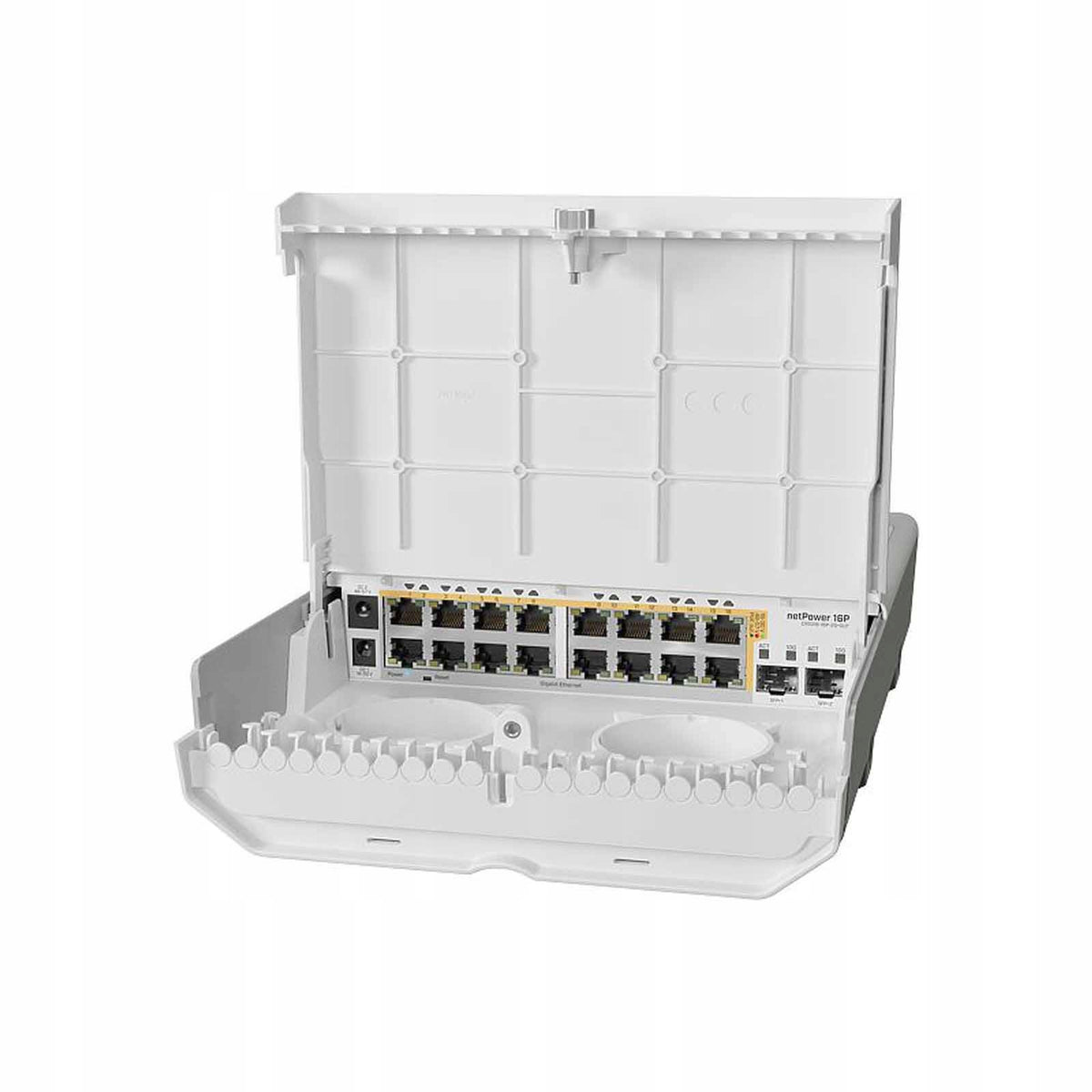

Switch Mikrotik 16xGbE 2xSFP+ CRS318-16P-2S+OUT

Powering several access points or IP cameras and several parent links on the tower has never been easier. NetPower 16P has 16 Gigabit Ethernet ports with PoE output and two SFP+ ports for 10G fiber optic uplinks.

Its robust and compact exterior allows the switch to be installed in any environment from damp attics and shafts to towers, masts and poles. NetPower 16P has a non-blocking bandwidth of 36 Gbps, a switching capacity of 72 Gbps and a forwarding rate of 53,6 Mp/s.

The device itself does not have a built-in voltage converter. You need a 24V power supply to have a 24V PoE output and/or a 48V power supply to have a 48V PoE output (IEEE 802.3 at/af). The power supply is not included with the product. You can use your preferred power option, such as a rechargeable battery, etc. Also compatible with MikroTik 24HPOW, 48POW and 48V2A96W power supplies.

Specification:

• Switch class: Managed
• Application: Medium and large companies
• Network architecture: GigabitEthernet
• Number of ports 10/100 Mbps: None
• Number of ports 10/100/1000 Mbps: 16
• Number of ports 10/100/1000/2500 Mbps: None
• Number of 10Gb ports: None
• Number of PoE ports (PoE + PoE+): None
• Number of PoE+ ports: None
• Number of COMBO ports: None
• Number of SFP ports: None
• Number of SFP+ ports: 2
• Number of QSFP+ ports: None
• Console port: No
• Power consumption: 316 W
• Working time between failures (MTBF): 200000 h
• Power supply:
• Number of DC inputs: 2 (DC socket)
• DC jack input (voltage): 18-30V / 48-57V
• Maximum power consumption: 316 W
• Maximum power consumption without attachments: 16 W
• Dimensions: 303 x 212 x 78 mm
• Other parameters:
• Architecture: 32-bit ARM
• Processor: 98DX226S
• Number of Processor Cores: 1
• Nominal processor frequency: 800 MHz
• RouterOS License: 5
• Operating System: RouterOS/SwitchOS
• RAM Size: 256 MB
• Memory Size: 16 MB
• Memory Type: Flash
• Tested ambient temperature: -40°C to 70°C

Specifications
