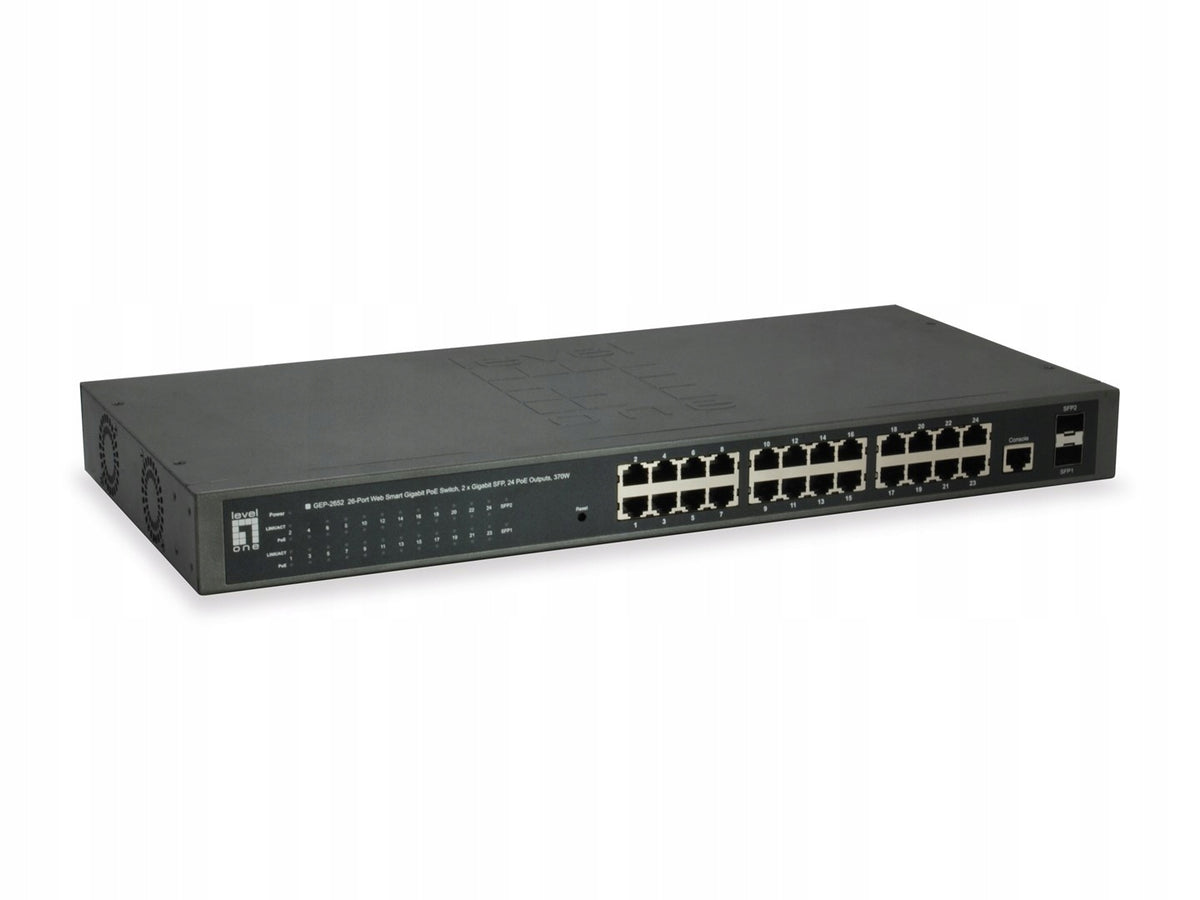

Tinklo jungiklis LevelOne WebSmart, 26 PoE+ (370W), 1Gbps, 19

Trumpai apie prekę

Prekė: Tinklo jungiklis LevelOne WebSmart, 26 PoE+ (370W), 1Gbps, 19. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: LevelOne
• Modelis: 5830942

Construction

• Reset button: Yes
• Product color: Gray
• LED indicators: PoE, Link, Power
• Rack mounting capabilities: Yes
• Housing material: Metal

Power

• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Input current: 6.5 A
• Power consumption (max): 435 W

Weight & Dimensions

• Product width: 440 mm
• Product depth: 208 mm
• Product weight: 3.87 kg
• Product height: 44 mm

Protection

• Authentication: Guest VLAN, Web authentication
• DoS attack prevention: Yes
• Access Control List (ACL): Yes
• IGMP proxy: Yes
• Queue scheduling algorithms: Weighted Round Robin (WRR), Priority queuing (PQ)
• Encryption/security: SNMPv3
• IGMP snooping: Yes
• SSH/SSL support: Yes
• DHCP features: DHCP snooping
• Password protection: Yes
• Authentication type: RADIUS

Management Features

• ARP inspection: Yes
• Switch layer: L2
• Switch type: Managed
• Quality of Service (QoS) support: Yes

Operating Conditions

• Operating relative humidity: 5 - 90%
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity: 10 - 90%
• Operating temperature (T-T): 0 - 45 °C

Network

• Communication standards: IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ag, IEEE 802.3z, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1D, IEEE 802.1p
• VLAN features: Protocol-based VLAN, VLAN Identifier (VLAN ID), MAC address-based VLAN, Port-based VLAN, Voice VLAN, Tagged VLAN
• Network virtualization technologies: Q-in-Q tunneling
• Spanning Tree Protocol: Yes
• Traffic control: Yes
• Rate limiting: Yes
• Port mirroring: Yes
• QinQ deployment: Selective QinQ
• Link aggregation: Yes
• 10G support: No
• VLAN support: Yes
• Number of VLANs: 4000

Performance

• Telnet: Yes
• Device firmware updates: Yes
• Internal memory: 8 MB

Package Details

• Rubber feet: Yes
• Gross weight: 4.2 kg
• Packaging type: Box
• Driver/firmware CD: Yes
• Package depth: 295 mm

Package Contents

• Hook mounting kit: Yes
• Quick start guide: Yes
• Cables: AC

Certificates

• Compliance certificates: RoHS
• Certifications: CE

Protocols

• GARP VLAN Registration Protocol (GVRP): Yes
• IPv4 and IPv6 features: IPv6 Telnet

Ports & Interfaces

• Number of Gigabit Ethernet ports: 24
• Number of SFP module slots: 2
• Power connector: AC input jack
• Console port: RJ-45
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity: 24

Logistics Data

• Country of origin: China
• Harmonized System (HS) code: 85176990

Data Transfer

• Forwarding rate: 38.69 Mpps
• Store-and-forward: Yes
• Jumbo Frames support: Yes
• Jumbo Frames: 9000
• Packet buffer memory: 128 MB
• MAC address table: 8000 entries

Power over Ethernet (PoE)

• PoE support: Yes
• Number of Fast Ethernet (PoE) ports: 24
• Total Power over Ethernet (PoE) budget: 370 W
• Power per PoE port: 30 W

Multicast Features

• Multicast support: Yes
• Multicast Listener Discovery (MLD) snooping: v1/v2

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	LevelOne
Parametry	Product weight with unit packaging	4.2 kg
Parametry	Number of ports	26
Parametry	EAN (GTIN)	4015867207932
Parametry	Manufacturer code	5830942
