Trumpai apie prekę

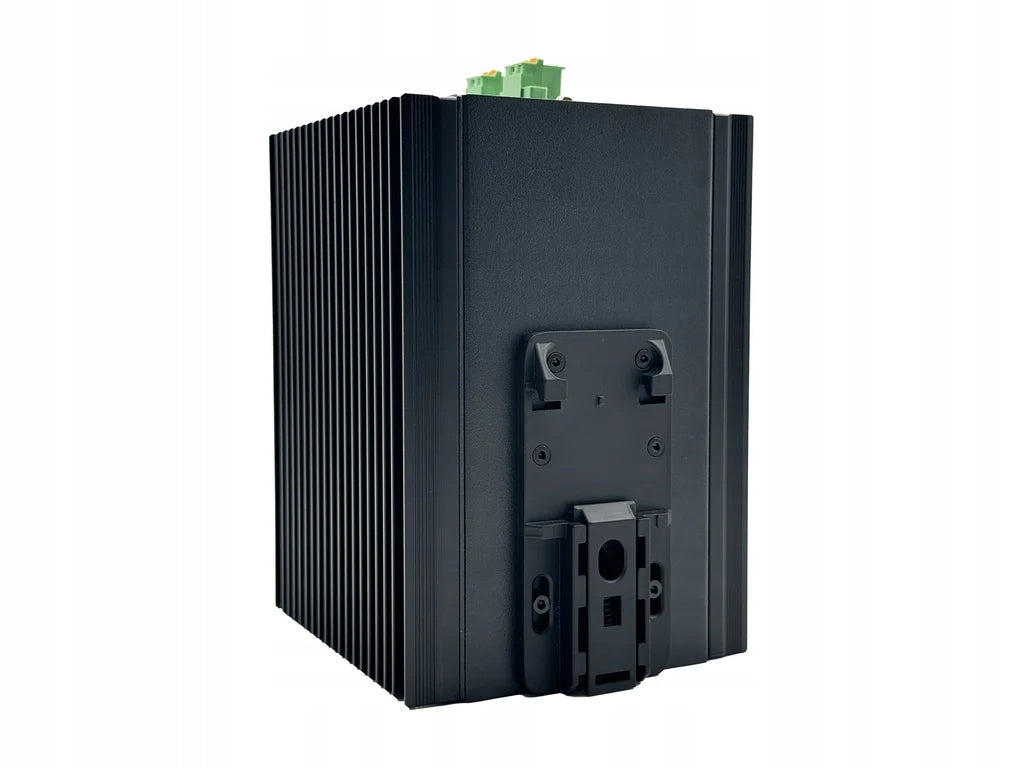

Prekė: Tinklo jungiklis LevelOne IGX-2072, valdomas, L2+, Gigabit Ethernet. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: LevelOne
- Modelis: 514899
LevelOne IGX-2072. Switch Type: Managed, Switch Layer: L2+. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 8, Console Port: RJ-45. Address table size: 16000 inputs, Routing/switching throughput: 112 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE...
✏ Most important technical parameters:
- Operating conditions - Relative humidity range: 10 - 90%
- Operating conditions - Permissible relative humidity: 5 - 95%
- Operating conditions - Temperature range (operation): -40 - 80 °C
- Operating conditions - Temperature range (storage): -40 - 85 °C
- Features - Voltage surge protection: Yes
- Data Transfer - Routing/Switching Throughput: 112 Gbit/s
- Data Transfer - Address Table Size: 16000 entries
- Data Transfer - Jumbo Frames Extension: 10000
- Data Transfer - Packet Buffer Memory: 12 MB
- Protection - Encryption/Security: HTTPS
- Protection - Access Control List (ACL): Yes
- Protection - MAC Address Filtering: Yes
- Protection - System Event Report: Yes
- Protection - DHCP Features: DHCP server
- Protection - Password Protection: Yes
- Protection - IGMP snooping: Yes
- Security - Authentication type: IEEE 802.1x
- Protection - protection against entering a loop: Yes
- Protection - IP-MAC-Port Binding: Yes
- Protection - Queue planning algorithms: SP, Weighted Round Robin (WRR)
- Protection - Packet Filtering: Yes
- Display - MTBF (Mean Time Between Failures): 200000 h
- Network - 10G Support: Yes
- Network - Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Network - Multicast Support: Yes
- Network - Jumbo Frames Compatible: Yes
- Network - Static Route: Yes
- Network - Port Mirroring: Yes
- Network - Flow Control Support: Yes
- Network - Connection Aggregator: Yes
- Network - Traffic Growth Control: Yes
- Network - Frequency Limit: Yes
- Network - Spanning Tree Protocol: Yes
- Network - Cable length measurement: Yes
- Network - Ethernet Ring Protection Switching (ERPS): Yes
- Network - VLAN Support: Yes
- Network - Virtual LAN features: IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping
- Construction - Product Color: Black
- Design - LEDs: Ring, System, USB
- Design - DIN rail mounting: Yes
- Performance - Number of USB Type-A ports: 1
- Performance - Telnet: Yes
- Dying Gasp Performance: Yes
- Efficiency - Fanless: Yes
- Ports and Interfaces - Basic RJ-45 Switching Number of Ethernet Ports: 8
- Ports and Interfaces - Basic Ethernet Switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Ports and interfaces - Number of Gigabit Ethernet ports: 8
- Ports and interfaces - Number of SFP module slots: 8
- Ports and interfaces - Number of SFP+ module slots: 4
- Ports and Interfaces - Console Port: RJ-45
- Ports and Interfaces - Terminal Port Blocking: Yes
- Management Features - Switch Type: Managed
- Management Features - Switch Layer: L2+
- Management Features - Website Management: Yes
- Management Features - Quality of Service (QoS): Yes
- Management Features - ARP Inspection: Yes
- Management Features - Configuring Location Settings (CLI): Yes
- Management Features - Device Software Updates: Yes
- Power - Power Source: DC
- Power - Power Backup Support (RPS): Yes
- Power - Maximum power consumption: 27 W
- Power - PoE Support: No
- Power - Voltage: 12 - 75 V
- Power - Surge Protection: 6 kV
- Protocols - GARP VLAN Registration Protocol (GVRP): Yes
- Protocols - IP Source Protection (IPSG): Yes
- Durability - IP protection class: IP40
- Weight and dimensions - Product weight: 1.79 kg
- Weight and dimensions - Product width: 110 mm
- Weight and dimensions - Product depth: 115 mm
- Weight and dimensions - Product height: 158 mm
- Packaging Details - DIN Rail Included: Yes
- Packaging data - Packaging width: 232 mm
- Packaging data - Packaging depth: 180 mm
- Packaging data - Packaging height: 138 mm
- Packaging data - Weight with packaging: 2.12 kg
- Package Contents - Quick Start Guide: Yes
- Package Contents - Cables: LAN (RJ-45) to DB9
- Logistics data - Harmonized System (HS) code: 851762
- Logistics data - Gross pallet width: 120 cm
- Logistics data - Gross pallet length: 80 cm
- Logistics data - Gross pallet height: 167.4 cm
- Logistics data - Width of the collection box (external): 440 mm
- Logistic data - Length of the main (outer) box: 375 mm
- Logistics data - Height of the standard (external) box: 255 mm
- Logistic data - Gross weight of the main (outer) housing: 15 kg
- Logistics data - Products in the main (outer) box: 6 pcs.
- Logistics data - Country of origin: China
- Technical details - Compliance certificates: UKCA, Federal Communications Commission (FCC), RoHS, CE
- Classification - Manufacturer's code: IGX-2072
- Classification - EAN: 4015867239285
- Classification - Product ID: 124244999
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | LevelOne |
| Parametry | Product weight with unit packaging | 2.12 kg |
| Parametry | Number of ports | 20 |
| Parametry | EAN (GTIN) | 4015867239285 |
| Parametry | Manufacturer code | 514899 |
