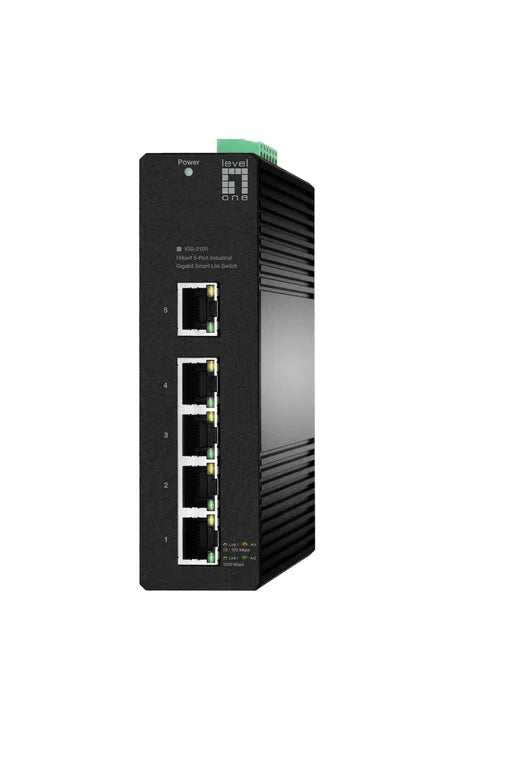

Tinklo jungiklis LevelOne IGS-2105, valdomas, L2, gigabitinis Ethernet

Trumpai apie prekę

Prekė: Tinklo jungiklis LevelOne IGS-2105, valdomas, L2, gigabitinis Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: LevelOne
• Modelis: 458012

LevelOne IGS-2105. Switch Type: Managed, Switch Layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 5. Full duplex. Address table size: 2000 inputs, Routing/switching throughput: 10 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3u, IEEE... DC Input Voltage: 12 - 57 V

✏ The most important technical parameters:

• Multicast Features - Multicast Support: Yes
• Power over Ethernet (PoE) - PoE Support: No
• Design - Colour of product: Black
• Design - LEDs: Operation, Link, Power supply
• Construction - DIN mounting on rail: Yes
• Performance - Without windmill: Yes
• Data carrier - Flash memory size: 2 MB
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 5
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Gigabit Ethernet ports: 5
• Ports and interfaces - Number of connection ports: 1
• Sustainability - Compliance with the principles of sustainable development: Yes
• Network - 10G support: No
• Network - Copper Ethernet cabling technology: 100BASE-TX, 10BASE-T, 1000BASE-T
• Network - Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• Network - Compatible with Jumbo Frames: Yes
• Network - Jumbo Frames extension: 9000
• Network - VLAN support: Yes
• Network - Automatic MDI/MDI-X: Yes
• Network - Port duplication: Yes
• Network - Full duplex: Yes
• Network - Half duplex: Yes
• Network - Flow control support: Yes
• Network - Service Quality (QoS): Yes
• Network - Connection aggregator: Yes
• Network - Traffic increase control: Yes
• Network - Frequency limit: Yes
• Network - Spanning tree protocol: Yes
• Network - Auto-Negotiation: Yes
• Network - Supported MAC address auto-learning: Yes
• Network - Supported auto-aging MAC addresses: Yes
• Network - Virtual LAN Features: Tagged VLAN
• Network - Number of VLANs: 32
• Data transfer - Routing/switching bandwidth: 10 Gbit/s
• Data transfer - Forwarding speed: 7,44 Mpps
• Data transfer - Address table size: 2000 inputs
• Data transfer - Packet buffer memory: 1,5 MB
• Weight and sizes - Product height: 38,5 mm
• Weight and sizes - Product weight: 430 g
• Weight and sizes - Product width: 136 mm
• Weight and sizes - Product depth: 108 mm
• Management Features - Switch Type: Managed
• Management features - Switch layer: L2
• Management Features - Website Management: Yes
• Features - Protection against sudden voltage increase: Yes
• Features - Noise level: 0 dB
• Features - MTBF (Mean Interval Period): 43800 h
• Protection - IGMP snooping: Yes
• Features - Country of origin: China
• Protection - Queue planning algorithms: Priority queuing (PQ)
• Power - Power Source: DC
• Power - Backup Power Support (RPS): Yes
• Power - DC input voltage: 12 - 57 V
• Power - Power consumption: 5 W
• Power - Power Protection Features: Surge Protection
• Power - Protection against sudden voltage increase: 4 kV
• Power Supply - Power Supply Included: No
• Strength - IP rating: IP30
• Technical details - Layers on pallet (air): 16 pcs.
• Certificates - Certificates of conformity: CE, Federal Communications Commission (FCC), RoHS, UKCA
• Packaging data - DIN rail included: Yes
• Packaging data - Package width: 191 mm
• Packaging data - Package depth: 135 mm
• Packaging data - Package height: 60 mm
• Packaging data - Weight including packaging: 680 g
• Packaging data - Packaging type: Box
• Content of the package - Quick Start Guide: Yes
• Package Contents - Strip Included: Yes
• Working conditions - Permissible relative humidity: 5 - 95%
• Working conditions - Temperature range (operation): -40 - 75 °C
• Working conditions - Temperature range (storage): -40 - 85 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Heat emission: 17,06 BTU/h
• Logistics data - Gross width of pallet: 120 cm
• Logistics data - Gross pallet length: 80 cm
• Logistics data - Gross pallet height: 154,4 cm
• Logistics data - Harmonised system code (HS): 8517620090
• Logistics data - Products in main box (external): 34 pcs.
• Logistics data - Width of bulk box (external): 480 mm
• Logistics data - Length of main box (external): 395 mm
• Logistics data - Height of reference box (external): 350 mm
• Logistics data - Gross weight of main housing (external): 24 kg
• Classification - Manufacturer code: IGS-2105
• Classification - EAN: 4015867236147
• Classification - Product ID: 119525433

Specifications
