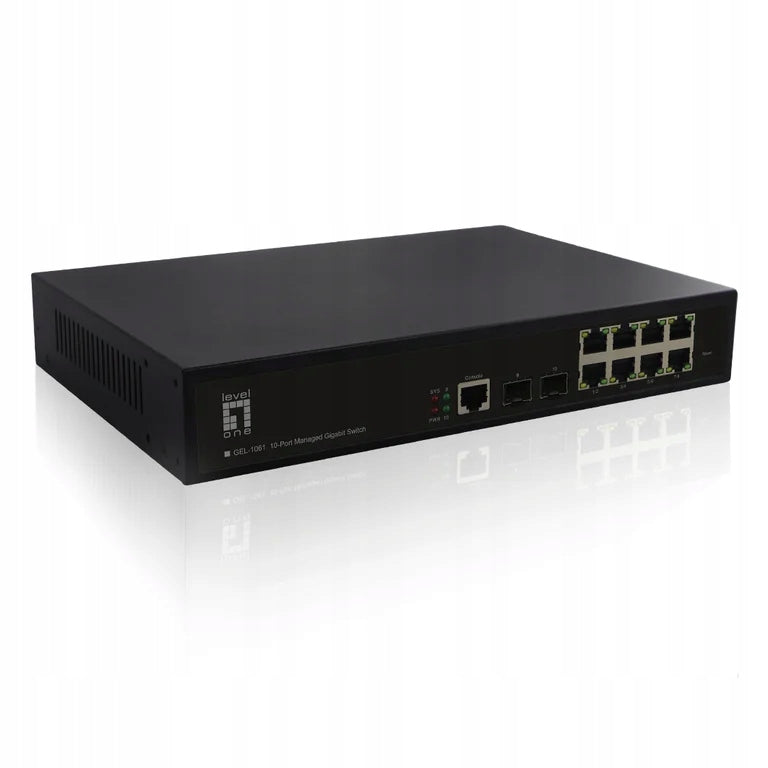

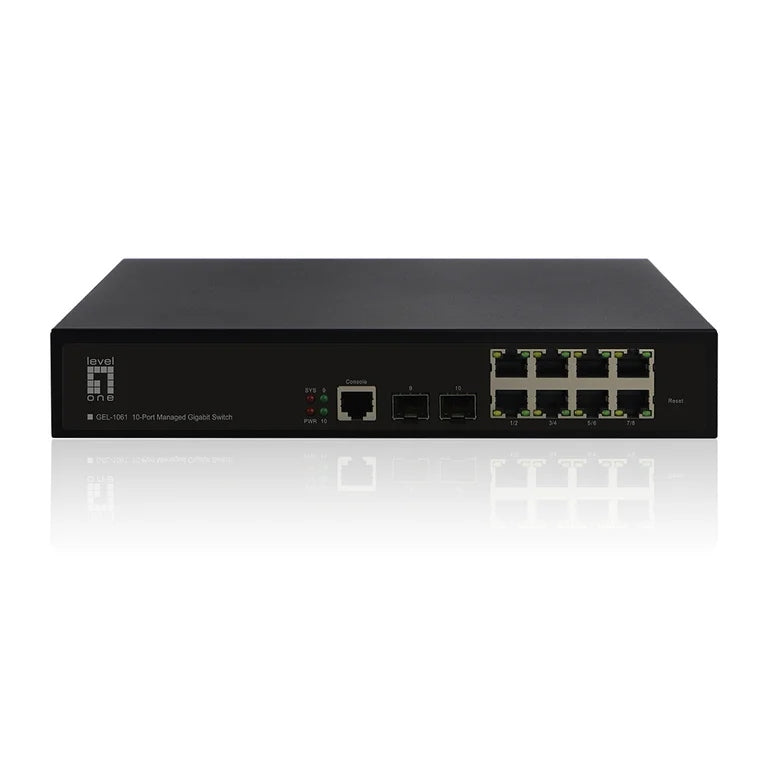

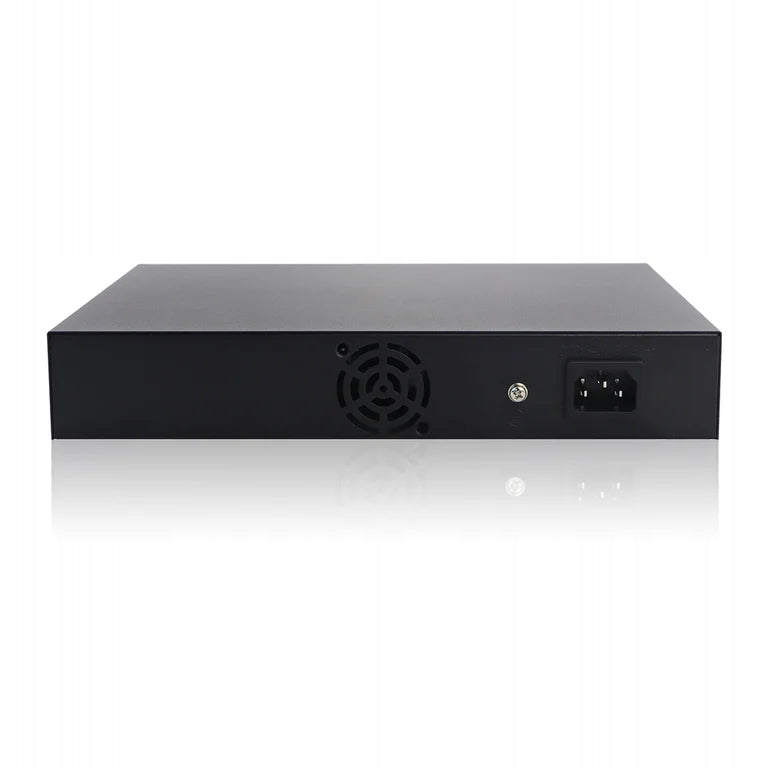

Tinklo jungiklis LevelOne GEL-1061, valdomas, L2, Gigabit Ethernet

Trumpai apie prekę

Prekė: Tinklo jungiklis LevelOne GEL-1061, valdomas, L2, Gigabit Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: LevelOne
• Modelis: GEL-1061

LevelOne GEL-1061. Switch Type: Managed, Switch Layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 8, Console Port: RJ-45. Address table size: 8000 inputs, Routing/switching throughput: 20 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ab, IEEE... Power connector: AC input socket. Possibilities of mounting in the frame

✏️ Key Technical Specifications:

• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Reset Button: Yes
• Management Features - Traffic Classification: Yes
• Fiber Optic - Fiber Ethernet Cabling Technology: 100BASE-X, 1000BASE-X
• Data Transfer - Routing/Switching Capacity: 20 Gbit/s
• Data Transfer - Throughput: 14.9 Mpps
• Data Transfer - Address Table Size: 8000 entries
• Data Transfer - Number of Queues: 8
• Data Transfer - Jumbo Frames Support: Yes
• Data Transfer - Jumbo Frames Extension: 9000
• Data Transfer - Packet Buffer Memory: 1 MB
• Power over Ethernet (PoE) - PoE Support: No
• Memory - Internal Memory Capacity: 128 MB
• Performance - Flash Memory Size: 16 MB
• Performance - Fanless: No
• Network - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - 10G Support: No
• Network - Port Mirroring: Yes
• Network - Flow Control Support: Yes
• Network - Link Aggregation: Yes
• Network - Traffic Control: Yes
• Network - Rate Limiting: Yes
• Network - Spanning Tree Protocol: Yes
• Network - VLAN Support: Yes
• Network - Cable Length Measurement: Yes
• Network - Virtual LAN Features: Port-based VLAN, Tagged VLAN
• Ports and Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 8
• Ports and Interfaces - Basic Switching Ethernet RJ-45 Port Type: Gigabit Ethernet (10/100/1000)
• Ports and Interfaces - SFP Module Slots Quantity: 2
• Ports and Interfaces - Fiber Optic Connector: SFP
• Ports and Interfaces - Console Port: RJ-45
• Ports and Interfaces - Power Connector: AC input socket
• Package Details - Cables Included: AC
• Package Details - Package Width: 345 mm
• Package Details - Package Depth: 255 mm
• Package Details - Package Height: 82 mm
• Package Details - Package Weight: 2 kg
• Package Details - Package Type: Box
• Design - Rack Mounting Capability: Yes
• Design - Product Color: Black
• Protection - MAC Address Filtering: Yes
• Protection - Access Control List (ACL): Yes
• Protection - IGMP Snooping: Yes
• Design - LED Indicators: Activity, Link, Power
• Protection - Static Port Security: Yes
• Operating Conditions - Storage Temperature Range: -40 - 85 °C
• Operating Conditions - Operating Temperature Range: -10 - 50 °C
• Operating Conditions - Relative Humidity Range: 0 - 95%
• Technical Details - Minimum System Requirements: CE, RoHS
• Power - Power Consumption: 15 W
• Power - Power Adapter Included: Yes
• Power - AC Input Voltage: 100 - 240 V
• Power - Power Source: AC
• Power - AC Input Frequency: 50 - 60 Hz
• Logistics Data - Harmonized System (HS) Code: 85176990
• Weight and Dimensions - Product Width: 270 mm
• Weight and Dimensions - Product Depth: 181 mm
• Weight and Dimensions - Product Height: 44 mm
• Weight and Dimensions - Product Weight: 800 g
• Package Contents - Quick Start Guide: Yes
• Classification - Manufacturer Code: GEL-1061
• Classification - EAN: 4015867228623
• Classification - Product ID: 101333059
