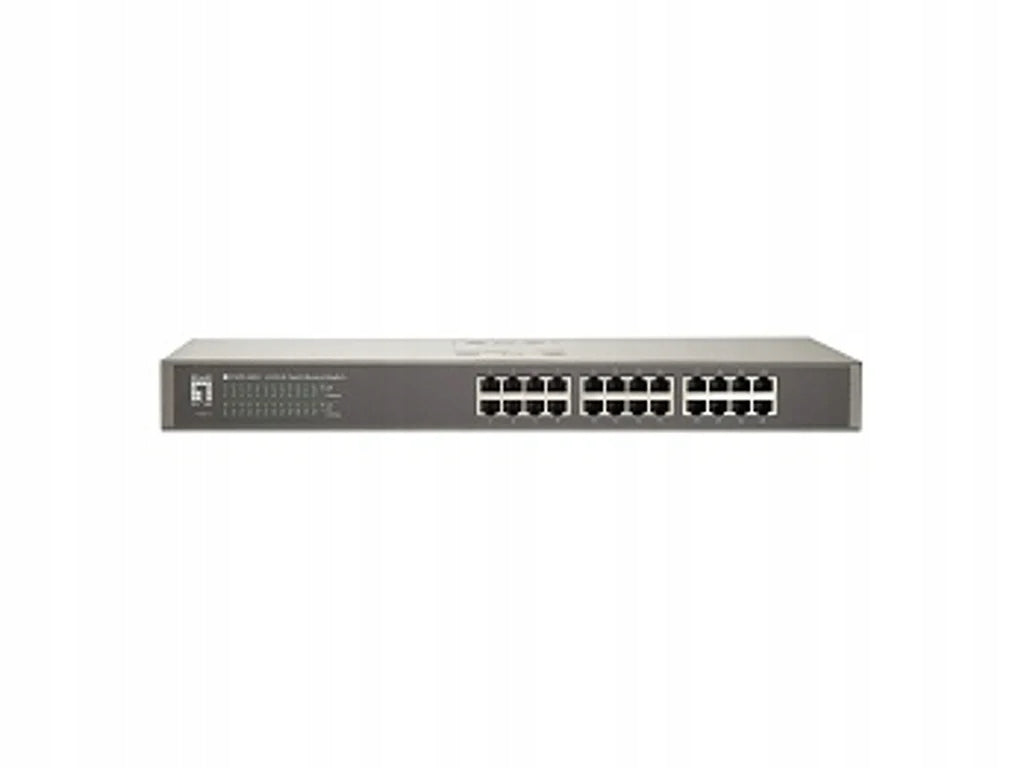

Tinklo jungiklis LevelOne FSW-2450, 24 prievadų, 10/100 Mbps, nesuvaldytas

Trumpai apie prekę

Prekė: Tinklo jungiklis LevelOne FSW-2450, 24 prievadų, 10/100 Mbps, nesuvaldytas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: LevelOne
• Modelis: FSW-2450

Any choice of 24 ports 10/100BASE-TX

10/100 Mbps half and full duplex, automatic negotiation, auto-MDI/MDIX

Support automatic memorization and forgetting of 8K MAC addresses

QoS control for traffic prioritization and capacity management

IEEE 802.3x flow control protects against packet loss for reliable data transmission

Internal power supply

Metal Housing 19 in.

Reduction of carbon dioxide emissions through advanced energy-saving technologies (IEEE 802.3az)

✏ The most important technical parameters:

• Network - 10G support: No
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX
• Network - Supported cable types: Cat5
• Network - Full duplex: Yes
• Network - Flow control support: Yes
• Network - Automatic MDI/MDI-X: Yes
• Network - Auto-Negotiation: Yes
• Network - Supported auto-learning MAC addresses: Yes
• Wireless LAN Features - Communication Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z
• Features - Frequency limit: Yes
• Features - Service Quality (QoS): Yes
• Features - Country of origin: China
• Features - Certificates: FCC Class A, CE, RoHS
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 24
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)
• Ports and interfaces - Power connector: DC-in jack
• Protocols - Switching protocol: CSMA, CD
• Design - LEDs: Operation, Link, Power supply
• Design - Maximum cable length: 100 m
• Design - Colour of product: Black
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Power - Power consumption: 10 W
• Working conditions - Temperature range (operation): 0 - 40 °C
• Working conditions - Temperature range (storage): -40 - 70 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Permissible relative humidity: 5 - 95%
• Management Features - Switch Type: Not Managed
• Data transfer - Routing/switching bandwidth: 4,8 Gbit/s
• Data transfer - Address table size: 8192 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Packet buffer memory: 0,16 MB
• Logistics data - Harmonised system code (HS): 85176990
• Logistics data - Width of bulk box (external): 405 mm
• Logistics data - Length of main box (external): 500 mm
• Logistics data - Height of reference box (external): 240 mm
• Logistics data - Gross weight of main housing (external): 11,6 kg
• Weight and sizes - Product weight: 1,45 kg
• Weight and sizes - Product height: 44 mm
• Weight and sizes - Product width: 140 mm
• Weight and sizes - Product depth: 440 mm
• Weight and sizes - Weight including packaging: 2,13 kg
• Power over Ethernet (PoE) - PoE Support: No
• Packaging data - Hook mounting kit: Yes
• Packaging data - Package depth: 486 mm
• Package Contents - Cables: AC
• Content of the package - Quick Start Guide: Yes
• Classification - Manufacturer code: FSW-2450
• Classification - EAN: 4015867136454
• Classification - Product ID: 1929115

Specifications
