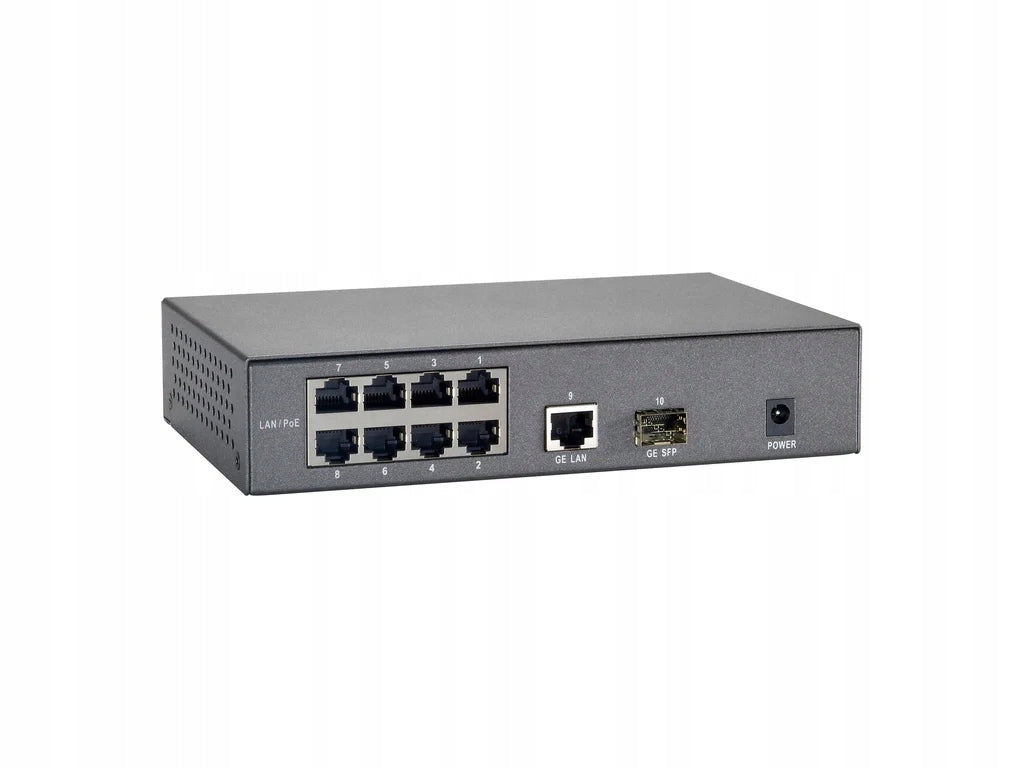

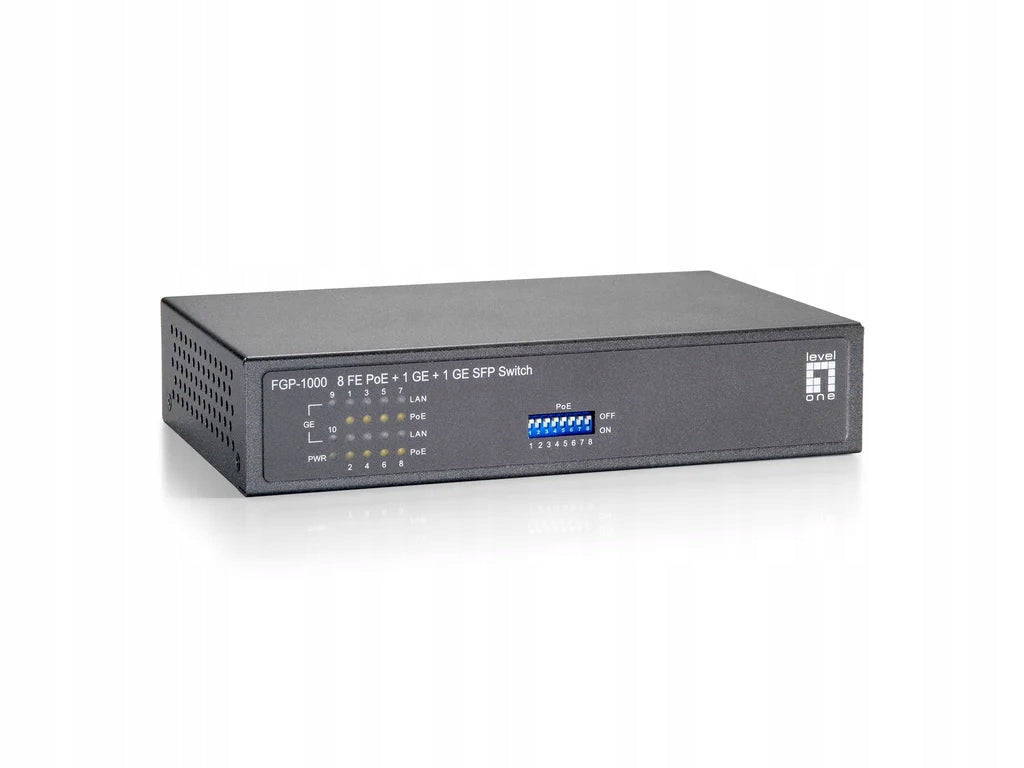

Tinklo jungiklis LevelOne FGP-1000W90, 10/100 Mbps, su PoE

Trumpai apie prekę

Prekė: Tinklo jungiklis LevelOne FGP-1000W90, 10/100 Mbps, su PoE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: LevelOne
• Modelis: FGP-1000W90

LevelOne FGP-1000W90. Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100), Basic RJ-45 Switching Number of Ethernet Ports: 9. Full duplex. Address table size: 4000 inputs, Routing/switching throughput: 5,6 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. PoE support

✏ The most important technical parameters:

• Data transfer - Routing/switching bandwidth: 5,6 Gbit/s
• Data transfer - Address table size: 4000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Static route: Yes
• Data transfer - Packet forwarding range (1 Gbps): 1488000 pps
• Data transfer - Packet forwarding range (10 Mbps): 14880 pps
• Data transfer - Packet forwarding range (100 Mbps): 148000 pps
• Power over Ethernet (PoE) - PoE Support: Yes
• Power supply via Ethernet (PoE) - Power supply via Ethernet (PoE) power supply per port: 30 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 82 W
• Design - Colour of product: Grey
• Design - LEDs: Operation, PoE, Power supply
• Design - Built-in circuit breaker: Yes
• Power - Power consumption: 90 W
• Power - Voltage: 56 V
• Wireless LAN functions - Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
• Performance - Power connector: DC-in jack
• Performance - sFlow: Yes
• Features - Rack mounting options: No
• Protection - DHCP functions: DHCP snooping, DHCP relay
• Protection - supports SSH/SSL: Yes
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 9
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)
• Ports and interfaces - Number of Fast Ethernet ports (copper): 8
• Ports and interfaces - Number of Gigabit Ethernet ports: 1
• Ports and interfaces - Number of SFP slots: 1
• Certificates - Certificates: CE, FCC, RoHS
• Network - 10G support: No
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
• Network - Full duplex: Yes
• Network - Automatic MDI/MDI-X: Yes
• Working conditions - Temperature range (storage): -40 - 70 °C
• Working conditions - Temperature range (operation): 0 - 45 °C
• Working conditions - Relative humidity range: 10 - 90%
• Working conditions - Permissible relative humidity: 10 - 90%
• Weight and sizes - Product width: 188 mm
• Weight and sizes - Product depth: 118 mm
• Weight and sizes - Product height: 38 mm
• Weight and sizes - Product weight: 1,5 kg
• Weight and sizes - Package width: 222 mm
• Weight and sizes - Package depth: 146 mm
• Weight and sizes - Package height: 78 mm
• Weight and sizes - Weight including packaging: 1,7 kg
• Content of packaging - Packaging type: Box
• Package Contents - AC Adapter: Yes
• Package Contents - Cables: AC
• Other functions - Country of origin: Taiwan
• Logistics data - Harmonised system code (HS): 85176990
• Logistics data - Width of bulk box (external): 420 mm
• Logistics data - Products in main box (external): 10 pcs.
• Classification - Manufacturer code: FGP-1000W90
• Classification - EAN: 4015867199985
• Classification - Product ID: 36329245
