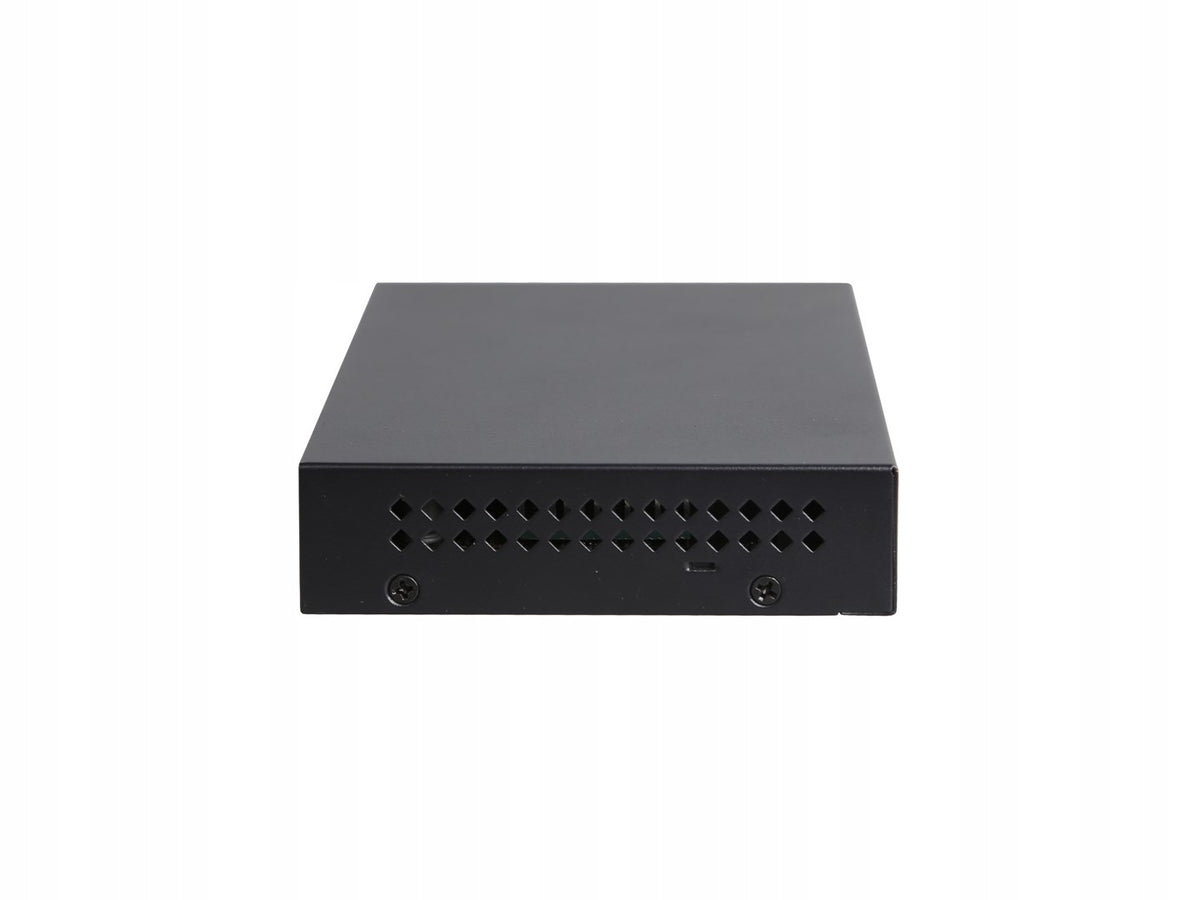

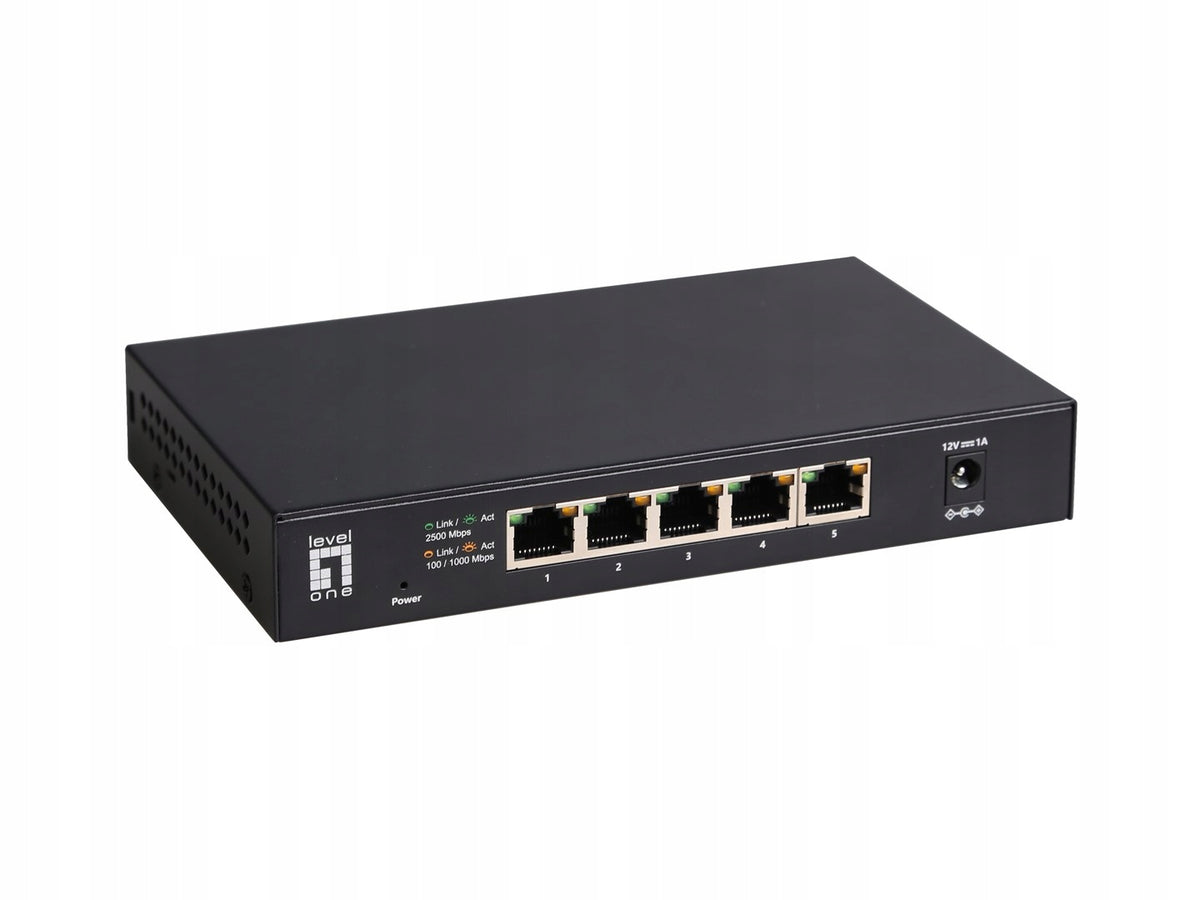

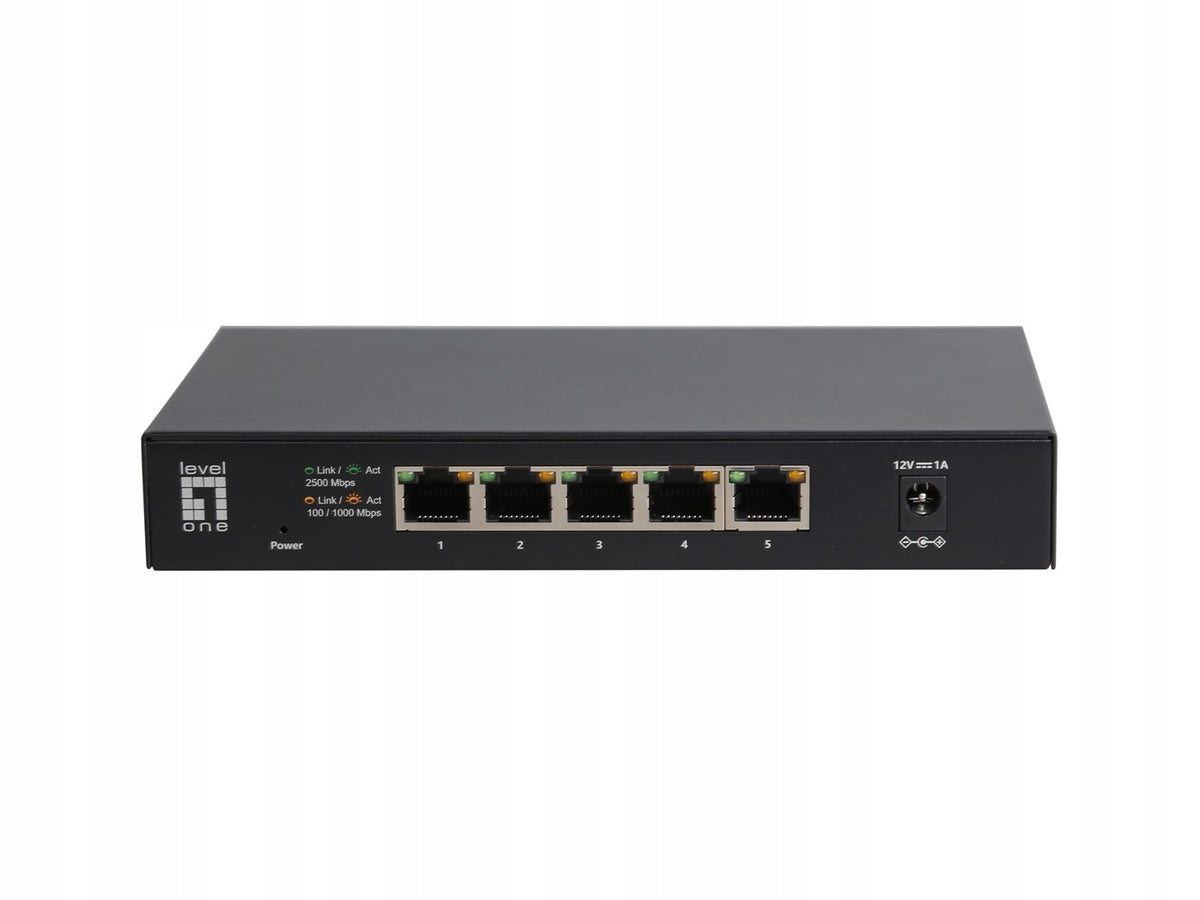

Tinklo jungiklis LevelOne, 5 prievadų, 2,5 Gb/s

Trumpai apie prekę

Prekė: Tinklo jungiklis LevelOne, 5 prievadų, 2,5 Gb/s. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: LevelOne
• Modelis: 471795

Technical details

• Gross pallet length: 80 cm
• Bulk boxes (external) per pallet (air): 12 pcs.
• Gross width of pallet: 120 cm

Design

• Product Color: Black
• Wall Mountable: Yes
• LEDs: Power Supply, Operation, Link

Power

• AC input frequency: 50/60 Hz
• Power Source: DC
• Voltage: 12 V
• Power Supply Included: Yes
• AC input voltage: 100 - 240 V
• Input current: 0. 4 A

Weight and sizes

• Product depth: 105, 3 mm
• Product Width: 175, 5 mm
• Product height: 27, 3 mm
• Product weight: 476, 7 g

Features of management

• Switch Type: Not Managed

Working conditions

• Permissible relative humidity: 5 - 90%
• Temperature range (operation): 0 - 50 °C
• Temperature range (storage): -40 - 70 °C
• Relative humidity range: 10 - 90%

Network

• Half Duplex: Yes
• Communication standards: IEEE 802. 3bz, IEEE 802. 3x, IEEE 802. 3ab, IEEE 802. 3u
• Copper Ethernet cabling technology: 100BASE-TX, 1000BASE-T, 10BASE-T, 2500BASE-T
• Supported MAC address auto-learning: Yes
• Supported MAC address auto-aging: Yes
• Flow Control Support: Yes
• Auto-Negotiation: Yes
• Full duplex: Yes
• Automatic MDI/MDI-X: Yes
• 10G Support: No

Efficiency

• No Windmill: Yes
• Noise Level: 0 dB

Packaging data

• Package Depth: 115 mm
• AC Adapter: Yes
• Weight including packaging: 614, 4 g

Contents of the pack

• Quick Start Guide: Yes

Certificates

• Certificates of conformity: CE, UKCA, RoHS, Federal Communications Commission (FCC)

Ports and interfaces

• Basic RJ-45 Ethernet Switching Ports Type: 2. 5G Ethernet (100/1000/2500)
• Basic RJ-45 Switching Number of Ethernet Ports: 5
• Number of ports 2, 5G Ethernet (copper): 5

Logistics data

• Products in main box (external): 50 pcs.
• Bulk box width (external): 605 mm
• Gross weight of main housing (external): 33 kg
• Country of Origin: China
• Length of main box (external): 400 mm
• Harmonised System Code (HS): 851762
• Height of reference box (external): 440 mm

Data transmission

• Compatible with Jumbo Frames: Yes
• Transfer Speed: 18, 6 Mpps
• Jumbo Frames extension: 15000
• Address table size: 8000 inputs
• Packet buffer memory: 4 MB
• Routing/switching throughput: 25 Gbit/s

Power over Ethernet (PoE)

• PoE Support: No

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	LevelOne
Parametry	Product weight with unit packaging	0.614 kg
Parametry	Number of ports	5
Parametry	Number of LAN (RJ-45) ports	1
Parametry	EAN (GTIN)	4015867237793
Parametry	Manufacturer code	471795
