Tinklo jungiklis IP-COM G1109P-8-102W, 9x GE, PoE

Trumpai apie prekę

Prekė: Tinklo jungiklis IP-COM G1109P-8-102W, 9x GE, PoE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Ip-Com
• Modelis: G1109P-8-102W

• 9x RJ45 10/100/1000 Mbps ports (PoE ports 1-8) with auto-negotiation function
• 8x IEEE 802.3af/at PoE ports
• Maximum output power of each PoE port: 30 W
• Maximum PoE output power: 92 W
• Supports MAC address self-learning and Auto MDI/MDIX
• Compliance with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab and IEEE802.3af/at
• Store and forward, shared memory, non-blocking architecture
• IEEE 802.3x full duplex and half duplex packet bitrate control standard support
• 16000 MAC addresses, automatic MAC learning and automatic aging
• Support 6 kV induction discharge port protection
• Fanless design
• Hardware DIP switch to choose between standard and VLAN modes
• Desktop Enclosure

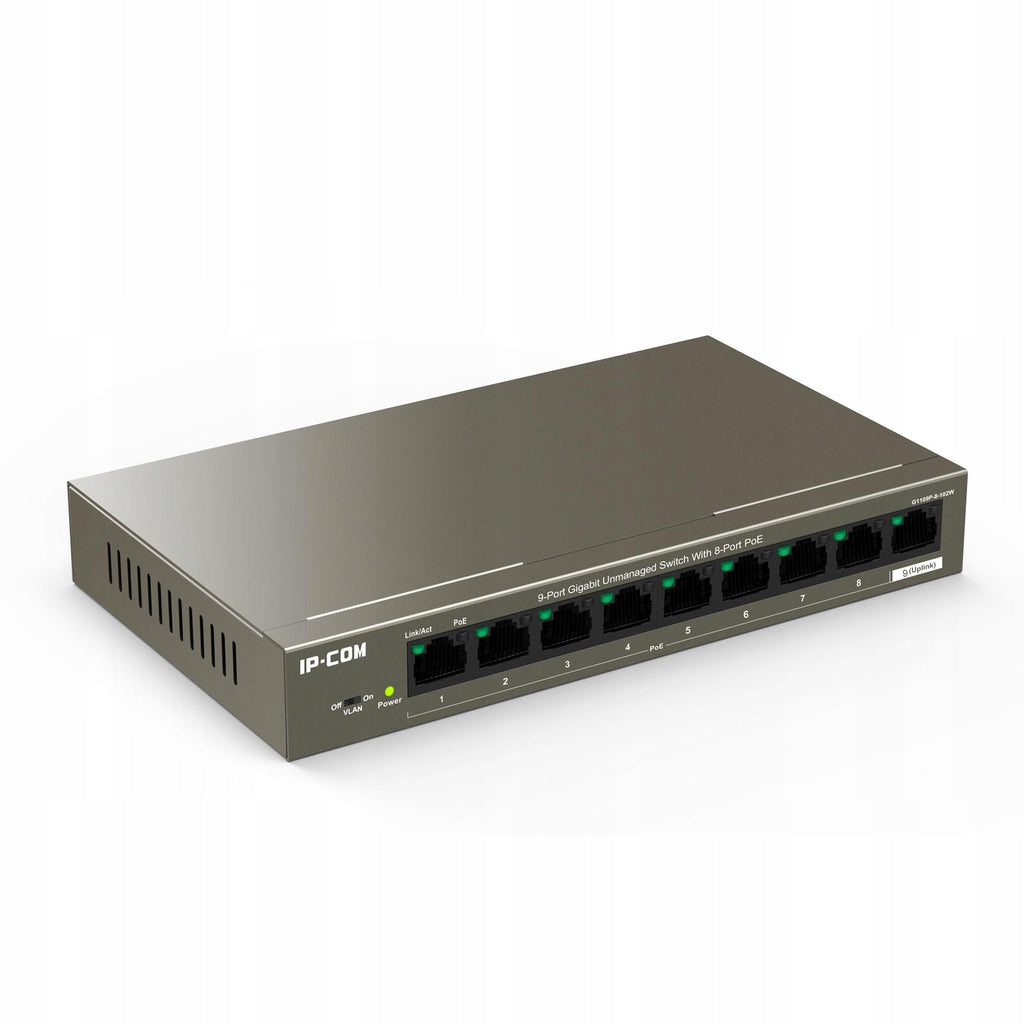

IP-COM G1109P-8-102W is a 9 port Gigabit Ethernet switch with 8 PoE ports

The switch has a metal desktop case. Ideally suited for small to medium-sized HD IP and WLAN monitoring projects.

Ports 1 to 8 support the IEEE 802.3af PoE standard, where each port provides 15,4 W power, or support the IEEE 802.3at PoE+ standard, where each port provides 30 W power. The entire switch provides power up to 92 W.

Thanks to the use of twisted pair, CAT5 can supply power and transmit data to access points, IP cameras, IP phones, etc.

Additionally, all ports support 6 kV lightning protection and port-based VLAN, making network deployment more convenient and cost-effective.

Integrated professional lightning protection, supporting lightning protection of the port and power supply (6KV common mode protection), effectively reduces the damage to the network system that can be caused by a lightning storm.

Switch IP-COM G1109P-8-102W has two network modes. The hardware DIP switch allows you to choose between standard and VLAN modes. Switching to VLAN mode prevents broadcast storms and DHCP spoofing weapons.

• Standards and protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
• Ports: 9x 10/100/1000 Base-T Ethernet ports (1-8 PoE ports)
• Port functions: Autonegotiation/Auto MDI/MDIX
• Switching: Capacity up to 18 Gbps, Packet transfer 13.39 Mp/s
• Power supply: AC: 100-240V~50/60Hz; 51V /2A DC (power supply included), Max. Output power of each PoE port: AF: 15.4W, AT: 30W, Max. Switch output power: 92 W
• MAC address table: 16K
• PoE power supply: Ports from 1 to 8 - IEEE802.3 af/at standard, Max. Output power of each PoE port: AF: 15.4W, AT: 30W, PoE (12+, 36- and 45+, 78- line pair)
• Lightning protection: 6kV
• Switching Modes: Store-forward and cut-through
• One-key mode:
• Standard: the switch acts as a common unmanaged switch, and all switch ports can communicate with each other and support auto negotiation 10/100/1000 Mbps
• VLAN: When the mode is enabled, VLAN isolation Ports 1-8 will be properly isolated (auto negotiation 10 Mb/s), but they can communicate with the uplink port
• Dimensions: 177.5 x 104 x 26 mm
• Certificates: FCC, CE, ROHS
• Working temperature: 0℃~40℃
• Working humidity: 10%～90%, non-condensing

Specifications
