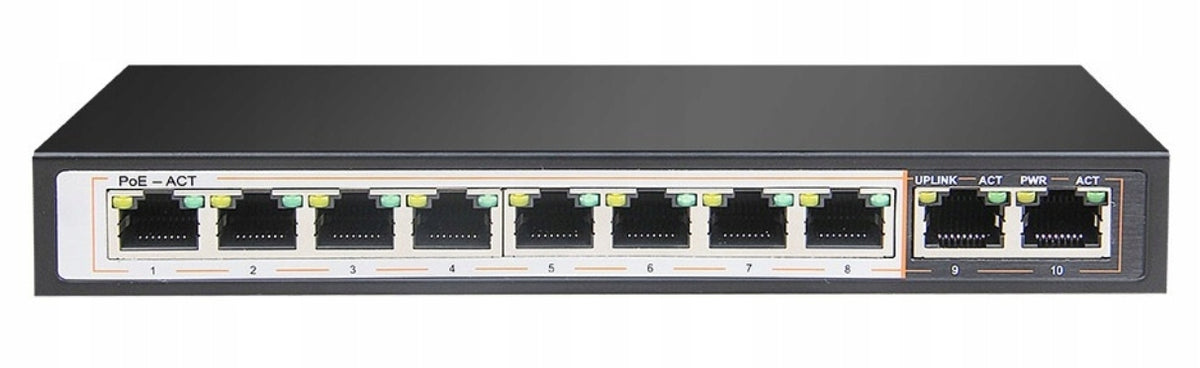

Tinklo jungiklis INTERNEC SPE128E, 10 prievadų, 2 FE, 8 PoE

Trumpai apie prekę

Prekė: Tinklo jungiklis INTERNEC SPE128E, 10 prievadų, 2 FE, 8 PoE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: SPE1028E

The SPE128E is a specialized, unmanaged switch for indoor applications, designed to support monitoring systems and other network systems. It provides 8 PoE ports with a bandwidth of 10/100 Mbps (for connecting PoE cameras) and 2 uplink ports (for connecting a recorder, router or another switch). Switch SPE128E offers three operating modes: default, VLAN and extended, the selection of which takes place via an easily accessible, three-stage switch located on the rear panel.

• 8 PoE ports 10/100 Mbps
• 2 uplink ports 10/100 Mbps
• Total power 96W
• Mid-span
• Operating Modes: Standard, VLAN, Extend

Technical data:

• Model: SPE128E

Ports

• Number of PoE ports: 8
• Number of uplink ports: 2
• Number of VLAN ports: 8
• Number of Extend ports: 8
• Max speed: 100 Mbps

Standard

• Transmission standard: IEEE802.3i, IEEE802.3u, IEEE802.3x
• Transmission type: Store-and-Forward
• PoE standard: IEEE802.3 af, IEEE802.3 at
• Package forwarding rate: 1.478 Mpps

POE

• Power per port: ≤ 30W
• Total power: ≤ 96W
• PoE Standard: Mid-span 1/2(+), 3/6(-)

Modes of operation

• Standard Mode: Up to 100m on each PoE port at 100Mbps, 100Mbps on uplink ports, communication between all ports ensured
• V-LAN mode: Up to 100m on each PoE port at 100Mbps, 100Mbps on uplink ports, separated PoE ports, communication only via uplink ports
• Extend Mode: Up to 250m on 1-8 ports at 10Mbps, 100Mbps on uplink ports, separated PoE ports, communication only via uplink ports
• QoS mode: Sets the priority of video data transmission over other data.
• AI PoE Mode: Detects a malfunctioning PoE device and automatically restarts it.

Type: High Definition Audio (8-channel)

• AC/DC power supply: 48 – 56 VDC
• Power Supply: External
• Working temperature: 0°C ÷ 40°C
• Ambient humidity: 10 ÷ 90%
• Fan: No
• Dimensions: 184 x 94 x 27mm
• Elements included: Power cord, DC power supply

The remaining

• Net weight: 0,42 kg
