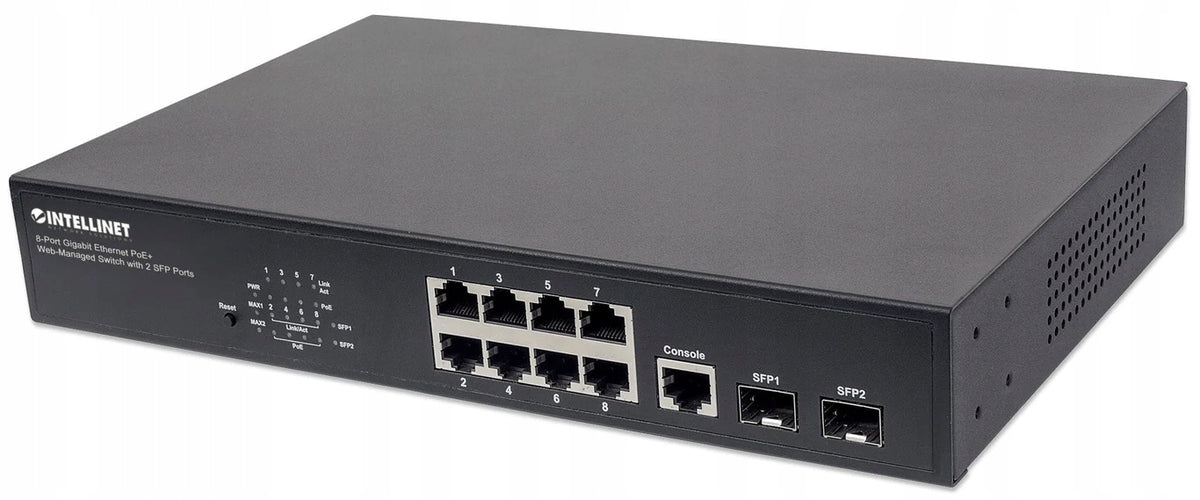

Tinklo jungiklis Intellinet 561167, 10 Gigabit Ethernet, valdomas

Trumpai apie prekę

Prekė: Tinklo jungiklis Intellinet 561167, 10 Gigabit Ethernet, valdomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Intellinet
• Modelis: 561167

Intellinet 561167. Switch Type: Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 8, Console Port: RJ-45. Address table size: 8192 inputs, Routing/switching throughput: 20 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ab, IEEE... PoE support. Possibilities of mounting in the frame

✏ Most important technical parameters:

• Data Transfer - Routing/Switching Throughput: 20 Gbit/s
• Data Transfer - Address Table Size: 8192 entries
• Features - Product color: Black
• Features - Buffer size: 512 KB
• Features - MTBF (Mean Time Between Failures): 259692 h
• Features - Noise level: 23.5 dB
• Package Contents - Cables: Alternating Current
• Package Contents - Hook Mounting Kit: Yes
• Package Contents - User Manual: Yes
• Network - 10G Support: No
• Network - Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• Network - Store-and-forward: Yes
• Network - Port Mirroring: Yes
• Network - Flow Control Support: Yes
• Network - Traffic Growth Control: Yes
• Network - Frequency Limit: Yes
• Network - Spanning Tree Protocol: Yes
• Network - MAC address auto-learning supported: Yes
• Network - MAC address auto-aging supported: Yes
• Network - VLAN Support: Yes
• Ports and Interfaces - Basic RJ-45 Switching Number of Ethernet Ports: 8
• Ports and Interfaces - Basic Ethernet Switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of SFP module slots: 2
• Ports and Interfaces - Console Port: RJ-45
• Construction - Housing material: Metal
• Design - Number of fans: 1 fan
• Design - LEDs: Operation, Link, PoE, Power
• Performance - Certifications: FCC Class A, CE
• Protection - MAC Address Filtering: Yes
• Protection - DHCP Features: DHCP client
• Protection - Access Control List (ACL): Yes
• Protection - IGMP snooping: Yes
• Security - Authentication type: IEEE 802.1x
• Power - Maximum power consumption: 150 W
• Power - PoE Support: Yes
• Power - AC Input Frequency: 50 - 60 Hz
• Power - AC input voltage: 100 - 240 V
• Weight and dimensions - Product width: 280 mm
• Weight and dimensions - Product depth: 180 mm
• Weight and dimensions - Product height: 44 mm
• Weight and dimensions - Product weight: 1.6 kg
• Management Features - Switch Type: Managed
• Management Features - Quality of Service (QoS): Yes
• Management Features - Website Management: Yes
• Technical details - Compliance certificates: CE, Federal Communications Commission (FCC)
• Logistics data - Harmonized System (HS) code: 85176990
• Operating conditions - Temperature range (operation): 0 - 45 °C
• Operating conditions - Temperature range (storage): -10 - 70 °C
• Operating conditions - Relative humidity range: 10 - 90%
• Other Features - Rack Mounting Options: Yes
• Classification - Manufacturer's code: 561167
• Classification - EAN: 0766623561167
• Classification - Product ID: 37042937
