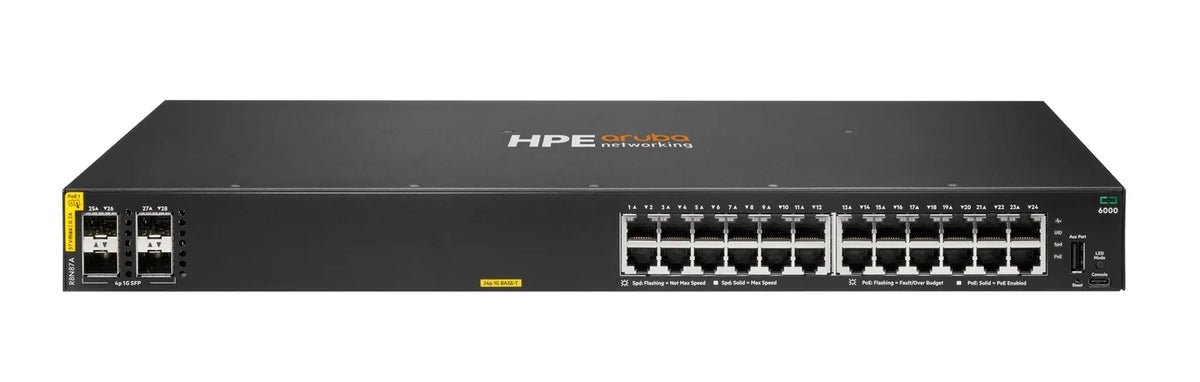

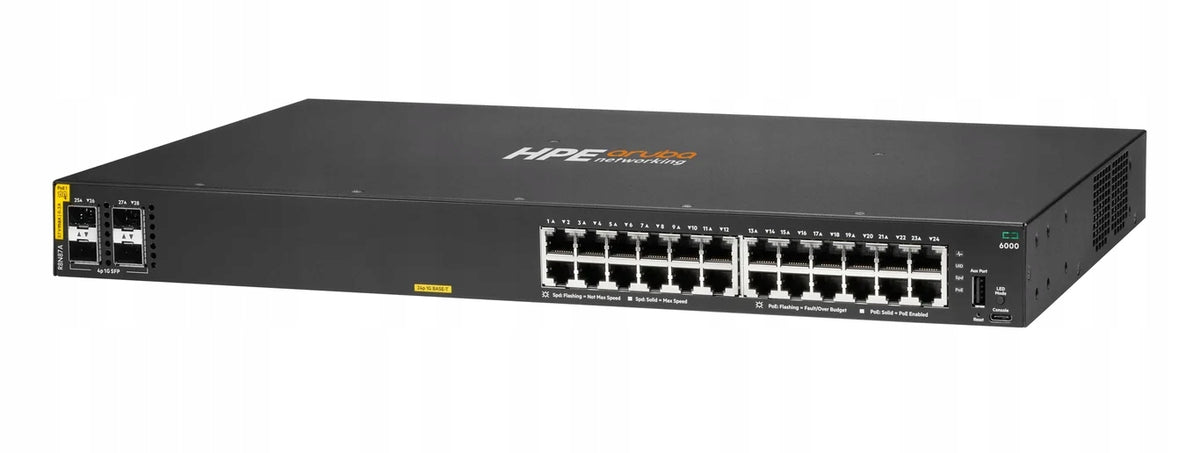

Tinklo jungiklis HPE Aruba CX 6000, 24 PoE (370W), 4 SFP

Trumpai apie prekę

Prekė: Tinklo jungiklis HPE Aruba CX 6000, 24 PoE (370W), 4 SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Aruba
• Modelis: 6000 R8N87A

HPE Aruba Networking CX 6000 24G Class4 PoE 4SFP 370W Switch Switch Type: Managed, Switch Layer: L3. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 24, Console Port: USB. Address table size: 8192 inputs, Routing/switching throughput: 56 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ab, IEEE... PoE support. Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Data transfer - Routing/switching capacity: 56 Gbit/s
• Data transfer - Forwarding rate: 41.6 Mpps
• Data transfer - MAC address table: 8192 entries
• Data transfer - Latency (1 Gbps): 1.5 μs
• Data transfer - Static routing: Yes
• Data transfer - Jumbo Frames support: Yes
• Multicast features - Multicast support: Yes
• Protocols - IPv4 and IPv6 features: IPv4/IPv6 access-control list (ACL)
• Protocols - IPv4 FIB: 256
• Protocols - IPv6 FIB entries: 128
• Processor - Processor model: ARM Cortex-A9
• Operating conditions - Operating temperature range: 0 - 45 °C
• Operating conditions - Storage temperature range: -40 - 70 °C
• Operating conditions - Humidity range: 15 - 95%
• Operating conditions - Non-condensing humidity range: 15 - 90%
• Security - DHCP features: DHCP client
• Security - Access Control List (ACL): Yes
• Security - IGMP snooping: Yes
• Security - Authentication: MAC-based authentication
• Ports and interfaces - Basic switching RJ-45 Ethernet ports quantity: 24
• Ports and interfaces - Basic switching Ethernet RJ-45 ports type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - SFP module slots quantity: 4
• Ports and interfaces - Console port: USB
• Network - 10G support: No
• Network - Port mirroring: Yes
• Network - Flow control support: Yes
• Network - Link aggregation: Yes
• Network - Auto MDI/MDI-X: Yes
• Network - Spanning Tree Protocol: Yes
• Network - VLAN support: Yes
• Design - Rack mounting capability: Yes
• Features - Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
• Design - Form factor: 1U
• Design - Power source: AC
• Design - Stackable product: No
• Features - PoE support: Yes
• Features - Total Power over Ethernet (PoE) budget: 370 W
• Performance - Management features: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
• Performance - Latency: 1 Gbps: 1.5 μSec
• Performance - Memory type: DDR3-SDRAM
• Performance - Flash memory size: 16384 MB
• Performance - Embedded processor: Yes
• Performance - Processor clock speed: 1016 MHz
• Management features - Switch type: Managed
• Management features - Switch layer: L3
• Management features - Cloud-managed: Yes
• Management features - Quality of Service (QoS) support: Yes
• Management features - Web-based management: Yes
• Power - AC input voltage: 200 - 240 V
• Power - AC input frequency: 50 - 60 Hz
• Power - Power supply included: Yes
• Power - Maximum power consumption: 32.7 W
• Power - Power consumption: Max. Power (w/o PoE): 32.7W Max. Power (w/ PoE): 455W
• Weight and dimensions - Product weight: 4.2 kg
• Weight and dimensions - Product height: 268 mm
• Weight and dimensions - Product width: 44 mm
• Weight and dimensions - Product depth: 442 mm
• Logistics data - Harmonized System (HS) code: 85176990
• Other features - Dimensions (W x D x H) (imperial): 43.9 x 442 x 268.2 mm (1.73 x 17.4 x 10.6")
• Other features - Other connections: 24 x 10/100/1000BASE-T ports 4 x 1 G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
• Other features - Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
• Other features - Weight (imperial): 4.19 kg (9.24 lbs)
• Technical details - Internal memory capacity: 4096 MB
• Classification - Manufacturer code: R8N87A
• Classification - EAN: 5715063069530
• Classification - Product ID: 94376911
