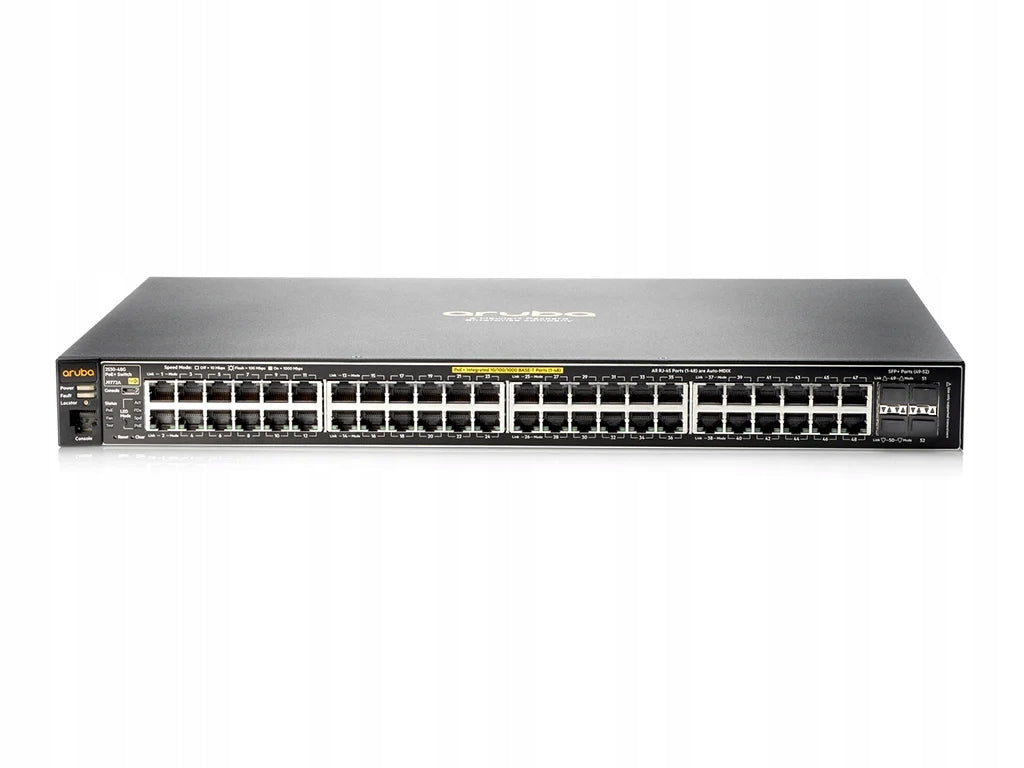

Tinklo jungiklis HPE Aruba 2530 48 PoE+ valdomas L2 Fast Ethernet (10/100)

Trumpai apie prekę

Prekė: Tinklo jungiklis HPE Aruba 2530 48 PoE+ valdomas L2 Fast Ethernet (10/100). Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 2530-48-PoE+

HPE Aruba Networking 2530 48 PoE+. Switch Type: Managed, Switch Layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100), Basic RJ-45 Switching Number of Ethernet Ports: 48. Full duplex. Address table size: 16000 inputs, Routing/switching throughput: 17,6 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE... PoE support. Wall Mount / Ceiling Projection, Rack Mount Capabilities, Layout: 1U

✏️ Key Technical Specifications:

• Data Transfer - Routing/Switching Capacity: 17.6 Gbps
• Data Transfer - Throughput: 13 Mpps
• Data Transfer - Address Table Size: 16000 entries
• Data Transfer - Latency (10-100 Mbps): 6.6 μs
• Data Transfer - Latency (1 Gbps): 2.2 μs
• Data Transfer - Jumbo Frames Support: 9220
• Data Transfer - Packet Buffer Memory: 3 MB
• Multicast Features - Multicast Support: Yes
• Performance - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• Performance - Stacking (Units): 16
• Performance - Built-in Processor: Yes
• Performance - Internal Memory Capacity: 256 MB
• Power - Power Source: AC
• Power - AC Input Voltage: 100 - 240 V
• Power - AC Input Frequency: 50/60 Hz
• Power - Maximum Power Consumption: 441 W
• Power - Total Power over Ethernet (PoE) Budget: 382 W
• Network - 10G Support: No
• Network - Auto MDI/MDI-X: Yes
• Network - Port Mirroring: Yes
• Network - Half Duplex: Yes
• Network - Jumbo Frames Compatible: Yes
• Network - Quality of Service (QoS) Support: Yes
• Network - Link Aggregation: Yes
• Network - Rate Limiting: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Auto-detection: Yes
• Network - Number of VLANs: 512
• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2
• Management Features - Management Protocols: SNMPv1, SNMPv2c, SNMPv3
• Security - Access Control List (ACL): Yes
• Security - SSH/SSL Support: Yes
• Security - Authentication Type: RADIUS, TACACS+
• Security - Authentication: MAC-based Authentication, Web-based Authentication
• Ports and Interfaces - Basic Switching RJ-45 Ethernet Ports Quantity: 48
• Ports and Interfaces - Basic Switching Ethernet RJ-45 Port Type: Fast Ethernet (10/100)
• Ports and Interfaces - SFP Module Slots Quantity: 2
• Design - Form Factor: 1U
• Power Supply - Power Supply Included: Yes
• Design - Wall/Ceiling Mountable: Yes
• Features - Memory Type: DDR3-SDRAM
• Features - VLAN Support: Yes
• Features - PoE Support: Yes
• Features - Full Duplex: Yes
• Features - Stackable Product: Yes
• Operating Conditions - Operating Altitude: 0 - 3000 m
• Operating Conditions - Operating Temperature Range: 0 - 45 °C
• Operating Conditions - Storage Temperature Range: -40 - 70 °C
• Operating Conditions - Relative Humidity Range: 15 - 95%
• Operating Conditions - Allowable Relative Humidity: 15 - 90%
• Processor - Processor Clock Speed: 800 MHz
• Technical Details - Rack Mounting Capability: Yes
• Memory - Flash Memory Size: 128 MB
• Technical Details - Web-based Management: Yes
• Dimensions and Weight - Product Width: 442 mm
• Dimensions and Weight - Product Depth: 322.6 mm
• Dimensions and Weight - Product Height: 44.5 mm
• Dimensions and Weight - Product Weight: 4.58 kg
• Other Features - Flow Control Support: Yes
• Classification - Manufacturer Part Number: J9778A
• Classification - EAN: 0886112458904
• Classification - Product ID: 114535743
