Tinklo jungiklis Hikvision DS-3E1526P-SI, 24 PoE, 370W, Smart

Trumpai apie prekę

Prekė: Tinklo jungiklis Hikvision DS-3E1526P-SI, 24 PoE, 370W, Smart. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: 6941264087441

Power budget 370W/ max 30W per port

The 26 port switch HikVision DS-3E1526P-SI is designed to power IP cameras and will be used in medium-sized CCTV systems. The ability to manage allows you to easily determine the rules of QoS, aggregation of links, as well as SNMP or VLAN.

PoE technology provides a network connection and reduces installation costs, eliminating the need to supply a separate power cable to each device. In addition to cameras, network devices that use this technology can be powered in this way, e.g. IP phone, access point, router.

• 24×gigabit PoE ports and 2×gigabit fiber ports.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, sending alarms, monitoring network status.
• 6 KV surge protection for PoE ports.
• The AF/AT can reach a range of up to 300 m in extended mode.
• Watchdog PoE for automatically detecting and restarting cameras that do not respond.
• Various Layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS

MESSAGE FOR THE EMPLOYEE OF ALLEGRO!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

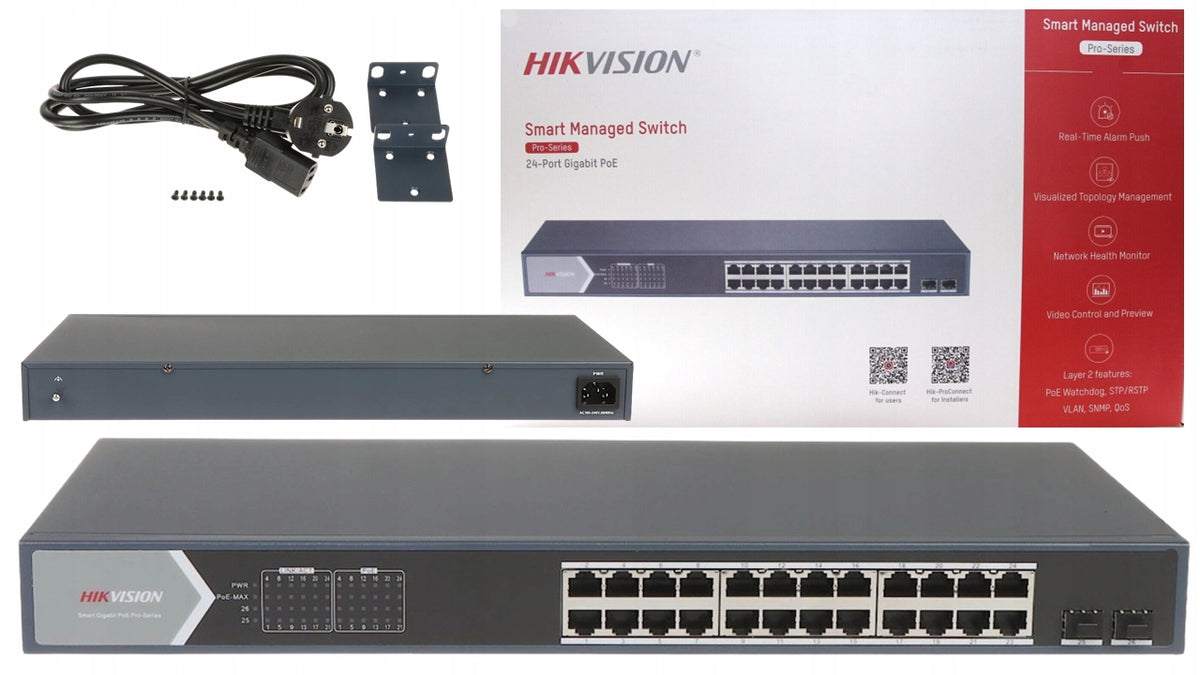

This is a picture of the box. It is important for presenting the functions of the device.

PLEASE DO NOT DELETE THIS!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

• Number of ports: 24 × gigabit PoE, 2 × gigabit SFP
• Port type: RJ45 port, full duplex, MDI/MDI-X adaptive
• Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
• Forwarding mode: Store-and-forward switching
• Working mode: Standard mode (default); Expansion mode
• MAC address table: 8 K
• Capacity: 52 Gbps
• Upload speed: 36.688 Mpps
• Internal cache: 4.1 Mbits
• PoE standard: IEEE 802.3af, IEEE 802.3at
• PoE ports: 1-24
• Max. port power: 30 W
• PoE power budget: 370 W
• Housing: metal
• Net weight: 2.975 kg
• Gross weight: 3.535 kg
• Dimensions: 440 mm × 221 mm × 44 mm
• Working temperature: -10 °C to 55 °C
• Storage temperature: -40 °C to 85 °C
• Working humidity: 5% to 95%
• Storage humidity: 5% to 95%
• Power supply: 100 to 240 VAC, 50/60 Hz, Max. 6,5 A
• Maximum power consumption: 400 W
