Tinklo jungiklis Hikvision DS-3E0508D-O

Trumpai apie prekę

Prekė: Tinklo jungiklis Hikvision DS-3E0508D-O. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: DS-3E0508D-O

79.33

56621

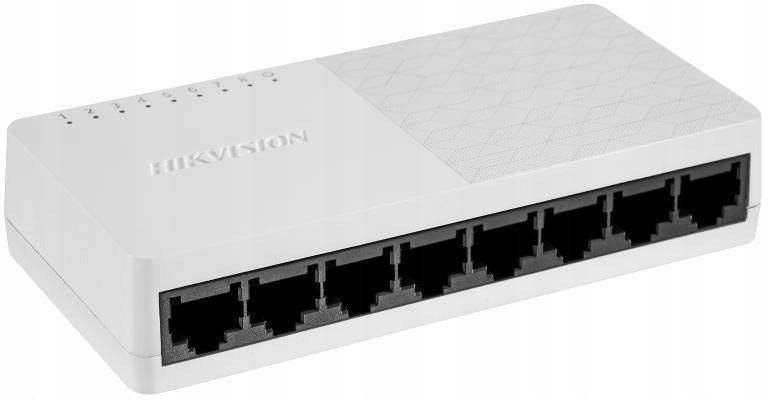

Switch Hikvision DS-3E0508D-O

Model: DS-3E0508D-O

Destiny

• 8-port gigabit plastic switch
• 8 x 10/100/1000 Mbps Ethernet ports
• MDI/MDIX support
• Store-and-forward forwarding mode.
• Support for MAC address auto-learning and aging
• Simple, compact body design
• Supports desktop and wall mounting
• Plug & play, easy to use.

Technical specifications

Model

DS-3E0508D-O

Case

ABS

Net weight

0.093 kg (0.205 lb)

Dimensions (width × height × depth )

124.00 mm × 25.00 mm × 61.00 mm (4.88'' × 0.98'' × 2.40'')

Operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating humidity

5% to 95% (non-condensing)

Relative humidity

5% to 95% (non-condensing)

Power supply

5VDC, 1A

Mounting type

Desk-mounted

Max. Energy consumption

5 in

Surge protection

2 kV

Network parameters

Ports

8 × Gigabit RJ45 ports

MAC address table

4K

Switching performance

16 Gb/s

Packet forwarding speed

11.90 Mp/s

Internal cache

1.5 Mb

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

Security

CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 (2nd edition), CE-LVD (EN 62368-1:2014+A11:2017)

Biochemical test

CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006)
