Trumpai apie prekę

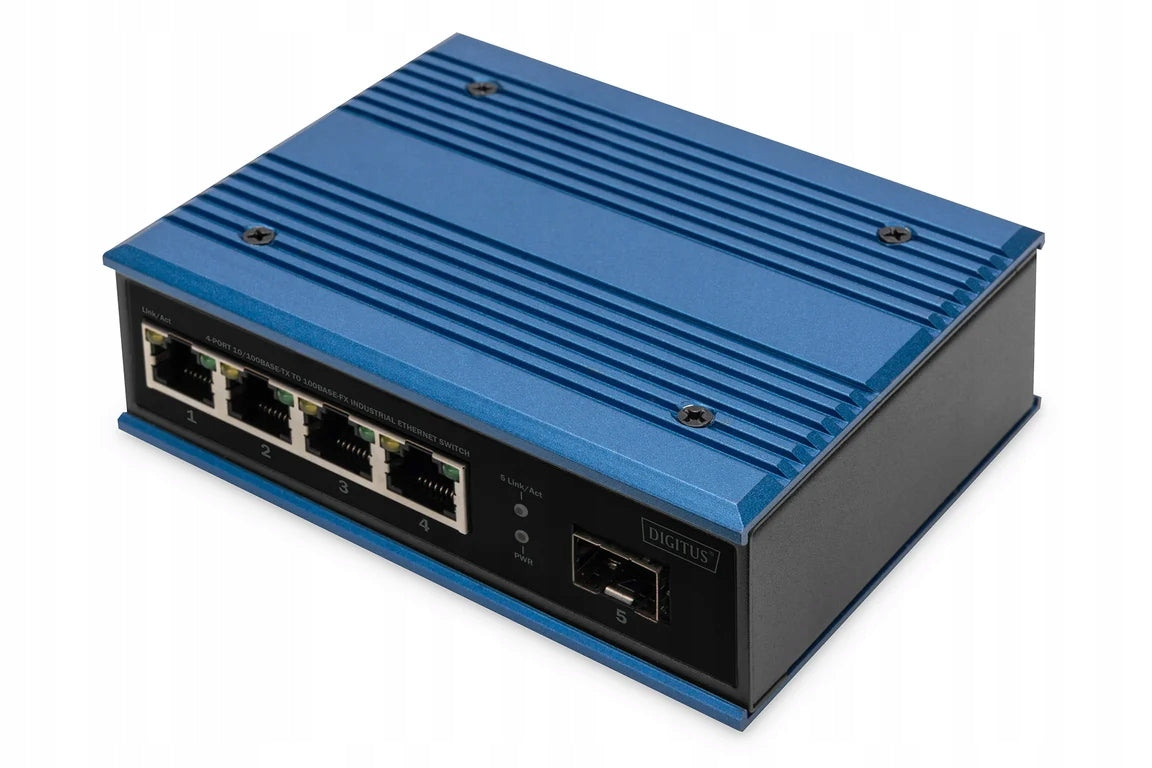

Prekė: Tinklo jungiklis Digitus, 4 prievadų, pramoninis, Fast Ethernet. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Digitus
- Modelis: DN-651130
DN-651130 is a 4+1 Ethernet PoE switch suitable for industrial applications (IP40), which enables interference-free data transfer in harsh industrial environments.
- The use of high-quality photoelectric integration module ensures high transmission rates of optical and electrical connections.
- Ensures reliable data transmission
- Full-duplex or half-duplex mode support, with automatic negotiation function
- Network connector supports patch cable type recognition
Switch supports various protocols
- Compliance with industrial operating standards
- Operating voltage: DC 12 to 48 V
- Surge protection due to lightning (power): 5000 A (8/20 μs)
DN-651130 is an industrial grade Fast Ethernet switch with 4 10/100 Mbps RJ45 ports and 1 100 Mbps base-FX port. The industrial grade switch can operate at temperatures ranging from -40℃ to +80℃, has been constructed for high strength and can be used in harsh environments of all kinds. The switch can be easily installed on a free DIN rail. With a wide temperature range, IP40-rated housing and LED display, the DN-651130 is an industrial-grade plug and play device that provides a reliable and user-friendly solution for connecting users to a network of Ethernet devices.
✏ The most important technical parameters:
- Network - 10G support: No
- Network - Ethernet interface type: Fast Ethernet
- Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-TX
- Network - Data transfer speed over Ethernet LAN: 10,100 Mbit/s
- Network - Full duplex: Yes
- Network - Half duplex: Yes
- Network - Flow control support: Yes
- Network - Automatic MDI/MDI-X: Yes
- Network - VLAN support: No
- Wireless LAN functions - Communication standards: IEEE 802.3, IEEE 802.3u
- Features - DIN mounting on rail: Yes
- Features - Bandwidth: 1,6 Gbit/s
- Features - Country of origin: China
- Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 4
- Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Fast Ethernet (10/100)
- Ports and interfaces - Number of Fast Ethernet ports (copper): 4
- Ports and interfaces - Number of SFP slots: 1
- Ports and interfaces - Number of connection ports: 1
- Ports and interfaces - Power connector: Terminal block (6-pin)
- Design - Stackable product: No
- Design - LEDs: Yes
- Design - IP rating: IP40
- Construction - Housing material: Aluminium
- Construction - Vandal-proof: No
- Design - Suitable for outdoor use: No
- Design - Colour of product: Black, Blue
- Power - Power Source: DC
- Power - DC input voltage: 12 - 52 V
- Power - Power consumption: 3 W
- Working conditions - Temperature range (operation): -40 - 80 °C
- Working conditions - Temperature range (storage): -40 - 80 °C
- Working conditions - Relative humidity range: 5 - 95%
- Working conditions - Permissible relative humidity: 5 - 95%
- Management Features - Switch Type: Not Managed
- Data transfer - Routing/switching bandwidth: 0,1 Gbit/s
- Data transfer - Forwarding speed: 1,2 Mpps
- Data transfer - Address table size: 2000 inputs
- Data transfer - Packet buffer memory: 1 MB
- Logistics data - Mask with serial number: 85176200
- Weight and sizes - Product weight: 450 g
- Weight and sizes - Product height: 34 mm
- Weight and sizes - Product width: 128 mm
- Weight and sizes - Product depth: 86 mm
- Weight and sizes - Weight including packaging: 541,667 g
- Power over Ethernet (PoE) - PoE Support: No
- Packaging data - User manual: Yes
- Packaging data - Package depth: 54 mm
- Packaging data - Package capacity: 1202,85 cm³
- Classification - Manufacturer code: DN-651130
- Classification - EAN: 4016032485490
- Classification - Product ID: 108711860
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Digitus |
| Parametry | Product weight with unit packaging | 0.542 kg |
| Parametry | Number of ports | 4 |
| Parametry | LAN port operating standard | 10/100 Mbps |
| Parametry | EAN (GTIN) | 4016032485490 |
| Parametry | Manufacturer code | DN-651130 |
