Tinklo jungiklis DCN S4200-28P-PL-SI-R2, 24x PoE+, 4x SFP, 200W, L2

Trumpai apie prekę

Prekė: Tinklo jungiklis DCN S4200-28P-PL-SI-R2, 24x PoE+, 4x SFP, 200W, L2. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: DCN
• Modelis: S4200-28P-PL-SI-R2

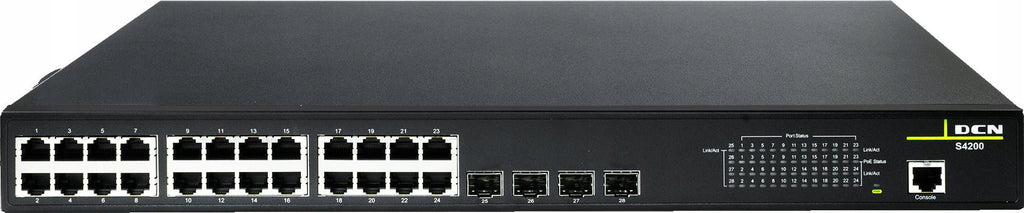

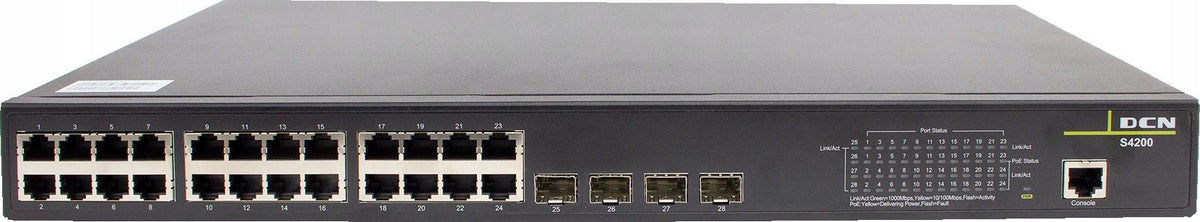

SWITCH DCN S4200-28P-PL-SI-R2 L2 24xPoE+/4xSFP (200W)

SWITCH DCN S4200-28P-PL-SI-R2 L2 24xPoE+/4xSFP (200W)

Model: S4200-28P-PL-SI-R2 Key Features – DCN S4200-28P-PL-SI-R2

• High performance: ensures smooth data transfer over the network.
• Advanced management: full control over network settings.
• Heavy-duty: ideal for heavy use in a variety of environments.
• Redundancy to increase connection reliability.
• QoS support for better quality of service.
• Security with built-in data protection features.
• Energy efficiency: reduces energy consumption at full capacity.
• Easy integration with existing network solutions.
• Support for the latest network protocols.
• Possibility of expansion in the future.
• Stable operation in difficult conditions.
• Gigabit Ethernet interfaces for speed and reliability.
• Easy setup and management via an intuitive user interface.
• SNMP management for advanced users.
• PoE support, making it easier to power network devices.
• Solid housing construction ensures durability.
• High throughput for large networks.
• Simplicity of installation and configuration.
• Technical support from DCN guaranteed.
• Adaptation to the needs of modern IT infrastructure.
• Benefits of using green technology.
• Optimized network traffic management.
• Intuitive management from a web browser.
• Ability to monitor work in real time.
• Wide operating temperature range.

Technical Specifications – DCN S4200-28P-PL-SI-R2 Category Specification Model DCN S4200-28P-PL-SI-R2 Device Type Managed Layer 2 (L2) Switch Ports 24 × 10/100/1000Base-T RJ45 with PoE+ (IEEE 802.3af/at) 4 × 100/1000Base-X SFP RS-232 (RJ45) Console Port Throughput and Performance Switching Fabric: 56 Gbps Throughput: approx. 41.66 Mpps MAC Table: 8K Addresses VLAN: up to 4000 (often standard 4K VLANS) PoE Power Supply 24 PoE/PoE+ ports with a power budget of approx. 200W Network Features and Management Web GUI Management, CLI, SNMP (v1/v2c/v3), Telnet, SSH, TFTP/FTP Protocol support: IEEE 802.1D STP, 802.1w RSTP, 802.1s MST Link aggregation (LACP IEEE 802.3ad) QinQ VLAN, IGMP Snooping, DHCP Snooping, port bandwidth control Network loop detection and prevention Security IP Source Guard DHCP Snooping with Trusted Ports and DHCP Option 82 ARP protection and ARP scanning Access Control Lists (ACLs) 802.1X with RADIUS authentication Packet buffer Approximately 1.5 MB Jumbo frames Up to 10 KB ACL table 1.4 K entries MAC multicast table Approximately 1K addresses Power and environment Power supply: 230 V AC Power consumption Power: ≤ 250 W (depending on PoE load) Cooling: active Operating temperature: 0°C to 50°C Operating humidity: 10% - 90% (non-condensing) Dimensions and housing 440 mm (width) × 260 mm (depth) × 44 mm (height, 1U) Other features sFlow support SNMP traffic monitoring Support imCloud cloud platform (if available)

Specifications
