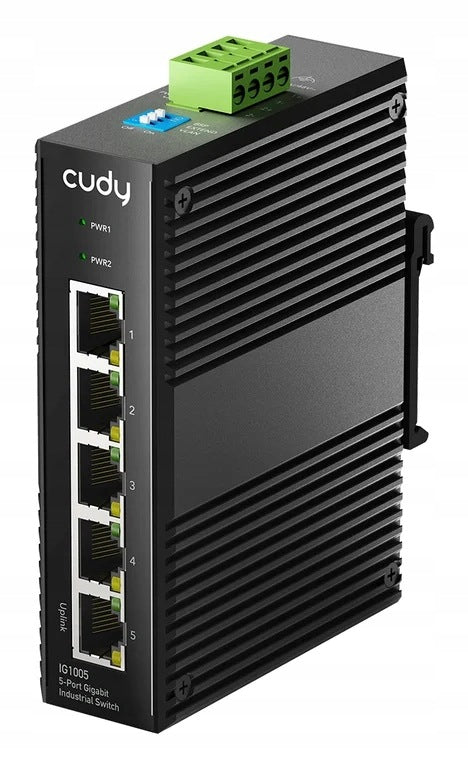

Tinklo jungiklis Cudy IG1005, 5 portų, Gigabit Ethernet, nevaldomas

Trumpai apie prekę

Prekė: Tinklo jungiklis Cudy IG1005, 5 portų, Gigabit Ethernet, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cudy
• Modelis: IG1005

Cudy IG1005. Switch Type: Not Managed. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 5. Full duplex. Address table size: 8192 inputs, Routing/switching throughput: 10 Gbit/s. Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 9.6 - 60 V. Power connector: Terminal block (4-pin)

✏ The most important technical parameters:

• Construction - Housing material: Aluminium
• Design - LEDs: Yes
• Construction - DIN mounting on rail: Yes
• Data transfer - Routing/switching bandwidth: 10 Gbit/s
• Data transfer - Forwarding speed: 7,44 Mpps
• Data transfer - Address table size: 8192 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9000
• Data transfer - Packet buffer memory: 0,375 MB
• Network - 10G support: No
• Network - Communication standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - Copper Ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
• Network - Full duplex: Yes
• Network - Supported cable types: Cat3, Cat5, Cat5e
• Network - Data transfer speed over Ethernet LAN: 10,100,1000 Mbit/s
• Network - Half duplex: Yes
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 5
• Ports and interfaces - PoE support: No
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Gigabit Ethernet ports: 4
• Power - Power Source: DC
• Power - Power supply included: No
• Power - Backup Power Support (RPS): Yes
• Power - DC input voltage: 9.6 - 60 V
• Power - Power connector: Terminal block (4-pin)
• Power - Maximum power consumption: 3 W
• Power - Protection against sudden voltage increase: 4 kV
• Certificates - Certificates of conformity: CE
• Sustainability - Compliance with the principles of sustainable development: Yes
• Technical details - Colour of product: Black
• Features - Protection against sudden voltage increase: Yes
• Weight and sizes - Product width: 118 mm
• Weight and sizes - Product depth: 86 mm
• Weight and sizes - Product height: 33,5 mm
• Weight and sizes - Product weight: 360 g
• Weight and sizes - Package width: 182 mm
• Weight and sizes - Package depth: 137 mm
• Weight and sizes - Package height: 65 mm
• Weight and sizes - Weight including packaging: 441 g
• Ethernet LAN functions - Automatic MDI/MDI-X: Yes
• Management Features - Switch Type: Not Managed
• Management Features - Reset Button: Yes
• Strength - IP rating: IP40
• Working conditions - Relative humidity range: 5 - 95%
• Working conditions - Permissible relative humidity: 5 - 95%
• Working conditions - Temperature range (operation): -40 - 85 °C
• Working conditions - Temperature range (storage): -40 - 85 °C
• Other functions - MTBF (Mean Interval Period): 300000 h
• Classification - Manufacturer code: 6971690792763
• Classification - EAN: 6971690792763
• Classification - Product ID: 116729484
