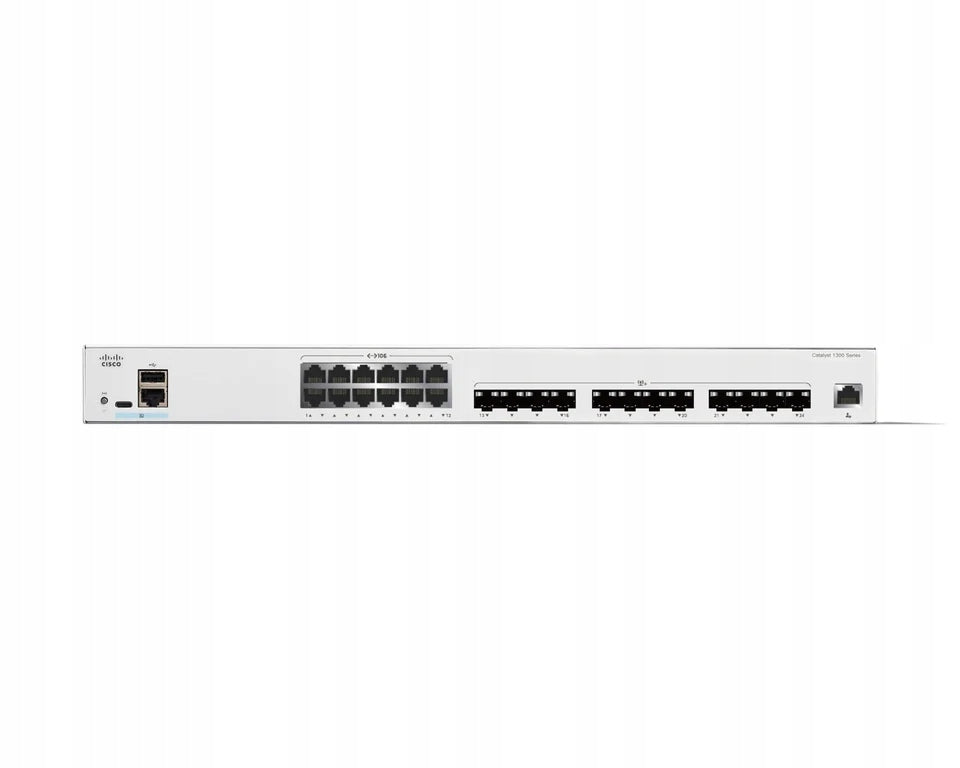

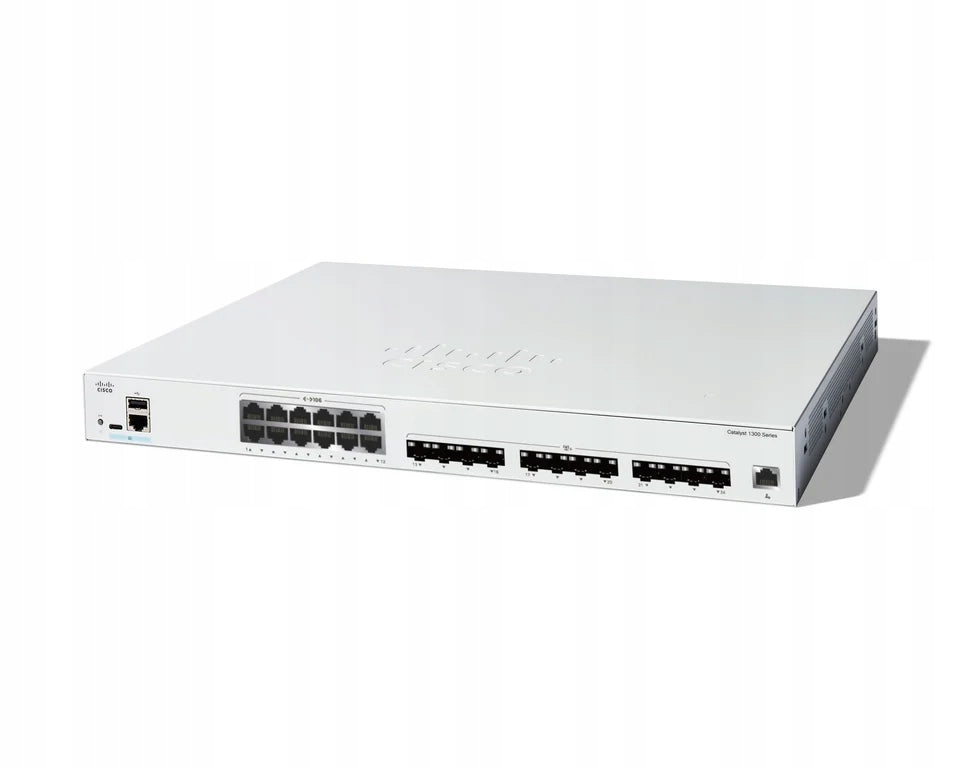

Tinklo jungiklis Cisco Catalyst C1300-24XTS, valdomas, L2/L3, 10G

Trumpai apie prekę

Prekė: Tinklo jungiklis Cisco Catalyst C1300-24XTS, valdomas, L2/L3, 10G. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cisco
• Modelis: C1300-24XTS

Cisco Catalyst C1300-24XTS. Switch Type: Managed, Switch Layer: L2/L3. Basic Switching RJ-45 Ethernet Port Type: 10G Ethernet (100/1000/10000), Basic Switching RJ-45 Ethernet Port Count: 12, Console Port: RJ-45/USB Type-C. MAC Address Table Size: 16000 entries, Routing/Switching Capacity: 480 Gbit/s. Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3.... Rack Mounting Capability

✏️ Key Technical Specifications:

• Data Transfer - Routing/Switching Capacity: 480 Gbit/s
• Data Transfer - MAC Address Table Size: 16000 entries
• Data Transfer - Queue Count: 8
• Data Transfer - Static Route: Yes
• Data Transfer - Static Route Count: 990
• Data Transfer - Jumbo Frames Support: Yes
• Data Transfer - Jumbo Frames Extension: 9000
• Data Transfer - Packet Buffer Memory: 8 MB
• Multicast Features - Multicast Support: Yes
• Protocols - GVRP VLAN Registration Protocol: Yes
• Protocols - IPv4 and IPv6 Features: ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
• Operating Conditions - Operating Temperature Range: -5 - 50 °C
• Operating Conditions - Storage Temperature Range: -25 - 70 °C
• Operating Conditions - Relative Humidity Range: 10 - 90%
• Operating Conditions - Allowable Relative Humidity: 10 - 90%
• Operating Conditions - Heat Emission: 300.76 BTU/h
• Security - DHCP Features: DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
• Security - Access Control List (ACL): Yes
• Security - ACL Rule Count: 1024
• Security - IGMP Snooping: Yes
• Security - IGMP Proxy: Yes
• Security - SSH/SSL Support: Yes
• Security - DoS Attack Prevention: Yes
• Security - Authentication Type: RADIUS, TACACS+
• Security - Authentication: MAC-based Authentication, Web-based Authentication
• Security - Queue Scheduling Algorithms: Weighted Round Robin (WRR)
• Ports and Interfaces - Basic RJ-45 Ethernet Port Count: 12
• Ports and Interfaces - Basic RJ-45 Ethernet Port Type: 10G Ethernet (100/1000/10000)
• Ports and Interfaces - SFP+ Module Slot Count: 12
• Ports and Interfaces - Console Port: RJ-45/USB Type-C
• Network - Encryption/Security: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
• Network - Cable Types Supported: Cat5e
• Network - Port Mirroring: Yes
• Network - Rule-based Routing: Yes
• Network - Link Aggregation: Yes
• Network - Traffic Control: Yes
• Network - Rate Limiting: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Head-of-Line (HOL) Blocking: Yes
• Network - QinQ Deployment: Selective QinQ
• Network - VLAN Support: Yes
• Network - VLAN Features: Private VLAN, Voice VLAN
• Design - Rack Mounting Capability: Yes
• Features - Communication Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Design - Power Source: AC
• Design - Product Color: Gray
• Features - Country of Origin: China
• Features - Plug & Play Support: Yes
• Features - Certifications: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
• Performance - Noise Level: 39 dB
• Performance - Memory Type: DDR4-SDRAM
• Performance - Flash Memory Size: 512 MB
• Performance - Embedded Processor: Yes
• Performance - Processor Clock Speed: 1.4 MHz
• Management Features - Switch Type: Managed
• Management Features - Switch Layer: L2/L3
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Web-based Management: Yes
• Management Features - Reset Button: Yes
• Management Features - Command-line Interface (CLI) Configuration: Yes
• Management Features - MIB Support: Yes
• Power - Power Consumption: 88.2 W
• Power - AC Input Voltage: 100 - 220 V
• Power - AC Input Frequency: 50/60 Hz
• Power - Power Plug Type: Type C
• Package Data - Package Width: 430 mm
• Package Data - Package Depth: 574.7 mm
• Package Data - Package Height: 105.9 mm
• Weight and Dimensions - Product Weight: 4.2 kg
• Package Data - Package Weight: 5.6 kg
• Weight and Dimensions - Product Height: 44 mm
• Weight and Dimensions - Product Width: 445 mm
• Weight and Dimensions - Product Depth: 273 mm
• Other Features - MTBF (Mean Time Between Failures): 427188 h
• Technical Details - Internal Memory Capacity: 1000 MB
• Classification - Manufacturer Part Number: C1300-24XTS
• Classification - EAN: 0889728521574
• Classification - Product ID: 118618149
