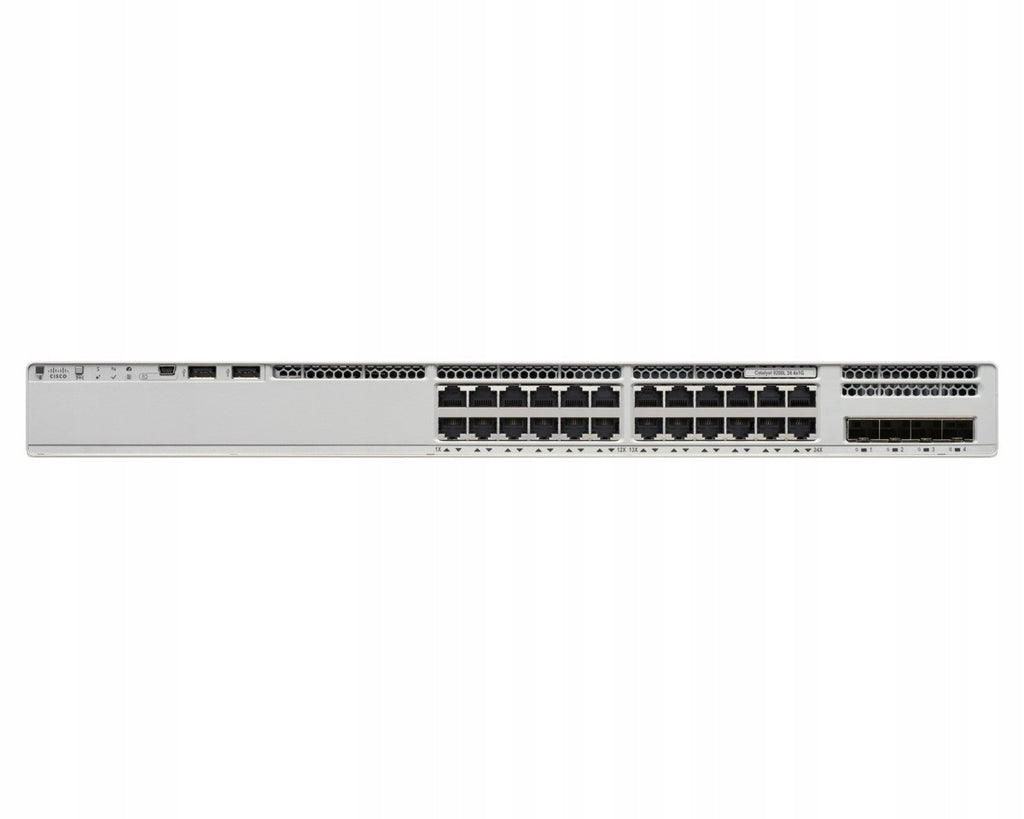

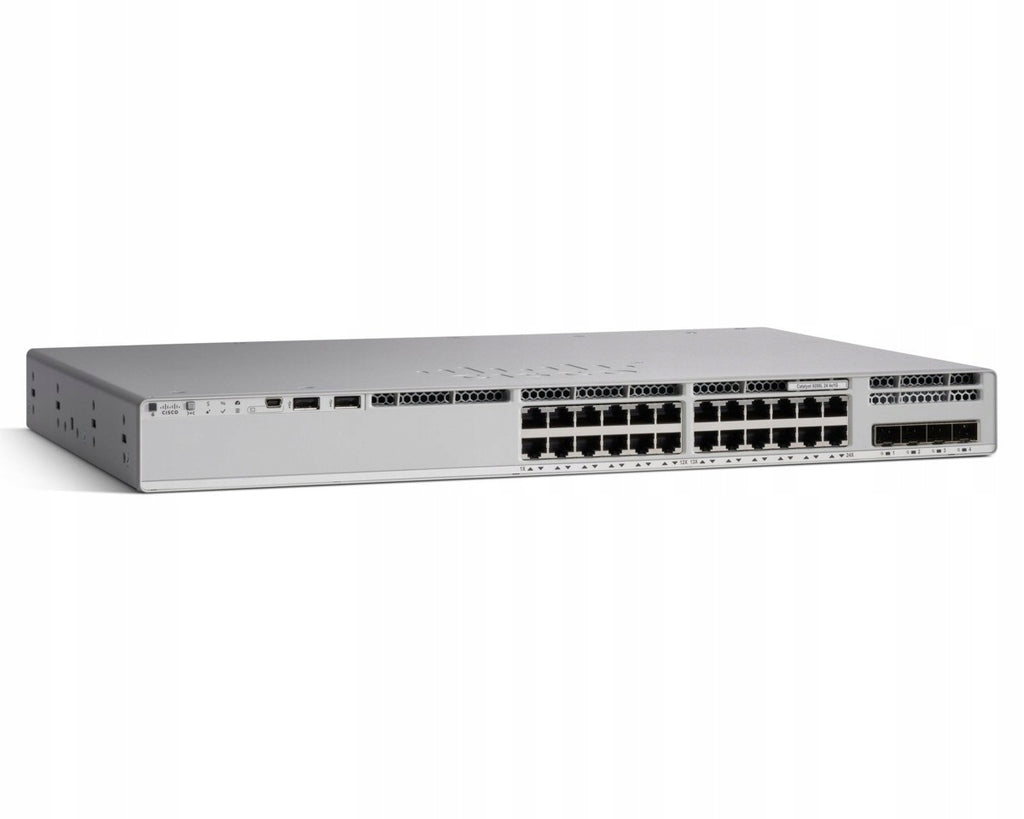

Tinklo jungiklis Catalyst 9200L, 24 PoE+ portai

Trumpai apie prekę

Prekė: Tinklo jungiklis Catalyst 9200L, 24 PoE+ portai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cisco
• Modelis: C9200L-24P-4X-A

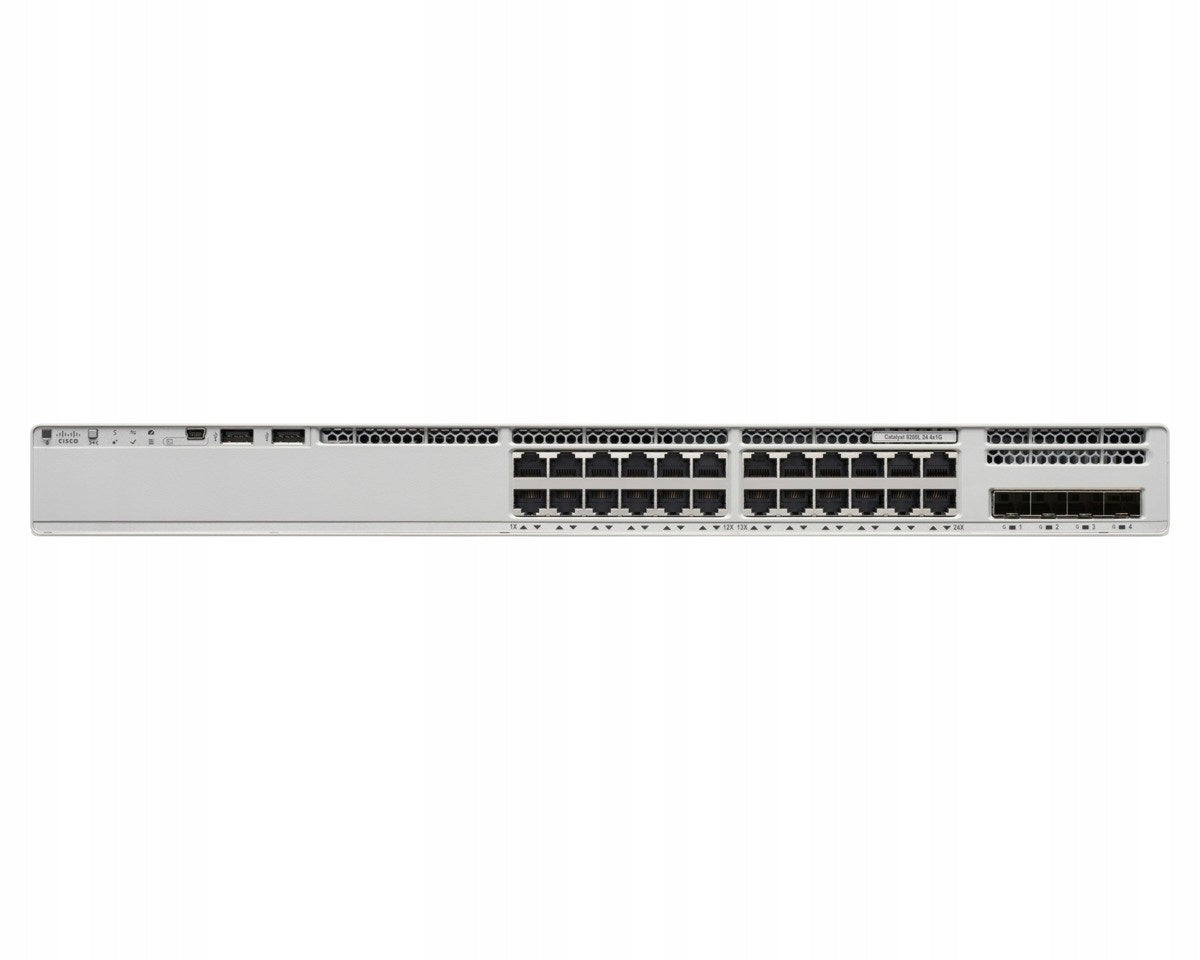

Catalyst 9200L 24-port PoE+

CISCO

Cisco Catalyst 9200 switches extend network capabilities with advanced hardware and software innovations. They ensure simplicity, safety and reliable operation. The 9200 Series enables IT management to be simplified and operational costs optimized with advanced automation and intelligence. The presented switches offer advanced security features that protect the integrity of both hardware and software and data. With the open Cisco IOS XE APIs and the programmability of UADP ASIC technology, these devices are prepared for future innovations. The 9200 Series also offers full support for PoE+, power and fan redundancy, stack bandwidth up to 160 Gbps, modular parent links, and Layer 3 features.

• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Switch type: Managed
• Switch layer: L3
• MIB support: BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB,CISCO-BULK-FILE-MIB,CISCO-CABLE-DIAG-MIB,CISCO-CALLHOME-MIB,CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB,CISCO-CONFIG-COPY-MIB,CISCO-CONFIG-MAN-MIB,CISCO-DEVICE-LOCATION-MIB,CISCO-DHCP-SNOOPING-MIB,CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB,CISCO-ENTITY-FRU-CONTROL-MIB,CISCO-ENTITY-SENSOR-MIB,CISCO-ENTITY-VENDORTYPE-OID-MIB,CISCO-ERR-DISABLE-MIB,CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB,CISCO-FTP-CLIENT-MIB,CISCO-HSRP-EXT-MIB,CISCO-HSRP-MIB,...
• ARP inspection: Yes
• Traffic classification: Yes
• Configuring Location Settings (CLI): Yes
• Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
• Basic switching RJ-45 Ethernet ports quantity: 24
• Power connector: AC-in jack
• Flow control support: Yes
• Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• VLAN support: Yes
• Full duplex: Yes
• Copper ethernet cabling technology: 10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T
• 10G support: Yes
• Spanning tree protocol: Yes
• IP routing: Yes
• Routing entries: 3000
• Jumbo frames support: Yes
• MAC address table: 16000 entries
• Switching capacity: 128 Gbit/s
• Forwarding rate: 95.23 Mpps
• Jumbo frames: 9198
• Packet buffer memory: 6 MB
• Security algorithms: 128-bit AES
• Access Control List (ACL): Yes
• Multicast support: Yes
• IPv4 multicast entries: 3000
• IPv6 multicast entries: 1500
• Multicast MAC address table: 1000 entries
• Management protocols: SNMPv1/v2c/v3
• Routing protocols: CDP,EIGRP,OSPF,RIP,VRRP
• Product colour: Grey
• Certification: RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1
• Electromagnetic compatibility: 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
• Internal memory: 2000 MB
• Flash memory: 4000 MB
• Memory type: DRAM
• AC input frequency: 50 - 60 Hz
• AC input voltage: 100 - 240 V
• Power consumption (typical): 600 W
• Power consumption (max): 740 W
• Input current: 1.6 - 0.7 A
• Number of power supply units: 1
• Power supply included: Yes
• Power over Ethernet plus (PoE+) ports quantity: 24
• Power over Ethernet (PoE): Yes
• Operating temperature (T-T): -5 - 45 °C
• Operating relative humidity (H-H): 5 - 90 %
• Storage temperature (T-T): -40 - 70 °C
• Operating altitude: 0 - 3000 m
• Width: 445 mm
• Depth: 288 mm
• Height: 44 mm
• HS code: 85176990
