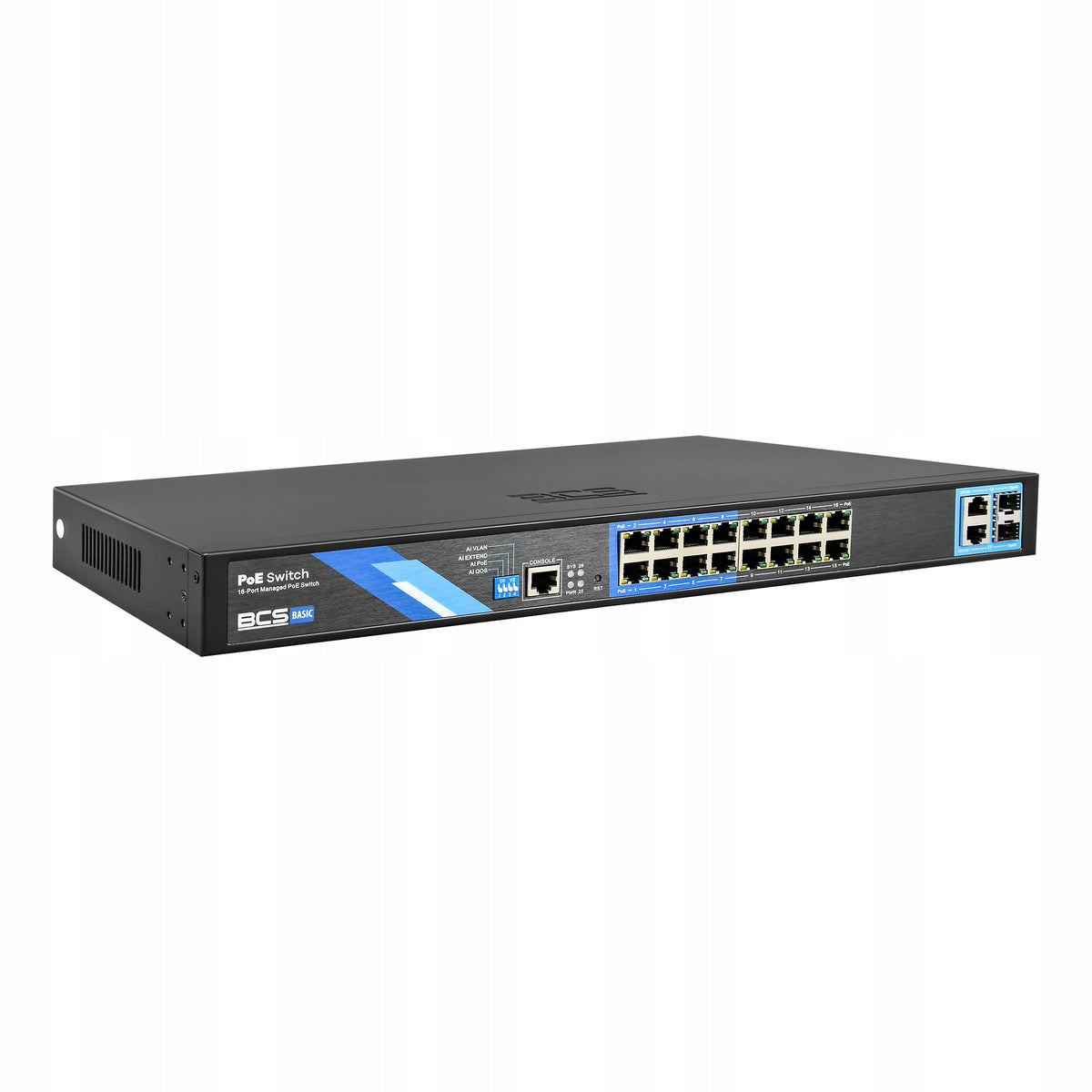

Tinklo jungiklis BCS-B-SP1602G-2SFP-M, 18 prievadų, PoE

Trumpai apie prekę

Prekė: Tinklo jungiklis BCS-B-SP1602G-2SFP-M, 18 prievadų, PoE. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 5904890705852

Item code: BCS-B-SP1602G-2SFP-M

The switch is equipped with 16 PoE 10/100Mbps ports compliant with 802.3 af/at standards, providing up to 30 W of power for connected devices. This allows you to power many BCS IP cameras. The switch provides high-quality performance, advanced QoS support, Layer 2 network management features, and static routing. Two Gigabit RJ45 or SFP ports enable stacking. The metal housing with the mounting bracket allows the switch to be installed in a rack cabinet. Combining all these functions, the device is ideal for use in medium and small monitoring systems.

Characteristic:

• 18 port managed PoE switch
• 4 working modes: AI VLAN, AI EXTEND, AI PoE, AI QoS
• Standard IEEE802.3af/at
• Maximum power up to 30W for a single PoE port
• 16 100Mbps PoE ports
• 2 Gigabit RJ45 uplink ports
• 2 SFP Gigabit fiber ports
• Management console RJ45 port
• Built-in web service
• MDI/MDIX function
• Transmission up to 250m
• VLAN function
• reset button
• Metal housing
• Can be mounted in a 1U RACK cabinet
• Cooling fan inside the case
• Power supply 100~240V AC

Specification:

• Ports 16 × RJ45 PoE 100Mbps + 2 × RJ45&SFP Gigabit
• Uplink ports (MDI/MDIX) 2 x RJ45&SFP Gigabit
• 10/100/1000Mbps half-duplex, full-duplex, auto-negotiation
• Standard IEEE802.3af/at
• 5.36Mpps packet forwarding
• Bandwidth 7.2Gbps
• Maximum power 30W for a single PoE port (total power 150W)
• AI VLAN mode Ports 1~16 are isolated from ports 17, 18
• AI EXTEND mode Ports 1~8 support transmission up to 250m (cat5e, cat6) with speed limited to 10Mbps
• AI QOS Quality Of Service mode - video packet prioritization
• AI PoE mode Monitoring of ports that power PoE devices and automatic restart by cutting off power when detecting an unresponsive device
• LED status PWR(solid red): switch power supply connected LINK/ACT(green): PoE device connected(yellow): PoE powered device SYS(green flashing): The system is working properly
• Management system functions System info, global info, statistic info, log info, port manage, port config, port isolate, port mirror, port limit, storm control, port energy saving, poe manage, poe port config, device power supply, timing supply config, poe ai config, layer2 manage, mac address table, vlan config, link aggregation, mstp config, loop protection, dhcp snooping, igmp snooping, 802.1x config, advanced manage, qos config, acl config, snmp config, rmon config, lldp config, ntp settings, anti attack, system manage, user settings, network settings, service settings, config management, firmware upgrade, diagnostics test, system restart
• PoE pin 1.2(+); 3.6(-)
• Power supply 100~240V AC 50/60Hz
• Dimensions 440×180×44mm
• Weight 2.2kg
• Operating conditions 0°~40°C, 10%~90%RH
• Login 192.168.254.1 admin:admin
