Tinklo jungiklis BCS-B-SP08G02G, 8x PoE, 2x Uplink, 96W, Gigabit

Trumpai apie prekę

Prekė: Tinklo jungiklis BCS-B-SP08G02G, 8x PoE, 2x Uplink, 96W, Gigabit. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 1429

BCS

10-Port PoE Switch

Series: BCS Basic

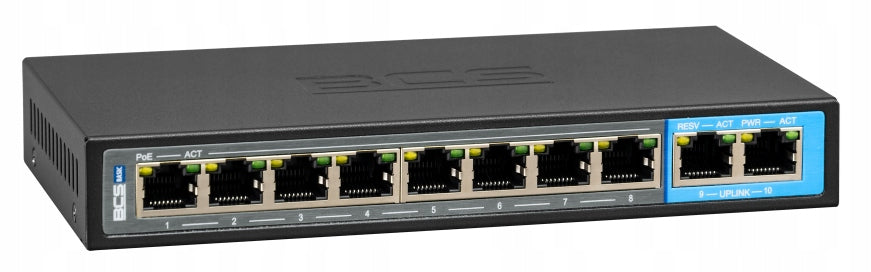

Model: BCS-B-SP08G02G

Switch PoE BCS-B-SP08G02G is a powerful and compact network device designed to expand LAN networks and power PoE devices, such as IP cameras or access points. Equipped with 8 gigabit PoE ports and 2 uplink ports, it is ideal for small and medium-sized installations – office, home and video surveillance. It supports exPoE technology, enabling data transmission and power supply up to 250 meters.

The most important advantages and features

• 8 10/100/1000 Mbps PoE ports with IEEE 802.3af/at support
• 2 gigabit uplink ports for communication with your router or next switch
• Total PoE power 96 W – up to 30 W per port
• EXTEND mode – data and PoE power transmission up to 250 m
• VLAN mode – PoE port isolation for added security
• QoS – priority for video packages (e.g. from IP cameras)
• PoE Watchdog mode – automatic restart of suspended devices
• Compact desktop enclosure – easy installation in the office, home or telecommunication cabinet

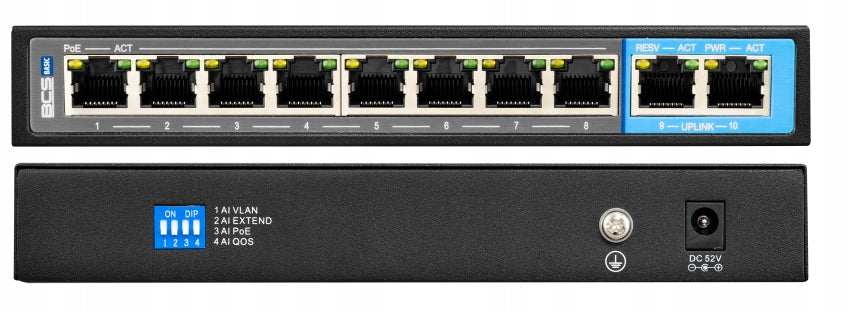

• Intuitive LED signaling for each port

Detailed technical specification

Ports and standards

• 8× RJ45 PoE ports 1Gbps (10/100/1000 Mbps, auto-negotiation, auto MDI/MDIX)
• 2× RJ45 uplink ports 1Gbps
• Support standards: IEEE 802.3af/802.3at
• Switching bandwidth: 20 Gbps
• Packet forwarding: 14.8 Mpps

PoE power

• Total PoE power: 96 W
• Maximum power per port: 30 W
• PoE Pin: 1,2(+), 3,6(-)
• Automatic restart of ports with suspended devices (PoE mode)

Network functions and management

• STANDARD mode: transmission range up to 100 m
• EXTEND mode: transmission up to 250 m at 10 Mbps (Cat5e/Cat6 cable)
• VLAN mode: ports 1 to 8 isolated from each other – increased security
• QoS (Quality of Service) mode: prioritizing transmission for video devices
• Lack of network management – unmanaged switch

Security

• Port isolation in VLAN mode
• PoE monitoring and control – securing end devices

Physical parameters and power supply

• Power supply: 52V DC, 1.85A
• Dimensions: 184×94×27 mm
• Weight: 0.8 kg
• Housing: desktop
• Working conditions: 0°C~+40°C, humidity up to 90% RH
• LED indicators: power supply (PWR), network activity (LINK/ACT), PoE

Explanation of technical abbreviations and terms

• PoE (Power over Ethernet) – technology for transferring power and data with one network cable
• IEEE 802.3af/at – PoE standards for powering devices up to 15,4 W and 30 W respectively
• Uplink – a port used to connect a switch to a router or other switch
• QoS (Quality of Service) – a function of assigning priority to network traffic (e.g. video transmission)
• VLAN (Virtual LAN) – a virtual local area network enabling logical separation of network traffic
• EXTEND – mode to increase the range of data transmission and PoE power supply to 250 m
• MDI/MDIX – automatic recognition of the type of network cable
• Mpps (Million packets per second) – number of data packets transmitted per second

PoE 802.3af / 802.3at

Power supply for classic PoE cameras and PoE rotary cameras

The switch supports Power over Ethernet (PoE) technology in 802.3af and 802.3at standards, enabling simultaneous data transmission and powering of IP cameras using a twisted pair cable. PoE and PoE+ standards allow you to power both classic IP cameras and rotary cameras (PTZ) with increased power consumption.

Advantages of Power over Ethernet technology:

• It allows the installation of IP cameras in hard-to-reach places where the installation of standard power supplies is impractical. This allows for a more flexible arrangement of the monitoring system elements.
• It reduces the number of cables needed for the proper functioning of IP cameras, which speeds up the installation process and reduces its costs. All it takes is one cable to transfer data and power.
• The switch automatically detects whether the connected device supports PoE. In case of compatibility, it provides adequate power supply without the need for manual configuration.
• PoE technology includes overload and overvoltage protection mechanisms, which increases the safety and reliability of IP camera power supply.

VLAN mode

Improvement of security and increase transmission range

When VLAN mode is active, PoE ports "cannot see each other", which prevents data from passing between them. This simple procedure significantly increases the safety of work of the entire monitoring system. A third party cannot detach the camera from the network, connect to it on the same cable and try to reconfigure or disable the other cameras.

Another advantage of VLAN mode is the increase of effective transmission range from 100 m to 250 m. Thanks to this, the switch can be used to build a relatively extensive monitoring system. Switching to VLAN mode, however, involves limiting the bandwidth of PoE ports to 10 Mbps.

Store-and-Forward

Stable data transmission

Switch uses standard Store-and-Forward data transmission, commonly used in various network devices. It is characterized by a slightly extended transmission time, but guarantees reliable transmission of packets, which is necessary in IP monitoring systems.

Quality of Service

Providing a continuous quality connection

AI QoS function that allows intelligent management of packet flow. Thanks to this feature, transfer priority is given to packets containing video file data. This allows you to maintain the continuity of video transmission in conditions when there are any losses on the link.

Switch BCS-B-SP08G02G is a practical solution for building or expanding modern network infrastructure with PoE support. With 8 gigabit power ports, automatic restart functions, and VLAN, Extend, and QoS modes, it provides high reliability, transmission security, and ease of use. It is ideal for IP monitoring and office and home networks, offering stable and energy-efficient operation for a long time.

Specifications
