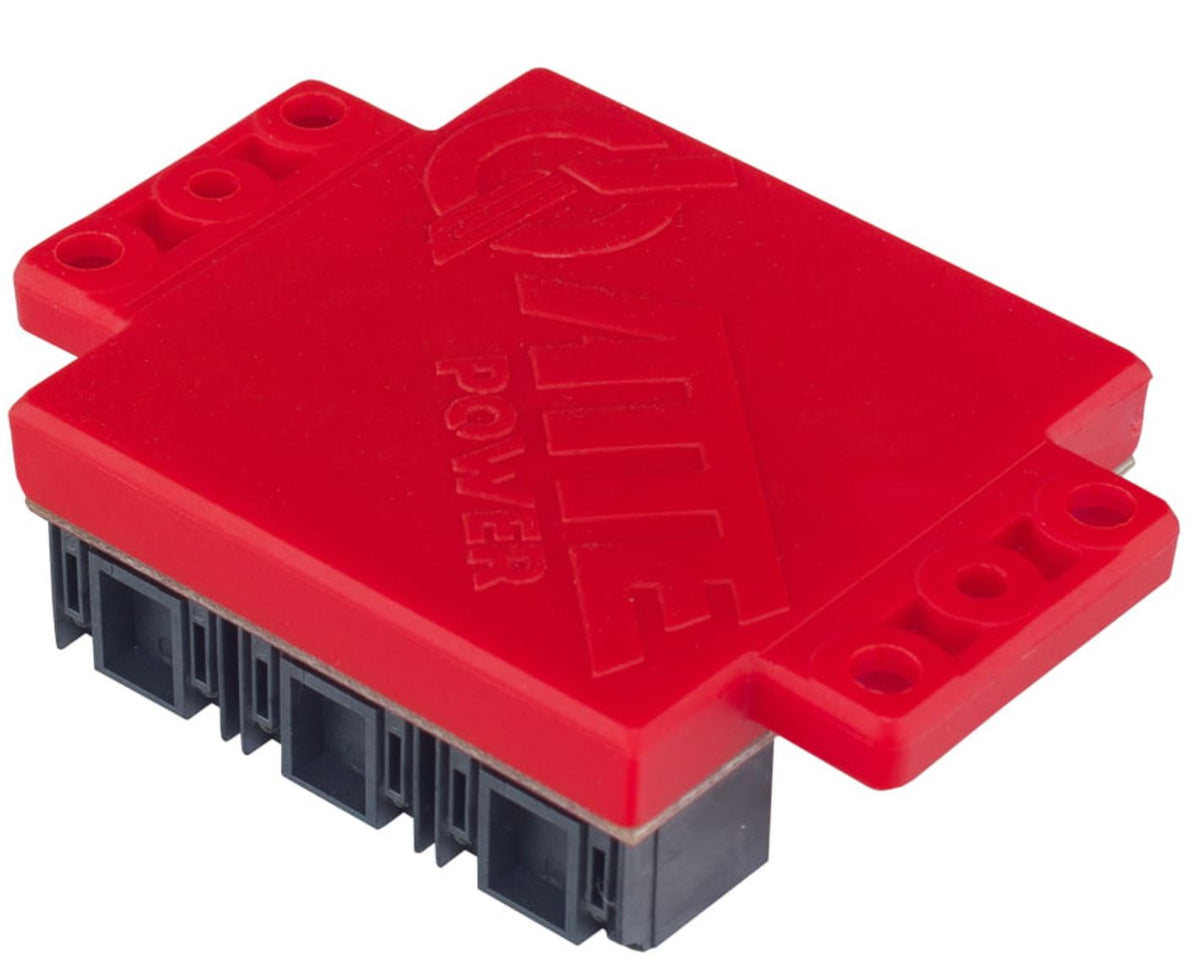

Tinklo jungiklis Atte Power PoE XPOE-3-11A, 3 prievadų

Trumpai apie prekę

Prekė: Tinklo jungiklis Atte Power PoE XPOE-3-11A, 3 prievadų. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Atte
• Modelis: Switch XPOE-3-11A

Item sold:

XPOE-3-11A

The small size of the device allows for convenient installation in an electric can or camera holder

PoE power capability, according to 802.3at standard makes the device even more versatile and easier to install

LAN port 1 acts as an Uplink port and PoE power input (standard: 802.3af, 802.3at or Passive PoE)

LAN 2, LAN 3 ports allow you to power connected devices via Passive PoE

Attention!

In order to power PoE 802.3af/at compliant devices, the input voltage must not be lower than 44V DC

Do not connect devices that are not powered by PoE to LAN 2, LAN 3 ports

LAN ports:

• 1 x RJ45 10/100 Base-T + power input : PoE (802.3af/at) / Passive PoE,
• 2 x RJ45 10/100 Base-T + Passive PoE

LEDs:

LAN, PoE

Transmission rate:

10 / 100 Mbps : 1 LAN port + 2 LAN & PoE ports

Maximum output power:

50 W @ PoE port

Maximum total power:

50 IN

Selected features:

• Switch powered by PoE according to IEEE 802.3af/at standard or via Passive PoE from ATTE brand devices
• Possibility of cascade connection
• The device can act as a LAN extender and PoE power supply
• PoE output voltage is equal to the input voltage
• Sequential start of PoE OUT outputs

Power supply:

• 35 ... 56 V DC - Passive PoE @ LAN 1
• 44 ... 56 V - PoE (802.3af/at) @ LAN 1

Power Consumption:

< 0.5 IN

Weight:

0.04 kg

Dimensions:

51 x 51 x 23 mm

Manufacturer / Brand:

ATTE

Declaration of conformity CE

Manufacturer's data sheet PL

Instructions PL

Specifications
